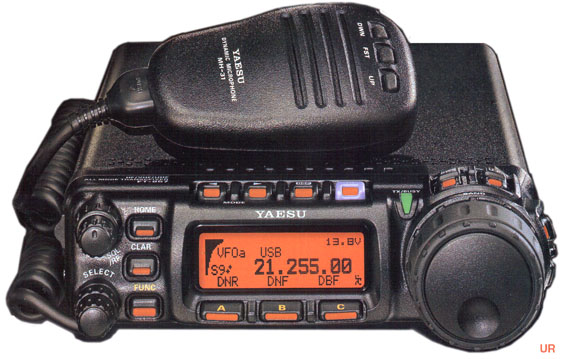

The Yaesu FT-857 is the worlds's smallest HF/VHF/UHF multimode amateur
transceiver. But don't let the diminutive size fool you. The FT-857 is
loaded with features, high power output and a receiver that blends the
renowned performance of the FT-897 and FT-1000 Mark V. It provides coverage
of the 160 to 6 meter bands plus the 144 MHz and 430 MHz bands!
And look at the receive coverage: 0.1-76, 108-174 and 420-512 MHz. The
front panel is removable and it is remotable with the optional YSK-857
separation kit. Refinements include: spectrum display, 32 color display,
beacon mode, keyer, 200 alphanumeric memories and CTCSS.
The FT-857 rear panel features an SO239 input for your HF/6M antenna,
and an SO-239 input for your 2M/440 MHz antenna. Includes MH31A8J
hand mic, mounting bracket, DC power cord, spare ATC fuses.
Click here for detailed specifications.
Features
|
- 160-2 meters +440
- Electronic Keyer
- 200 Alpha Memories
- DSP Option
|
- 100 Watts HF Output
- 50 Watts 2 Meter Output
- 20 Watts 440 MHz Output
- Spectrum Display
|
Options | Options With Photos
Order # |
Item |
Description |
#4547 |
ATAS-120 |
Active tuning motorized mobile antenna. |
#3804 |
ATBK-100 |
VHF-UHF antenna base/counterpoise kit for ATAS-120. |
#0379 |
CT-39 |
Packet cable. |
#3821 |
CT-58 |
Band data cable. |
#3822 |
CT-62 |
CAT Computer interface cable. |
#4187 |
DSP2 |
DSP bandpass filter, auto notch, NR & mic equalizer. |
#4540 |
FC-30 |
Automatic antenna tuner. |
#3631 |
FP-1023 |
Switching power supply 23 amp. 120/240 VAC. |
#3640 |
FP-1030A |
Linear power supply 30 amp. |
#0420 |
MH-36E8J |
DTMF Hand mic |
#4414 |
MH-59A8J |
DTMF remote hand mic. |
#2187 |
TCXO-9 |
High stability option (± 0.5 PPM). |
#1255 |
YF-122C |
Collins 500 Hz CW filter. |
#4188 |
YF-122CN |
Collins 300 Hz CW narrow filter. |
#0803 |
YF-122S |
Collins 2.3 kHz SSB filter. |
#3847 |
YSK-857 |
Head separation kit (19.6 ft.) including mic extension cable. |
|
