The PL-259 connection

Last update
2010-11-02

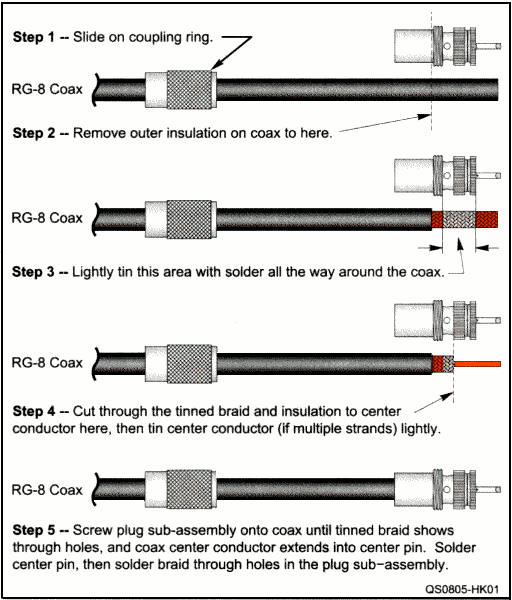

Here is a good reminder for the cutting dimensions to install an PL-259 plug on an RG-8 (or RG-8 sized) coax, making use of the PL-259 body as a measuring gauge. It was proposed by Larry Jennings, WB5IZL, in QST, May 2008.


Voici un excellent pense-bête pour se remémorer les dimensions de coupe pour l'installation d'une fiche PL-259 sur un coaxial RG-8 (ou de taille RG-8), faisant usage du corps de la PL-259 comme calibre. Proposé par Larry Jennings, WB5IZL, dans QST, May 2008.



File : pl259.html - Robert L.E. Billon, 2008-09-13 - Last update: 2010-11-02
