Primary

Extra coil

Secondary

Magnifier coils



The MMOC is cased in a home made cellular box cuted in a sheet of extruded polystyrene 2 cm thick and joined with special glue (Bostik Polystyrene). On the right a single unit capacitor. A string of 15 x 0.6 µF±4% / 2500 V = 40 nF / 37500 V . Measured value is 39.1 nF.
Yet to be proved in use !...


Multi Microwave Oven Capacitor (MMOC)


Protection circuit

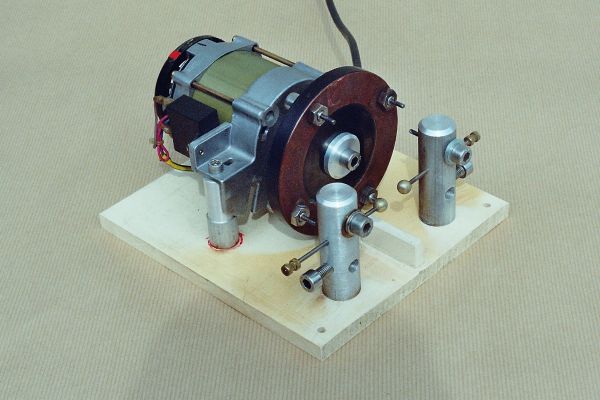

Rotary spark gap
