What are EXTFSK and EXTFSK64?

EXTFSK is an MMTTY plugin that enables FSK keying via a USB-serial adapter and a parallel port. See this page for more information.

EXTFSK uses DLPORTIO for LPT port keying. However, DLPORTIO does not work in the 64-bit Windows OS. EXTFSK64 uses inpout32 instead of DLPORTIO and works on the 32-bit and 64-bit Windows OSes.

Plugin Win32 Win64 45 baud 75 baud Note
USB serial LPT USB serial LPT
EXTFSK
EXTFSK64 Better jitter

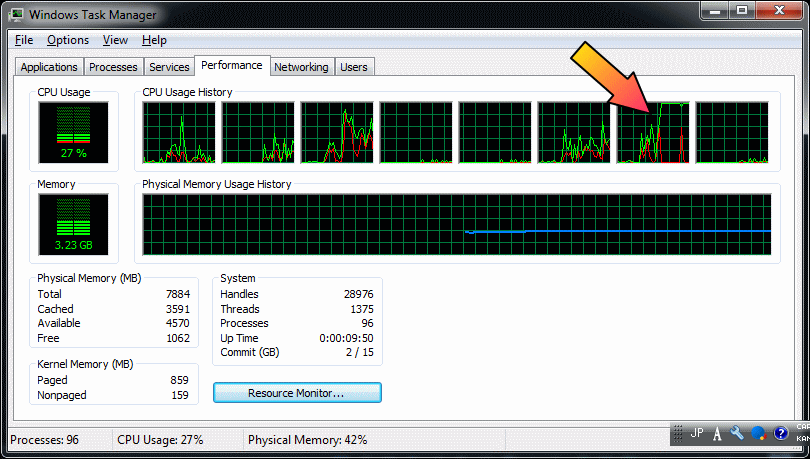

Need more CPU power

Installation

Download the following zip file and unzip it. You will have two files, EXTFSK64.FSK and inpout32.dll. Copy them to the MMTTY folder.

Version Date Note
2.0e June 8, 2014 Updated for MMVARI
2.0d May 22, 2014 First public release version
2.0c May 17, 2014 Fixed minor bugs
2.0b May 12, 2014 First release

LPT setup

Open the MMTTY setup and click on TX tab. Select EXTFSK64 in the drop-down list of PTT&FSK.

Click on OK, then the EXTFSK window is popping up.

Select LPT1 in the drop-down list of Port. Addr value may vary in accordance with the PC environment.

If you have a parallel port that has a non-standard port address (other than 0x378, 0x3bc, or 0x278), open EXTFSK64.ini and add its address (hex value) after LPTADR=. The following example illustrates how the port address 0x1234 is defined in EXTFSK64.ini

[Window]
Top=267
Left=1376
State=0

[Settings]
Port=COM1
FSK=0
PTT=2
InvFSK=0
InvPTT=0

[DirectAccess]
LPTADR=1234

Note


Open source

The source code of EXTFSK64 is available here.


Acknowledgement

I would like to show my greatest appreciation to Joe W4TV and Jim W5IFP for their help.

73 Oba JA7UDE
