CB - Transceivers


The "CB" prefix was used by most of the Citizen's Band transceivers by hallicrafters. When owned by Northrop in the 1970's, the "HTM" prefix was used.


CB-1
CB-1 1-Channel Citizen's Band Transceiver "Little Phone". 11 tubes. Magic eye modulation indicator. Production Year 1959.
Supplementary photos qa


CB-2
CB-2 4-Ch Xmit, 23 Rcv 5W CB transceiver "Little Phone". Switchable 4 channel receive. 7 tubes. Production Year 1960. qa

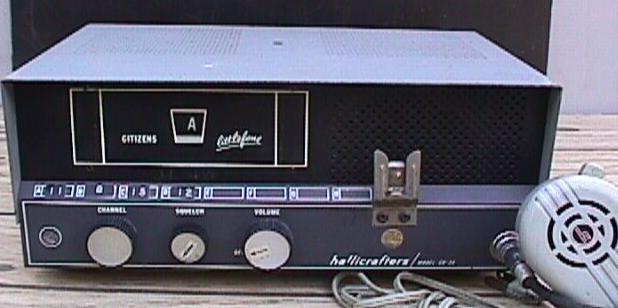

CB-3
CB-3 8-Channel CB transceiver "Little Phone", 5 watt input. Single conversion receiver. Provision for receiver VFO. 7 tubes. Production Year 1961.
Supplementary photos qa


CB-3A
CB-3A Same as CB-3 but double conversion receiver. Production Year 1962-63.
Supplementary photos qa

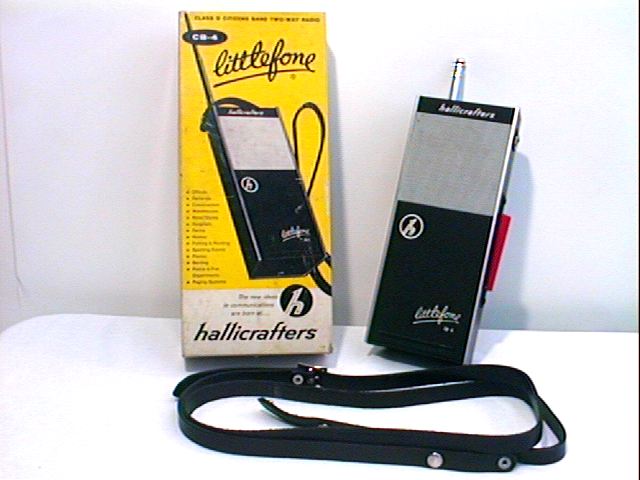

CB-4
CB-4 1-Channel Citizen's Band 100mw Hand-Held "Little Phone". 0.1W input. Production Year 1962. qa


CB-5

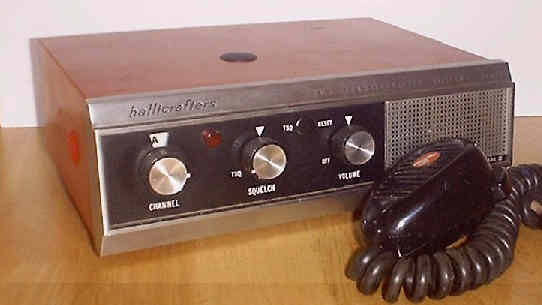

CB-5 6-Channel CB 5W Hybrid Transceiver "Little Phone". 3 tubes 18 transistors. 5 W input. 12VDC power. Production Year 1962.
Supplementary photos qa


CB-6
CB-6 1-Channel Citizen's Band 100mw Hand-Held "Little Phone". 9 transistors. Production Year 1963-64. qa


CB-7
CB-7 6-Ch Xmit, 6 Rcv 5W CB Transceiver "Little Phone". Switchable option for reciver VFO. 5W input. Option for encoder/decoder. Production Year 1965. qa

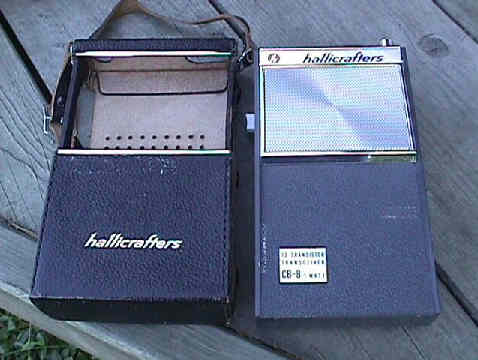

CB-8
CB-8 2-Channel Citizen's Band 1W Hand-Held "Little Phone". 13 transistors. Production Year 1964.
Supplementary photos qa

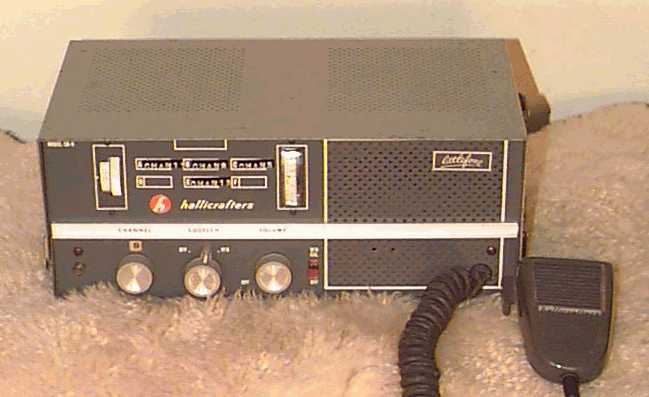

CB-9
CB-9 Same as CB-7, but different panel layout. Production Year 1965.
Supplementary photos qa


CB-10
CB-10 5-Channel 5W Input CB transceiver. 14 transistors. Production Year 1964.
Supplementary photos qa


CB-11
CB-11 1-Channel Citizen's Band 100mw Hand-Held "Little Phone". 10 transistors. Made in Japan. Production Year 1964. qa

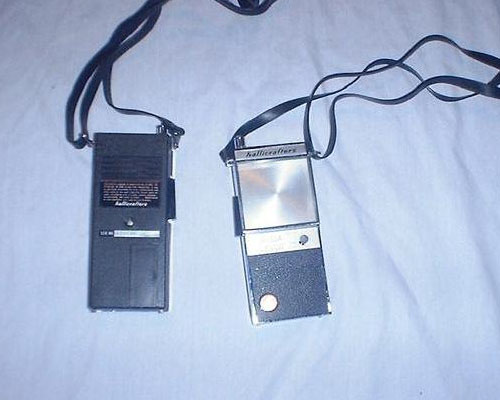

CB-11A
CB-11A 1-Channel Citizen's Band 100mw Hand-Held. 9V battery. Made in Japan. Production Year 1964.
Supplementary photos qa


CB-12
CB-12 12-Ch Xmit, 12 Rcv 5W CB Transceiver. 14 transistors. Production Year 1965. qa


CB-14
CB-14 23-Channel CB 5W Transceiver. 20 transistors. Production Year 1970. qa

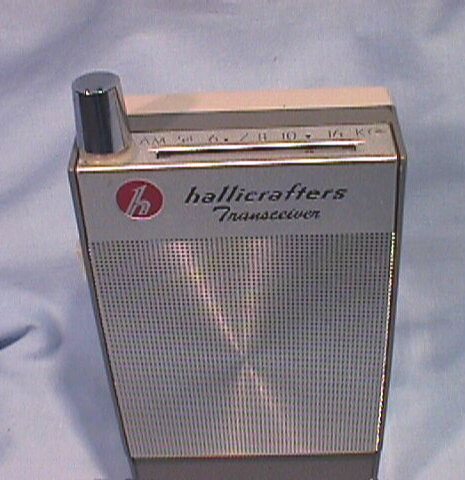

CB-15
CB-15 1-Channel Citizen's Band 100mw Hand-Held. Built-in AM BC receiver. Made in Japan. Production Year 1965. qa


CB-17

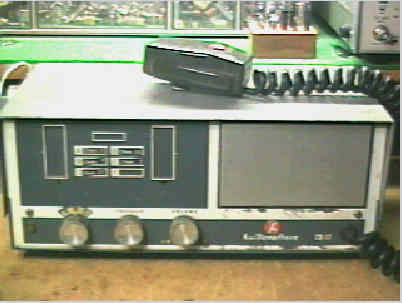

CB-17 6-Ch Xmit, 6 Rcv 5W CB Transceiver. 7 tubes, provision for receiver VFO. Production Year 1965. qa


CB-18
CB-18 2-Channel Citizen's Band 2W Hand-Held. Made in Japan. Production Year 1966.
Supplementary photos qa


CB-19
CB-19 8-Ch Xmit, 23 Rcv 5W CB Transceiver, switchable receiver VFO or X-tal. 7 tubes. Production Year 1966.
Supplementary photos qa


CB-20

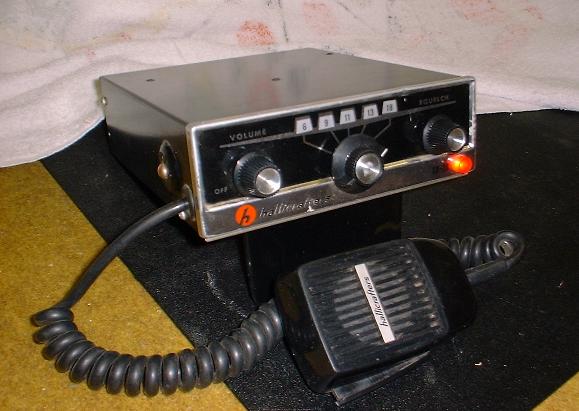

CB-20 5-Channel CB 5W Mobile Transceiver. 12 transistors. Production Year 1966. qa

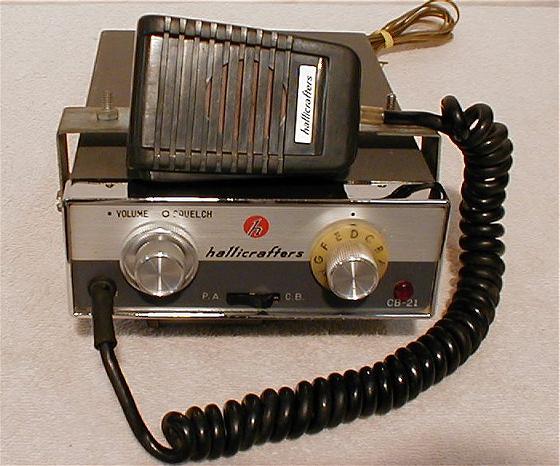

CB-21
CB-21 8-Ch Xmit, 8 Rcv 5W CB Transceiver "Reacter II". Production Year 1967. qa


CB-24

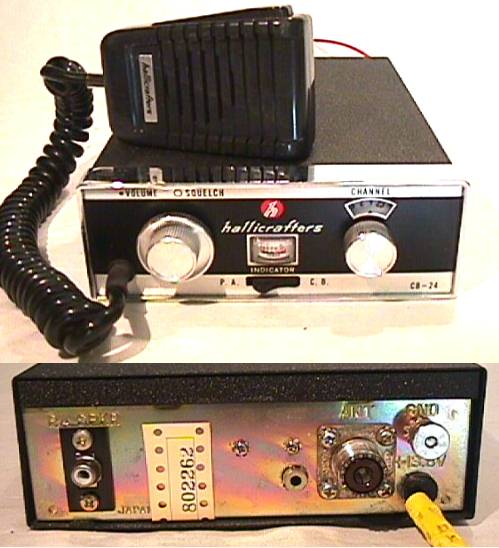

CB-24 23-Channel solid state CB 5W Transceiver. Dual conversion receiver. Production Year 1967-68. qa

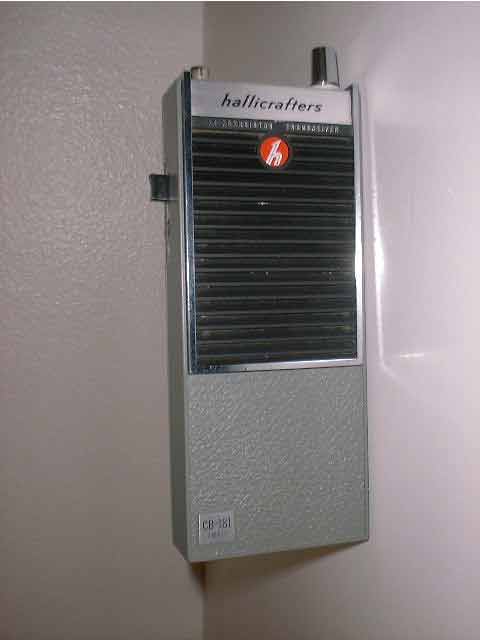

CB-181
CB-181 2-Channel Citizen's Band 2W Hand-Held. 2 watt, 14 transister. Features include, external antenna jack, earphone amd microphone jack, internal/external antenna selector, volume control, press/talk button and squelch control, A/B channel selector. Production Year 1967.
Supplementary photos qa
