CR - receivers

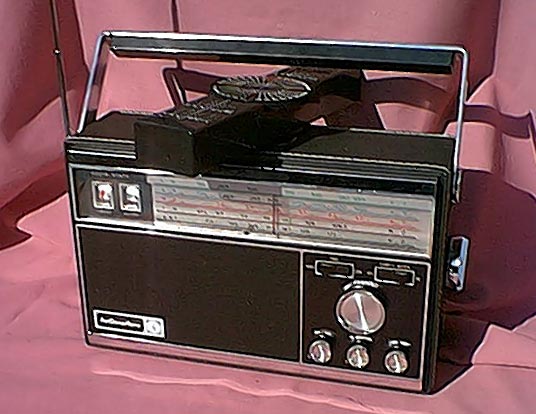

CR-44

CR-44 "RANGER" 5 band AM/SW/FM portable radio with 16 transistors, covering standard AM and FM broadcast bands plus 0.185-0.4MHz, 2-5.2MHz, 152-173MHz (FM). Ferrite rod antenna built into a rotating handle with compass so the radio can be used as direction finder. Telescope whip antenna. IF 455kHz and 10.7MHz, 120VAC and 6VDC power. Made in Japan. Production Year 1969-70.

qa

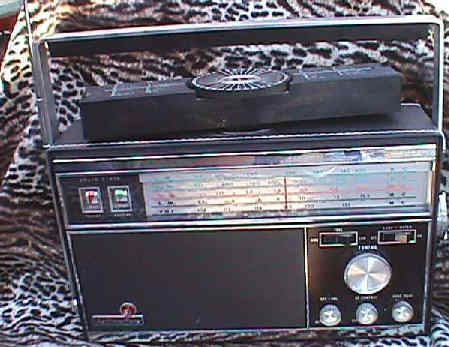

CR-50

CR-50 "SEA AIR" 5 band AM/SW/FM portable radio with 13 transistors, nearly identical to CR-44, covering standard AM and FM broadcast bands plus 0.185-0.4MHz, 2-5.2MHz, 5.2-15.5MHz, 108-135MHz (AM). Ferrite rod antenna built into a rotating handle with compass so the radio can be used as direction finder. Telescope whip antenna. IF 455kHz and 10.7MHz, 120VAC and 6VDC power. Made in Japan. Production Year 1969-70.

qa

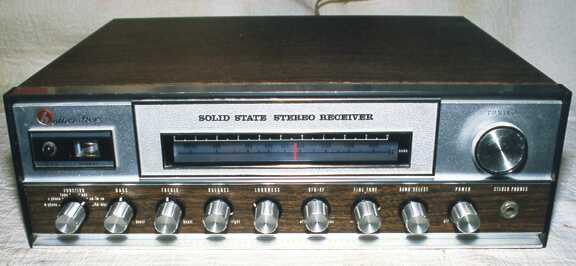

CR-3000

CR-3000 6 band Deluxe AM/SW/FM stereo receiver with 33 transistors, covering 0.19-0.4MHz, 0.535-1.6MHz, 2-4MHz, 5.85-10.3MHz, 11.4-18.2MHz, 88-108MHz. AF output 10 W pr. channel. Built in ferrite rod and cord antenna. IF 455kHz and 10.7MHz, 120VAC power. Made in Japan. Production Year 1968-70.

Supplementary photos qa
