1270Mhz Yagi Antenna German-Deutsch

Build your own antenna for the 23cm band ( 1250Mhz - 1280Mc ) using some aluminium and the following simple design.

build your own 1,2Ghz antenna Due to a large number of reflectors front to back ratio is excellent.

The average gain is about +12 dbd.

Broad bandwith makes this antenna the optimal choice for ATV ( television )

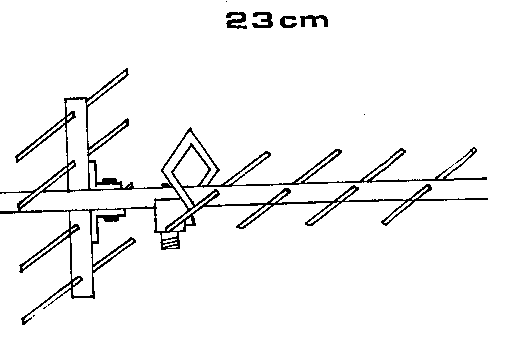

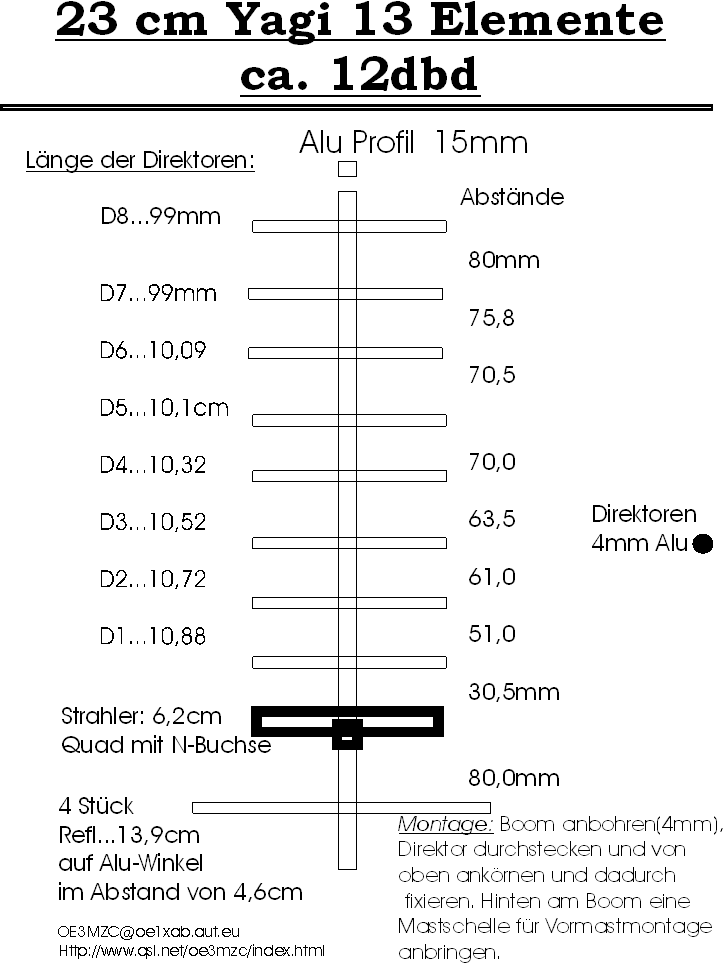

1260-1280Mhz Yagi Antenna construction



2,4Ghz - 13cm band quadrible Quad

with reflector 14dbd gain

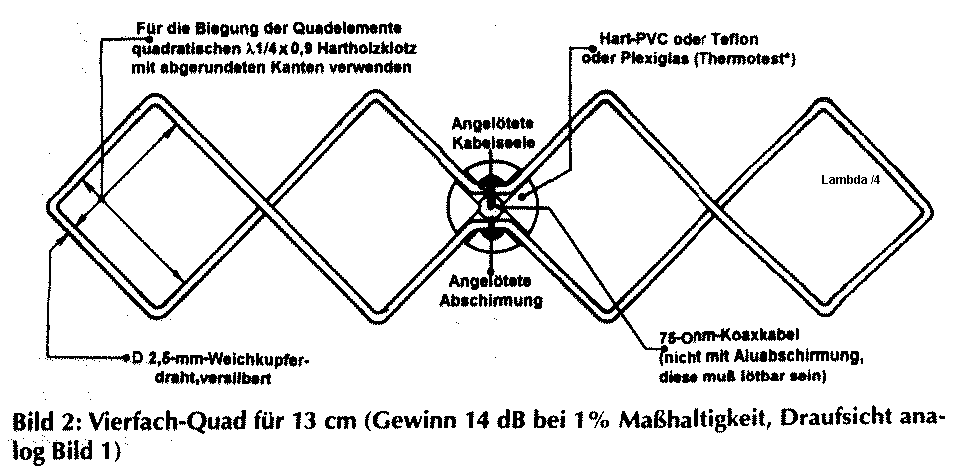

4xQuad on 2400Mhz, 13cm band

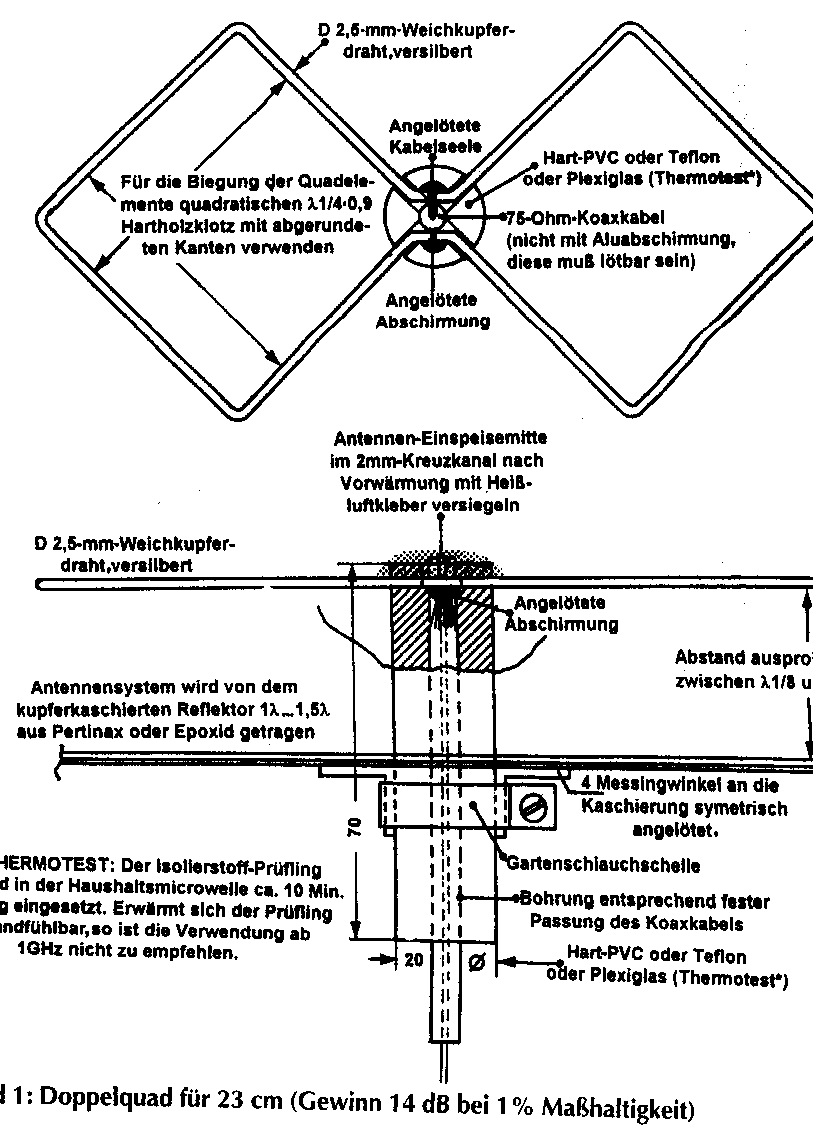

Double Quad antenna

for 23cm band 1,2Ghz

homemade
