A 7 element 6M yagi for E51WL, North Cook Islands
This yagi was built in September 2009 for Warwick E51WL on Penrhyn atoll in the North Cook Islands.
The YU7EF EF0607 design was chosen from the VE7BQH 6M Antenna Comparison Table as it provided a simple 50 ohm feedpoint, reasonably good gain for boom length, a very good radiation pattern, and a wide bandwidth (meaning there would be a tolerance to my home brew construction methods!) It also had to fit on the tapered boom sections that were available.
The yagi was built in 1 day after modifying the element lengths to account for the tapered elements that I used so the antenna would break down into 1.25M lengths for shipping.

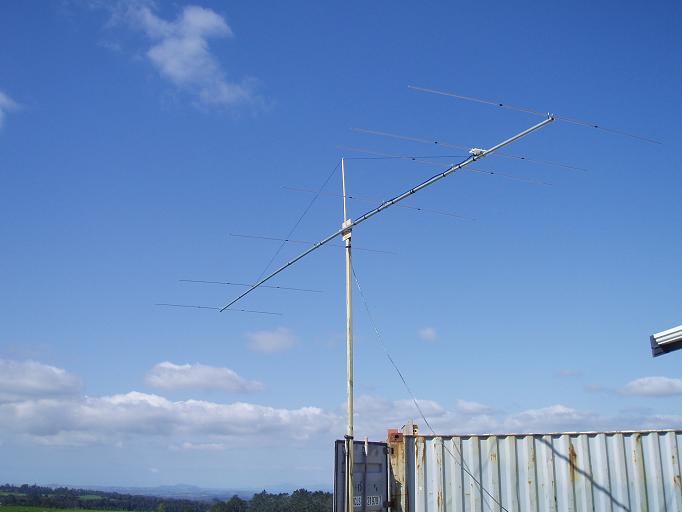

The YU7EF 7 element yagi undergoing tests at ZL1RS
Two EME QSOs were made to verify the yagi's performance. The signal from Lance W7GJ was detected just BEFORE the moon rose over the bay and we completed the QSO before the moon got into the main ground gain lobe of the antenna. Following on was Mick W1JJ whose signal peaked nicely as the moon went through the first ground gain lobe. We exchanged random text messages after the formal QSO.

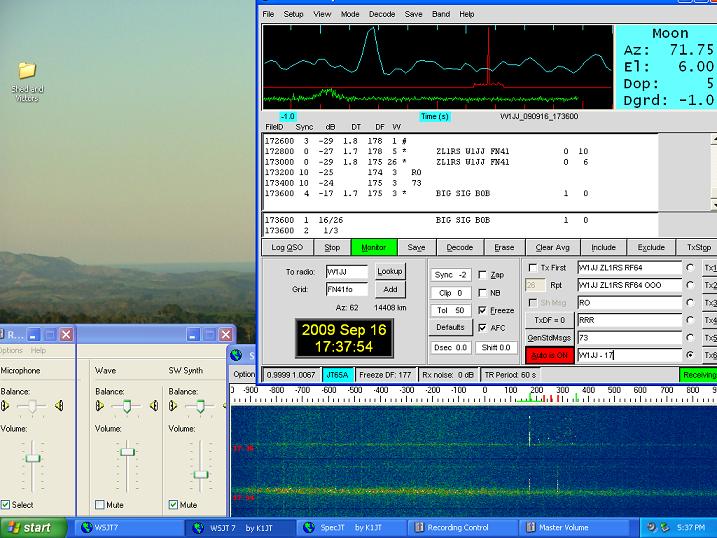

Screen shot of the EME QSO with Mick W1JJ

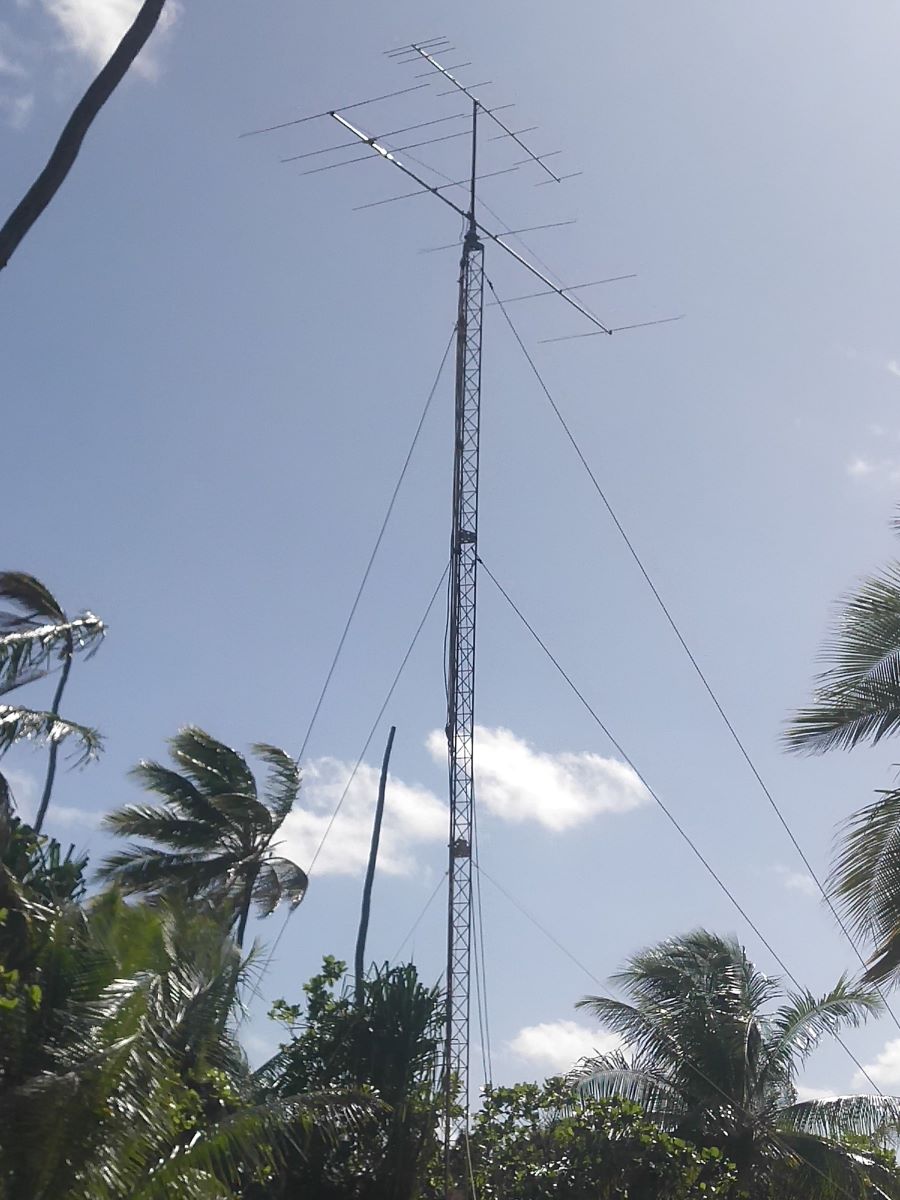

2009/2010 - Warwick installed the 6M Yagi on his 50ft tower at BI00xx
YU7EF 7 element 6M yagi feedpoint ferrite choke balun

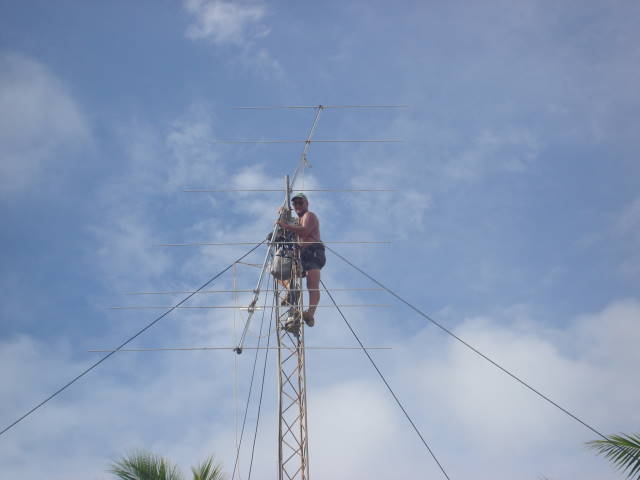

Warwick E51WL installing the YU7EF 7 element 6M yagi

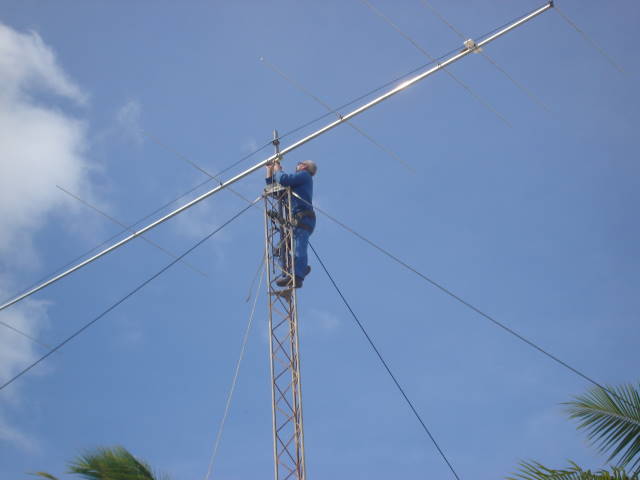

Fixing the boom-to-mast clamp
June 2022 - mounted at 65 feet high on Warwick's extended tower at the new QTH in locator BI01xa -
|
