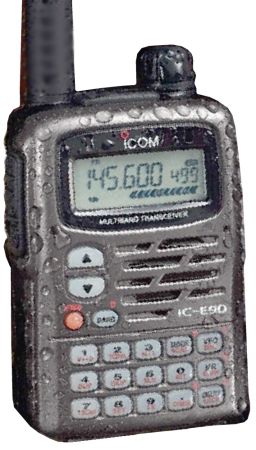

Icom IC-E90
| Frequency range: | TX: 50-54 / 144-146 / 430-440 MHz
RX: 0.495-999.990 MHz |
| Mode: | TX: FM
RX: AM/FM/WFM |
| RF Power output: | Hi: 5/5/5 W, Lo: 0.5/0.5/0.5 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image response: | N/A |
| Voltage: | 5.5-11.5 VDC |
| Current drain: | RX: 65-220 mA, TX: Max 2 A |
| Impedance: | 50 ohms, SMA |
| Dimensions (W*H*D): | 58*87*29 mm |
| Weight: | 240 gr (with BP-217 and antenna) |
| Manufactured: | Japan, 2002-200x |
| Other: | 555 memories in 18 banks. DTMF and CTCSS.
RIT +/- 5 KHz. 10 dB attenuator. Tuned frequency
can be announced in morse code! PC-programmable.
Alpha tags. |
| Related documents: | |
|
