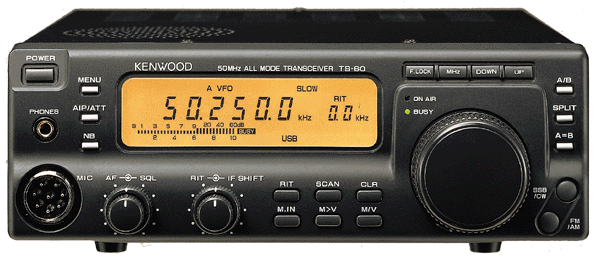

Mount it in a vehicle, take it on a DX-pedition or use it as a permanent base
station transceiver and you'll see that the compact TS-60S packs a hefty punch.
The easy to use menu system adds flexibility and the powerful cooling fan with
heat sink ensures stable operation in any situation.
|
|
 |
|
 |
|
| Antenna Impedance | 50 ohms |
| Dimensions (W x H x D) | 7-1/16 x 2-3/8 x 9-3/16 in (179 x 60 x 233 mm) |
| Frequency Range | TX:
50-54MHz RX: 50-54MHz |
| Frequency Stability | less than ±10x10-6, less than ±0.5x10-6 with SO-2 |
| Microphone Impedance | 600 ohms |
| Mode | A1A (CW), J3E (SSB), A3E (AM), F3E (FM) |
| Operating Temperature Range | -20° - 60°C |
| Power Requirement | 13.8V DC ±15% |
| Weight (approx.) | 6.4lbs (2.9kg) |
 |
|
| Audio Output Impedance | 8 ohms |
| Audio Output Power | Greater than 2 W (500 µV antenna input, 10% distortion) |
| Circutrity FM | Triple conversion system |
| Circutrity SSB, AM, CW | Double conversion system |
| IF Rejection | Greater than 80dB |
| Image Ratio | Greater than 70dB |
| Intermediate Frequency 1st IF | 73.045 MHz |
| Intermediate Frequency 2nd IF | 10.695 MHz |
| Intermediate Frequency 3rd IF | 445 kHz (FM only) |
| RIT Variable Range | ±1.1 kHz (±2.2 kHz in extended mode) |
| Selectivity AM | Greater than 5 kHz (-6 dB), Less than 40 kHz (-60 dB) |
| Selectivity FM | Greater than 12 kHz (-6 dB), Less than 25 kHz (-50 dB) |
| Selectivity SSB | Greater than 2.2 kHz (-6dB), Less than 4.8 kHz (-60 dB) |
| Sensitivity AM | Less than 2µV |
| Sensitivity FM | Less than 0.25µV |
| Sensitivity SSB, CW | Less than 0.16µV |
| Squelch Sensitivity FM | Less than 0.25µV |
| Squelch Sensitivity SSB, CW, AM | Less than 2µV |
 |
|
| Carrier Suppression | more than 40dB |
| Frequency response | 400 - 2600Hz (less than -10dB) |
| Maximum Frequency Deviation | ± 5kHz |
| Modulation AM | Low Level modulation |
| Modulation FM | Reactance modulation |
| Modulation SSB | Balanced modulation |
| RF Output Power AM | 23 W |
| RF Output Power SSB, CW, FM | 90 W |
| Spurious Radiation | less than -50dB |
| Unwanted Sideband Suppression | more than 40dB |
