Amateur HF Transceivers
Kenwood logo

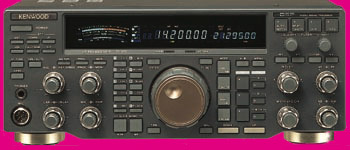

TS870S

Digital signal processing at the IF stage is now a reality with the Kenwood TS-870S HF transceiver. DSP technology uses a dedicated computer chip to convert analog waveforms into digital information in real-time, providing the opportunity to filter and enhance the quality of the signal before it is reconverted into analog form for the human ear. This design uses two state-of-the-art 24-bit 20 MIPS DSP chips that provide for receiving enhancements to bring signals out of the noise. Imagine over 100dB out of pass band attenuation with virtually no signal loss by the DSP filter! Imagine CW bandwidth adjustable to 50 Hz. Advanced speech processing with transmit equalization that will make you the first in pile-ups! Plus complete computer operation and control of the TS-870S is possible with supplied MS Windows™ software and a built-in RS-232C port [DB9].

The built-in automatic antenna tuner works on all bands in both transmit and receive modes. Enjoy future technology now with the TS-870S. Supplied with MC-43S hand mic. The TS-870S requires 13.8 VDC at 20.5 amps. Click here for specifications.

Features
  • 160-10 meters
  • Digital Filtering
  • Beat Canceller
  • 100 Memories
  • Xmit Equalizer
  • 100 Watt Output
  • K1 Logic Keyer
  • RX Ant Input
  • Windows Pgm.
  • Dual VFOs
  • RIT/XIT
  • Optional Voice Synthz.
  • IF Stage D.S.P.
  • Dual Noise Reduction
  • Auto Notch Filter
  • Variable AGC
  • Voice Equalizer
  • RS-232C Port
  • Auto Tuner RX/TX
  • FM Tone Encoder
  • Hi Speed Control
  • Dual VFO Display
  • Quick Memory
  • Optional Record Unit

Options | Options With Photos
Order # Item Description
#0954 DIN 13 Male 13 pin DIN plug for ACC 2 Jack on back panel
#0368 MC-60A A deluxe desk mic with preamp (8 pin).
#1026 MC-80 Desk mic (8 pin).
#1870 MC-90 DSP-compatible desktop mic (8 pin).
#0391 PG-2Z Extra DC power cord.
#1698 PS-52 Heavy duty power supply delivers 13 VDC at 20 amps.
#1597 SO-2 High stability temperature compensated crystal oscillator.
#0694 SP-31 Matching speaker with audio filtration (Hi/Hi/Lo) and dual inputs.
#2982 VS-2 Plug-in voice synthesizer option announces the frequency.
#2195 DRU-3A Digital recording unit.
#1724 LF-30A Low pass filter
