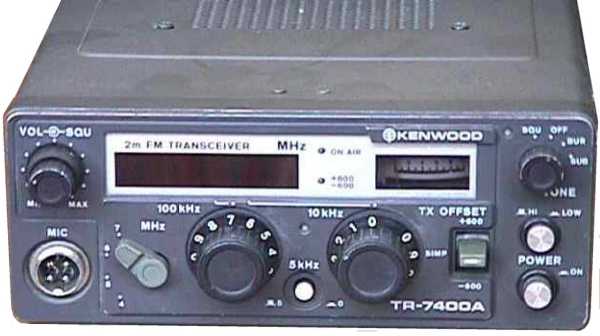

Kenwood TR-7400A
| Frequency range: | 144-148 MHz (5 KHz steps) |
| Mode: | FM |
| RF Power output: | Hi: 25 W, Lo: 5 W |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max 1 A
TX: 4.5-8 A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 182*74*270 mm |
| Weight: | 2.8 Kg |
| Manufactured: | 197x-198x |
| Other: | CTCSS, DTMF and tone burst options |
