为Logger32编一个控制K3的界面

Copyright BA4ALC/BA5CW

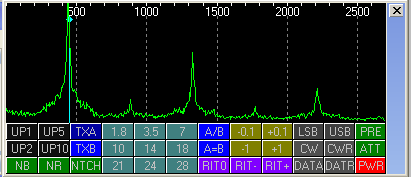

新版的Logger32增加了一些功能，主要是电台控制界面和Spot查询历史界面，为了使远程遥控界面更加简洁，特意为我的K3编制了一个控制界面，平时追DX的功能大都在上面了，也包括了遥控关机按钮，这样大部分时间可以不用打开HRD，节省了桌面空间。

为了方便大家写自己的控制界面，我把我自己的RadioPanel.ini共享到这里，要主要的是窗口位置（我用红色标识了）最好改成适应你自己的位置，我的屏幕比较大，如果你不改窗口位置，有可能你会找不到这个电台控制窗口了，另外，波段控制的方式跟你K3上相关按键的设置相关，如果你没有把K3的数字键设成波段快捷键，那么用我这套macro会得到不是你想要的功能。

[Initialized]
Create Date/Time=Nov 18, 2012 23:33:11
[Spectrum Settings]
Display Type=0
Graticule=Audio
Marker=450
Display Width=2700
Back Color=0
Fore Color=65280
Sound Card=0
Audio Channel=0
FFT Amplitude=1
[frmRadioControlPanel Settings]
Top=12075
Left=19065
Height=2685
Width=6105
Spectrum Visible=True
Form Height=2685
Spectrum Height=1800
Buttons Show=36
[Radio 1 Macros]
Macro #36=$command K31;PS0;$
Macro Caption #36=PWR
Macro BackColor #36=255
Macro MouseOver BackColor #36=8421631
Macro ForeColor #36=12632256
Macro MouseOver ForeColor #36=0
Macro Fontname #36=MS Sans Serif
Macro MouseOver Fontname #36=MS Sans Serif
Macro Fontsize #36=8
Macro MouseOver Fontsize #36=8
Macro Fontbold #36=False
Macro MouseOver Fontbold #36=False
Macro Fontitalic #36=False
Macro MouseOver Fontitalic #36=False
Macro #1=$command K31;FT0;SWT13;FB#split+1#;SWH13;$~~
Macro Caption #1=UP1
Macro BackColor #1=986895
Macro MouseOver BackColor #1=10461087
Macro ForeColor #1=12632256
Macro MouseOver ForeColor #1=0
Macro Fontname #1=MS Sans Serif
Macro MouseOver Fontname #1=MS Sans Serif
Macro Fontsize #1=8
Macro MouseOver Fontsize #1=8
Macro Fontbold #1=False
Macro MouseOver Fontbold #1=False
Macro Fontitalic #1=False
Macro MouseOver Fontitalic #1=False
Macro #13=$command K31;FT0;SWT13;FB#split+2#;SWH13;$~~
Macro Caption #13=UP2
Macro BackColor #13=986895
Macro MouseOver BackColor #13=12566463
Macro ForeColor #13=12632256
Macro MouseOver ForeColor #13=0
Macro Fontname #13=MS Sans Serif
Macro MouseOver Fontname #13=MS Sans Serif
Macro Fontsize #13=8
Macro MouseOver Fontsize #13=8
Macro Fontbold #13=False
Macro MouseOver Fontbold #13=False
Macro Fontitalic #13=False
Macro MouseOver Fontitalic #13=False
Macro #32=$command K31;RD;$~~
Macro Caption #32=RIT-
Macro BackColor #32=16711808
Macro MouseOver BackColor #32=16744703
Macro ForeColor #32=12632256
Macro MouseOver ForeColor #25=0
Macro Fontname #32=MS Sans Serif
Macro MouseOver Fontname #32=MS Sans Serif
Macro Fontsize #32=8
Macro MouseOver Fontsize #32=8
Macro Fontbold #32=False
Macro MouseOver Fontbold #32=False
Macro Fontitalic #32=False
Macro MouseOver Fontitalic #32=False
Macro #2=$command K31;FT0;SWT13;FB#split+5#;SWH13;$~~
Macro Caption #2=UP5
Macro BackColor #2=986895
Macro MouseOver BackColor #2=12566463
Macro ForeColor #2=12632256
Macro MouseOver ForeColor #2=0
Macro Fontname #2=MS Sans Serif
Macro MouseOver Fontname #2=MS Sans Serif
Macro Fontsize #2=8
Macro MouseOver Fontsize #2=8
Macro Fontbold #2=False
Macro MouseOver Fontbold #2=False
Macro Fontitalic #2=False
Macro MouseOver Fontitalic #2=False
Macro #14=$command K31;FT0;SWT13;FB#split+10#;SWH13;$~~
Macro Caption #14=UP10
Macro BackColor #14=986895
Macro MouseOver BackColor #14=12566463
Macro ForeColor #14=12632256
Macro MouseOver ForeColor #14=0
Macro Fontname #14=MS Sans Serif
Macro MouseOver Fontname #14=MS Sans Serif
Macro Fontsize #14=8
Macro MouseOver Fontsize #14=8
Macro Fontbold #14=False
Macro MouseOver Fontbold #14=False
Macro Fontitalic #14=False
Macro MouseOver Fontitalic #14=False
Macro #8=$command K31;DN8;$~~
Macro Caption #8=-0.1
Macro BackColor #8=32896
Macro MouseOver BackColor #8=8454143
Macro ForeColor #8=12632256
Macro MouseOver ForeColor #8=0
Macro Fontname #8=MS Sans Serif
Macro MouseOver Fontname #8=MS Sans Serif
Macro Fontsize #8=8
Macro MouseOver Fontsize #8=8
Macro Fontbold #8=False
Macro MouseOver Fontbold #8=False
Macro Fontitalic #8=False
Macro MouseOver Fontitalic #8=False
Macro #3=$command K31;FT0;$~~
Macro Caption #3=TXA
Macro BackColor #3=10485760
Macro MouseOver BackColor #3=16744576
Macro ForeColor #3=12632256
Macro MouseOver ForeColor #3=0
Macro Fontname #3=MS Sans Serif
Macro MouseOver Fontname #3=MS Sans Serif
Macro Fontsize #3=8
Macro MouseOver Fontsize #3=8
Macro Fontbold #3=False
Macro MouseOver Fontbold #3=False
Macro Fontitalic #3=False
Macro MouseOver Fontitalic #3=False
Macro #15=$command K31;FT1;$~~
Macro Caption #15=TXB
Macro BackColor #15=16711680
Macro MouseOver BackColor #15=16744576
Macro ForeColor #15=12632256
Macro MouseOver ForeColor #15=0
Macro Fontname #15=MS Sans Serif
Macro MouseOver Fontname #15=MS Sans Serif
Macro Fontsize #15=8
Macro MouseOver Fontsize #15=8
Macro Fontbold #15=False
Macro MouseOver Fontbold #15=False
Macro Fontitalic #15=False
Macro MouseOver Fontitalic #15=False
Macro #20=$command K31;DN4;$~~
Macro Caption #20=-1
Macro BackColor #20=32896
Macro MouseOver BackColor #20=8454143
Macro ForeColor #20=12632256
Macro MouseOver ForeColor #20=0
Macro Fontname #20=MS Sans Serif
Macro MouseOver Fontname #20=MS Sans Serif
Macro Fontsize #20=8
Macro MouseOver Fontsize #20=8
Macro Fontbold #20=False
Macro MouseOver Fontbold #20=False
Macro Fontitalic #20=False
Macro MouseOver Fontitalic #20=False
Macro #4=$command K31;FT0;SWT23;SWT11;$~~
Macro Caption #4=1.8
Macro BackColor #4=8421440
Macro MouseOver BackColor #4=16777088
Macro ForeColor #4=12632256
Macro MouseOver ForeColor #4=0
Macro Fontname #4=MS Sans Serif
Macro MouseOver Fontname #4=MS Sans Serif
Macro Fontsize #4=8
Macro MouseOver Fontsize #4=8
Macro Fontbold #4=False
Macro MouseOver Fontbold #4=False
Macro Fontitalic #4=False
Macro MouseOver Fontitalic #4=False
Macro #6=$command K31;FT0;SWT23;SWT13;$
Macro Caption #6=7
Macro BackColor #6=8421440
Macro MouseOver BackColor #6=16777088
Macro ForeColor #6=12632256
Macro MouseOver ForeColor #6=0
Macro Fontname #6=MS Sans Serif
Macro MouseOver Fontname #6=MS Sans Serif
Macro Fontsize #6=8
Macro MouseOver Fontsize #6=8
Macro Fontbold #6=False
Macro MouseOver Fontbold #6=False
Macro Fontitalic #6=False
Macro MouseOver Fontitalic #6=False
Macro #5=$command K31;FT0;SWT23;SWT12;$
Macro Caption #5=3.5
Macro BackColor #5=8421440
Macro MouseOver BackColor #5=16777088
Macro ForeColor #5=12632256
Macro MouseOver ForeColor #5=0
Macro Fontname #5=MS Sans Serif
Macro MouseOver Fontname #5=MS Sans Serif
Macro Fontsize #5=8
Macro MouseOver Fontsize #5=8
Macro Fontbold #5=False
Macro MouseOver Fontbold #5=False
Macro Fontitalic #5=False
Macro MouseOver Fontitalic #5=False
Macro #16=$command K31;FT0;SWT23;SWT24;$
Macro Caption #16=10
Macro BackColor #16=8421440
Macro MouseOver BackColor #16=16777088
Macro ForeColor #16=12632256
Macro MouseOver ForeColor #16=0
Macro Fontname #16=MS Sans Serif
Macro MouseOver Fontname #16=MS Sans Serif
Macro Fontsize #16=8
Macro MouseOver Fontsize #16=8
Macro Fontbold #16=False
Macro MouseOver Fontbold #16=False
Macro Fontitalic #16=False
Macro MouseOver Fontitalic #16=False
Macro #17=$command K31;FT0;SWT23;SWT27;$
Macro Caption #17=14
Macro BackColor #17=8421440
Macro MouseOver BackColor #17=16777088
Macro ForeColor #17=12632256
Macro MouseOver ForeColor #17=0
Macro Fontname #17=MS Sans Serif
Macro MouseOver Fontname #17=MS Sans Serif
Macro Fontsize #17=8
Macro MouseOver Fontsize #17=8
Macro Fontbold #17=False
Macro MouseOver Fontbold #17=False
Macro Fontitalic #17=False
Macro MouseOver Fontitalic #17=False
Macro #18=$command K31;FT0;SWT23;SWT29;$
Macro Caption #18=18
Macro BackColor #18=8421440
Macro MouseOver BackColor #18=16777088
Macro ForeColor #18=12632256
Macro MouseOver ForeColor #18=0
Macro Fontname #18=MS Sans Serif
Macro MouseOver Fontname #18=MS Sans Serif
Macro Fontsize #18=8
Macro MouseOver Fontsize #18=8
Macro Fontbold #18=False
Macro MouseOver Fontbold #18=False
Macro Fontitalic #18=False
Macro MouseOver Fontitalic #18=False
Macro #28=$command K31;FT0;SWT23;SWT33;$
Macro Caption #28=21
Macro BackColor #28=8421440
Macro MouseOver BackColor #28=16777088
Macro ForeColor #28=12632256
Macro MouseOver ForeColor #28=0
Macro Fontname #28=MS Sans Serif
Macro MouseOver Fontname #28=MS Sans Serif
Macro Fontsize #28=8
Macro MouseOver Fontsize #28=8
Macro Fontbold #28=False
Macro MouseOver Fontbold #28=False
Macro Fontitalic #28=False
Macro MouseOver Fontitalic #28=False
Macro #29=$command K31;FT0;SWT23;SWT34;$
Macro Caption #29=24
Macro BackColor #29=8421440
Macro MouseOver BackColor #29=16777088
Macro ForeColor #29=12632256
Macro MouseOver ForeColor #29=0
Macro Fontname #29=MS Sans Serif
Macro MouseOver Fontname #29=MS Sans Serif
Macro Fontsize #29=8
Macro MouseOver Fontsize #29=8
Macro Fontbold #29=False
Macro MouseOver Fontbold #29=False
Macro Fontitalic #29=False
Macro MouseOver Fontitalic #29=False
Macro #30=$command K31;FT0;SWT23;SWT32;$
Macro Caption #30=28
Macro BackColor #30=8421440
Macro MouseOver BackColor #30=16777088
Macro ForeColor #30=12632256
Macro MouseOver ForeColor #30=0
Macro Fontname #30=MS Sans Serif
Macro MouseOver Fontname #30=MS Sans Serif
Macro Fontsize #30=8
Macro MouseOver Fontsize #30=8
Macro Fontbold #30=False
Macro MouseOver Fontbold #30=False
Macro Fontitalic #30=False
Macro MouseOver Fontitalic #30=False
Macro #7=$command K31;SWT11;$
Macro Caption #7=A/B
Macro BackColor #7=16711680
Macro MouseOver BackColor #7=16744576
Macro ForeColor #7=12632256
Macro MouseOver ForeColor #7=0
Macro Fontname #7=MS Sans Serif
Macro MouseOver Fontname #7=MS Sans Serif
Macro Fontsize #7=8
Macro MouseOver Fontsize #7=8
Macro Fontbold #7=False
Macro MouseOver Fontbold #7=False
Macro Fontitalic #7=False
Macro MouseOver Fontitalic #7=False
Macro #19=$command K31;SWT13;$
Macro Caption #19=A=B
Macro BackColor #19=16711680
Macro MouseOver BackColor #19=16744576
Macro ForeColor #19=12632256
Macro MouseOver ForeColor #19=0
Macro Fontname #19=MS Sans Serif
Macro MouseOver Fontname #19=MS Sans Serif
Macro Fontsize #19=8
Macro MouseOver Fontsize #19=8
Macro Fontbold #19=False
Macro MouseOver Fontbold #19=False
Macro Fontitalic #19=False
Macro MouseOver Fontitalic #19=False
Macro #31=$command K31;RT1;RC;$
Macro Caption #31=RIT0
Macro BackColor #31=16711808
Macro MouseOver BackColor #31=16744703
Macro ForeColor #31=12632256
Macro MouseOver ForeColor #31=0
Macro Fontname #31=MS Sans Serif
Macro MouseOver Fontname #31=MS Sans Serif
Macro Fontsize #31=8
Macro MouseOver Fontsize #31=8
Macro Fontbold #31=False
Macro MouseOver Fontbold #31=False
Macro Fontitalic #31=False
Macro MouseOver Fontitalic #31=False
Macro #25=$command K31;SWT33;$
Macro Caption #25=NB
Macro BackColor #25=32768
Macro MouseOver BackColor #25=8454016
Macro ForeColor #25=12632256
Macro MouseOver ForeColor #25=0
Macro Fontname #25=MS Sans Serif
Macro MouseOver Fontname #25=MS Sans Serif
Macro Fontsize #25=8
Macro MouseOver Fontsize #25=8
Macro Fontbold #25=False
Macro MouseOver Fontbold #25=False
Macro Fontitalic #25=False
Macro MouseOver Fontitalic #25=False
Macro #26=$command K31;SWT34;$
Macro Caption #26=NR
Macro BackColor #26=32768
Macro MouseOver BackColor #26=8454016
Macro ForeColor #26=12632256
Macro MouseOver ForeColor #26=0
Macro Fontname #26=MS Sans Serif
Macro MouseOver Fontname #26=MS Sans Serif
Macro Fontsize #26=8
Macro MouseOver Fontsize #26=8
Macro Fontbold #26=False
Macro MouseOver Fontbold #26=False
Macro Fontitalic #26=False
Macro MouseOver Fontitalic #26=False
Macro #35=$command K31;MD9;$
Macro Caption #35= DATR
Macro BackColor #35=5197647
Macro MouseOver BackColor #35=13619151
Macro ForeColor #35=12632256
Macro MouseOver ForeColor #35=0
Macro Fontname #35=MS Sans Serif
Macro MouseOver Fontname #35=MS Sans Serif
Macro Fontsize #35=8
Macro MouseOver Fontsize #35=8
Macro Fontbold #35=False
Macro MouseOver Fontbold #35=False
Macro Fontitalic #35=False
Macro MouseOver Fontitalic #35=False
Macro #24=$command K31;SWH24;$
Macro Caption #24=ATT
Macro BackColor #24=32768
Macro MouseOver BackColor #24=8454016
Macro ForeColor #24=12632256
Macro MouseOver ForeColor #24=0
Macro Fontname #24=MS Sans Serif
Macro MouseOver Fontname #24=MS Sans Serif
Macro Fontsize #24=8
Macro MouseOver Fontsize #24=8
Macro Fontbold #24=False
Macro MouseOver Fontbold #24=False
Macro Fontitalic #24=False
Macro MouseOver Fontitalic #24=False
Macro #27=$command K31;SWT32;$
Macro Caption #27=NTCH
Macro BackColor #27=32768
Macro MouseOver BackColor #27=8454016
Macro ForeColor #27=12632256
Macro MouseOver ForeColor #27=0
Macro Fontname #27=MS Sans Serif
Macro MouseOver Fontname #27=MS Sans Serif
Macro Fontsize #27=8
Macro MouseOver Fontsize #27=8
Macro Fontbold #27=False
Macro MouseOver Fontbold #27=False
Macro Fontitalic #27=False
Macro MouseOver Fontitalic #27=False
Macro #12=$command K31;SWT24;$
Macro Caption #12=PRE
Macro BackColor #12=32768
Macro MouseOver BackColor #12=8454016
Macro ForeColor #12=12632256
Macro MouseOver ForeColor #12=0
Macro Fontname #12=MS Sans Serif
Macro MouseOver Fontname #12=MS Sans Serif
Macro Fontsize #12=8
Macro MouseOver Fontsize #12=8
Macro Fontbold #12=False
Macro MouseOver Fontbold #12=False
Macro Fontitalic #12=False
Macro MouseOver Fontitalic #12=False
Macro #10=$command K31;MD1;$
Macro Caption #10=LSB
Macro BackColor #10=4144959
Macro MouseOver BackColor #10=13619151
Macro ForeColor #10=12632256
Macro MouseOver ForeColor #10=0
Macro Fontname #10=MS Sans Serif
Macro MouseOver Fontname #10=MS Sans Serif
Macro Fontsize #10=8
Macro MouseOver Fontsize #10=8
Macro Fontbold #10=False
Macro MouseOver Fontbold #10=False
Macro Fontitalic #10=False
Macro MouseOver Fontitalic #10=False
Macro #11=$command K31;MD2;$
Macro Caption #11=USB
Macro BackColor #11=4144959
Macro MouseOver BackColor #11=13619151
Macro ForeColor #11=12632256
Macro MouseOver ForeColor #11=0
Macro Fontname #11=MS Sans Serif
Macro MouseOver Fontname #11=MS Sans Serif
Macro Fontsize #11=8
Macro MouseOver Fontsize #11=8
Macro Fontbold #11=False
Macro MouseOver Fontbold #11=False
Macro Fontitalic #11=False
Macro MouseOver Fontitalic #11=False
Macro #22=$command K31;MD3;$
Macro Caption #22=CW
Macro BackColor #22=5197647
Macro MouseOver BackColor #22=13619151
Macro ForeColor #22=12632256
Macro MouseOver ForeColor #22=0
Macro Fontname #22=MS Sans Serif
Macro MouseOver Fontname #22=MS Sans Serif
Macro Fontsize #22=8
Macro MouseOver Fontsize #22=8
Macro Fontbold #22=False
Macro MouseOver Fontbold #22=False
Macro Fontitalic #22=False
Macro MouseOver Fontitalic #22=False
Macro #23=$command K31;MD7;$
Macro Caption #23=CWR
Macro BackColor #23=5197647
Macro MouseOver BackColor #23=13619151
Macro ForeColor #23=12632256
Macro MouseOver ForeColor #23=0
Macro Fontname #23=MS Sans Serif
Macro MouseOver Fontname #23=MS Sans Serif
Macro Fontsize #23=8
Macro MouseOver Fontsize #23=8
Macro Fontbold #23=False
Macro MouseOver Fontbold #23=False
Macro Fontitalic #23=False
Macro MouseOver Fontitalic #23=False
Macro #34=$command K31;MD6;$
Macro Caption #34=DATA
Macro BackColor #34=5197647
Macro MouseOver BackColor #34=13619151
Macro ForeColor #34=12632256
Macro MouseOver ForeColor #34=0
Macro Fontname #34=MS Sans Serif
Macro MouseOver Fontname #34=MS Sans Serif
Macro Fontsize #34=8
Macro MouseOver Fontsize #34=8
Macro Fontbold #34=False
Macro MouseOver Fontbold #34=False
Macro Fontitalic #34=False
Macro MouseOver Fontitalic #34=False
Macro #9=$command K31;UP8;$
Macro Caption #9=+0.1
Macro BackColor #9=32896
Macro MouseOver BackColor #9=8454143
Macro ForeColor #9=12632256
Macro MouseOver ForeColor #9=0
Macro Fontname #9=MS Sans Serif
Macro MouseOver Fontname #9=MS Sans Serif
Macro Fontsize #9=8
Macro MouseOver Fontsize #9=8
Macro Fontbold #9=False
Macro MouseOver Fontbold #9=False
Macro Fontitalic #9=False
Macro MouseOver Fontitalic #9=False
Macro #21=$command K31;UP4;$
Macro Caption #21=+1
Macro BackColor #21=32896
Macro MouseOver BackColor #21=8454143
Macro ForeColor #21=12632256
Macro MouseOver ForeColor #21=0
Macro Fontname #21=MS Sans Serif
Macro MouseOver Fontname #21=MS Sans Serif
Macro Fontsize #21=8
Macro MouseOver Fontsize #21=8
Macro Fontbold #21=False
Macro MouseOver Fontbold #21=False
Macro Fontitalic #21=False
Macro MouseOver Fontitalic #21=False
Macro #33=$command K31;RU;$
Macro Caption #33=RIT+
Macro BackColor #33=16711808
Macro MouseOver BackColor #33=16744703
Macro ForeColor #33=12632256
Macro MouseOver ForeColor #33=0
Macro Fontname #33=MS Sans Serif
Macro MouseOver Fontname #33=MS Sans Serif
Macro Fontsize #33=8
Macro MouseOver Fontsize #33=8
Macro Fontbold #33=False
Macro MouseOver Fontbold #33=False
Macro Fontitalic #33=False
Macro MouseOver Fontitalic #33=False
Macro MouseOver ForeColor #32=0

BA4ALC/BA5CW 2014-09-30
