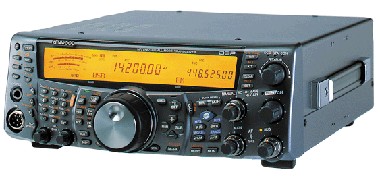

Modificacion Menu de Ajuste Kenwood TS-2000

Autor: KC2MIB Courtnry Traduccion: LU2MCA Carlos

Primero escriba el Software de ajuste!!!

Luego cuando esté listo el Software original regreselo a la Radio

Estas son algunas experiencias de mí mismo y son aconsejables para hacer un muy buen trabajo!!!

Cada vez que cambie algo en el menú no olvide anotar la configuración original de la radio!!!

Es realmente importante, porque cuando algo no está funcionando de la forma esperada

el cambio sera a la posición original.

Buena suerte con la modificacion del menú de ajustes KC2MIB

--------------------------------------------------------------------------------

Asunto: Documento TS-2000 menu ajuste 00 - 126

00 Alc reference voltage 14.1M 14.1M USB

01 146M BPF center voltage Main 146M 145.99M USB

02 Variable capacitor voltage 142M 142.00M USB

03 Variable capacitor voltage 144 144.00M USB

04 Variable capacitor voltage 148M 148.10M USB

05 Variable capacitor voltage 152M 151.90M USB

06 435M BPF center voltage main 440M 440.00M USB

07 variable capacitor voltage 450M 449.80M USB

08 variable capacitor voltage 430M 430.00M USB

09 variable capacitor voltage 420M 420.00M USB

10 146M BPF center voltage Sub 146M 146.00M FM

11 variable capacitor voltage 118M 118.00M FM

12 variable capacitor voltage 132M 132.00M FM

13 variable capacitor voltage 160M 160.00M FM

14 variable capacitor voltage 174M 173.90M FM

15 440M BPF center voltage TX 435M 435.10M USB

16 Variable capacitor voltage 420M 420.10M USB

17 Variable capacitor voltage 440M 439.99M USB

18 Variable capacitor voltage 450M 449.90M USB

19 Variable capacitor voltage HF-TX 14M 14.1M USB

20 10.695M IF filter window 10.695M 1.83M USB

21 455K filter window 455K 1.83M USB

22 SSB IF Gain SSB START 14.2M USB

23 SSB s1 SSB S1 14.2M USB

24 SSB S9 SSB S9 14.2M USB

25 SSB S-full scale SSB S FULL 14.2M USB

26 FM s1 FM S1 29.2M FM

27 FM s full scale FM FULL 29.2M FM------------------------------------- Adjust For S Meter Receiving On Full Signal On 10 & 11 Mtr Bands For FM Receiving.

28 SSB if gain SSB START 50.2M USB To Adjust Use the Rf-gain button and when oke press the + Button Then Write eeprom.

29 SSB s1 SSB S1 50.2M USB

30 SSB S9 SSB S9 50.2M USB

31 SSB S full scale SSB S FULL 50.2M USB

32 FM s1 FM S1 50.2M FM

33 FM S full scale FM FULL 50.2M FM -------------------------------------Adjust For S Meter Receiving On Full Signal On 6 Mtr Bands For FM Receiving.

34 SSB IF gain SSB START 144.2M USB To Adjust Use the Rf-gain button and when oke press the + Button Then Write eeprom.

35 SSB S1 SSB S1 144.2M USB

36 SSB s9 SSB S9 144.2M USB

37 SSB s full scale SSB S FULL144.2M USB

38 FM s1 FM S1 145.8M FM

39 FM full scale FM FULL 145.8M FM --------------------------------------Adjust For S Meter Receiving On Full Signal On 2 Mtr Bands For FM Receiving.

40 FM s1 sub FM S1 145.8M FM

41 FM full scale sub FM FULL 145.8M FM ---------------------------------Adjust For S Meter Receiving On Full Signal On 2 Mtr Bands For FM Receiving !! For

42 am s1 AM S1 120.2M AM the SUB Band !!

43 am s full scale AM FULL 120.2M AM

44 SSB if gain SSB START 438.2M USB

45 SSB s1 SSB S1 438.2M USB

46 ssb s9 SSB S9 438.2M USB

47 ssb s full scale SSB S FULL438.2M USB

48 FM s1 FM S1 438.2M FM

49 FM s full scale FM FULL 438.2M FM------------------------------------Adjust For S Meter Receiving On Full Signal On 70 Cm Mtr Bands For FM Receiving.

50 FM s1 sub FM S1 438.2M FM To Adjust Use the Rf-gain button and when oke press the + Button Then Write eeprom.

51 FM s full scale sub FM FULL 438.2M FM

52 SSB if gain SSB START 1270.2M USB

53 SSB s1 SSB S1 1270.2M USB

54 SSB s9 SSB S9 1270.2M USB

55 SSB s-full scale SSB S FULL1270.2M USB

56 FM s1 FM S1 1270.2M FM

57 fm s full scale FM FULL 1270.2M FM

58 Alt voltage CENTER 1270.2M FM

59 Alt voltage CENTER 148.8M FM

60 SQ threshold voltage FM 50.2M FM

61 SQ threshold voltage FM 145.8M FM

62 SQ tight voltage 144M FM 145.8M FM

63 SQ threshold voltage 144m FM 145.8M FM

64 SQ tight voltage 144m FM 145.8M FM

65 SQ threshold voltage 430m FM 438.2M FM

66 SQ threshold voltage 430m FM 438.2M FM

67 SQ threshold voltage 1200mhz FM 1270.2M FM

68 Power poc Power meter 100W/20W 14.1M USB ------------------- This is the power Regular For All The Bands at Once

69 Power poc power meter 50W/10W 14.1M USB I have the radio now on 150 Watts

70 Power poc power meter 25W/5W 14.1M USB

71 Power poc power meter 10W/2W 14.1M USB

72 Power poc power meter 5W/1W 14.1M USB

73 TX gain for band 1.8M 1.83M USB --------------

74 TX gain for band 3.5M 3.51 USB ----------------

75 TX gain for band 7M 7.01M USB ----------------

76 TX gain for band 10M 10.1M USB ---------------

77 TX gain for band 14M 14.1M USB ---------------

78 TX gain for band 18M 18.1M USB ------------------------------------ e Are Adjust Regulars for when one of these bands after put power up not should have the

79 TX gain for band 21M 21.1M USB --------------- correct power as other bands !

80 TX gain for band 24M 24.9M USB ---------------

81 TX gain for band 28M 28.1M USB ---------------

82 TX gain for band 52M 50.1M USB ---------------

83 HF tx gain for power 50W/10W 14.1M USB

84 Hf tx gain for power 25W/5W 14.1M USB

85 Hf tx gain for power 10W/2W 14.1M USB

86 Hf tx gain for power 5W/1W 14.1M USB

87 ALC meter start START 14.1M USB

88 ALC meter zone max ZONE MAX 14.1M USB

89 FM modulation deviaton WIDE DEV 29.1M FM

90 FM modulation deviaton NARROW DEV29.1M FM

91 Power poc power meter 100W/20W 145.9M USB ------------------- This is for the power up your power on 2.mtr Band on full power

92 Power poc power meter 50W/10W 145.9M USB

93 Power poc power meter 25W/5W 145.9M USB

94 Power poc power meter 10W/2W 145.9M USB

95 Power poc power meter 5W/1W 145.9M USB

96 TX gain for band 146M 145.9M USB

97 144m Tx gain for power 50W/10W 145.9M USB

98 144m Tx gain for power 25W/5W 145.9M USB

99 144m Tx gain for power 10W/2W 145.9M USB

100 144m Tx gain for power 5W/1W 145.9M USB

101 Power poc power meter 50W/20W 438.1M USB ------------------ This is for the power up your power on 70.Cm Band on full power

102 Power poc power meter 25W/10W 438.1M USB

103 Power poc power meter 12,5W/5W 438.1M USB

104 Power poc power meter 5W/1W 438.1M USB

105 tx gain for band 440M 438.1M USB

106 440M tx gain for power 25W/10W438.1M USB

107 440M tx gain for power 12.5W/5W 438.1M USB

108 440M tx gain for power 5W/1W 438.1M USB

109 Power poc power meter 10W 1270.1M USB ------------------------This is for the power up your power on 23 Cm Band When you have instald the modul !

110 Power poc power meter 5W 1270.1M USB

111 Power poc power meter 2.5W 1270.1M usb

112 Power poc power meter 1W 1270.1M USB

113 Tx gain for 1,2 g band 1.2G 1240.1M USB

114 Tx gain for band 1.2G 1270.1M USB

115 Tx gain for 1,2 g band 1.2G 1299.9M USB

116 1,2g tx gain for power 2.5W 1270.1M USB

117 1,2g tx gain for power 1W 1270.1M USB

118 swp protection HF 14.1M CW ------------------

119 swr meter vswr: 3.0 14M 14.1M FM -----------

120 swr meter vswr: 3.0 52M 50.1M CW ----------

121 swr protection 146M 145.9M CW -----------------------------------These Settings are oke Do not Chance!!

122 swr protection 440M 438.1M CW --------------

123 swr protection 1270.1 1270.1M CW -----------

124 EEPROM write ------------------------------------------------------DO NOT FORGET TO WRITE IF YOU CHANCE SOMETHING

125 CHECKSUM

126 Display check/activate

+++++++++++++++++++

!!!! DONT USE THE MAX POWER (250 Watts!!!!!) FOR ALL THE BANDS IT WILL DAMAGE YOUR RADIO!!!
