HF Amateur Transceivers

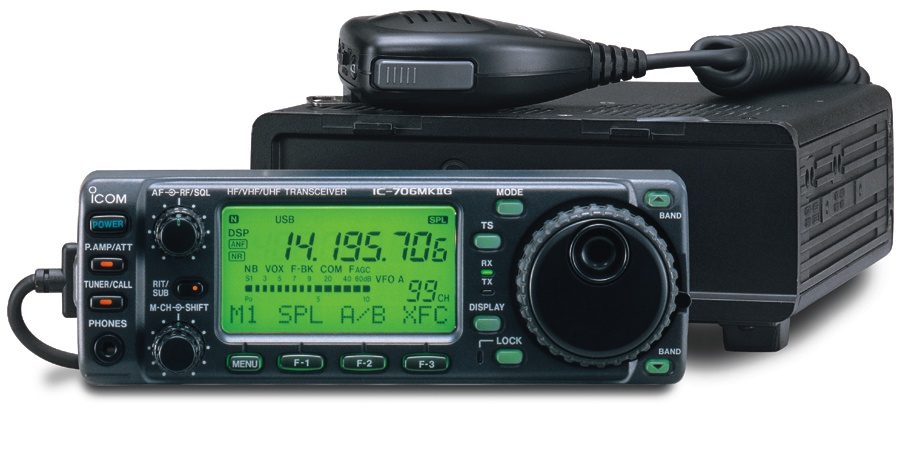

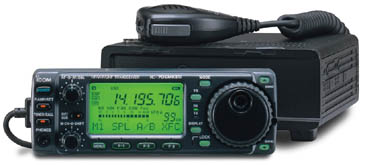

Icom 706MkIIG

The incredibly small ICOM 706 Mark II G all-mode transceiver provides 100 watts on HF and 6 meters and 50 watts on 2 meters plus 20 watts on 440 MHz. It receives from 30 kHz to 199 MHz and from 400 to 470 MHz. It features a removable, remoteable, front panel that allows control of all features. The large LCD display features alphanumeric memory names (9 character) and soft key descriptions. The LCD even supports a simple band scope display. Other advanced features include: IF Shift, RIT, Tone Squelch, Scanning, Noise Blanker, Speech Compressor, Mini Spectrum Scope and Electronic Keyer. This latest version in the 706 series includes the UT-106 DSP module as a standard feature. Despite its compact size (6.56" x 2.28" x 7.88"), it has big, easy to use control dials. With HM-103 hand mic. One or two optional filters may be added. Click here for specifications.

Features
  • .03-199 MHz Receive
  • Alpha memories
  • RIT
  • Preamp/ATT
  • VFO A/B
  • 1 Hz Display
  • IF Shift
  • Scanning
  • S/RF Meter
  • 100 Watts HF+6M
  • 50 Watts 2M, 20 Watts 440
  • 100 Memories
  • All band Multimode
  • Removable head
  • Preamp/RF Atten.
  • Mini Spectrum Scope
  • Electronic Keyer
  • SSB Carrier Point

Options | Options with Photos
Order # Item Description
#2606 AH-2b Mobile antenna. Can be matched for 40 to 6 meters using AH-4.
#3702 AH-4 Automatic antenna tuner 120 watts, 80 to 6 meters.
#3438 AT-180 HF +6M Automatic Tuner.
#2137 CR-282 High Stability Crystal Unit.
#4532 CT-16 Satellite Interface Unit.
#2771 CT-17 CI-V Level Converter.
#2968
FL-101 Filter 250 Hz CW (9 MHz IF).
FL-103 Filter 2.8 kHz SSB (9 MHz IF).
FL-223 Filter 1.9 kHz SSB (9 MHz IF).
FL-232 Filter 350 Hz CW (9 MHz IF).
HM-103 Electret condenser Up-Down hand mic. Mod plug. (same as supplied).
.
HM-118TN Electret condenser DTMF hand mic with Up-Down. Modular plug.
MB-62 Mobile Mounting Bracket for 706 MkIIG or AT-180.
MB-63 Mobile Mounting Bracket for detached Front Panel.
MB-65 Mobile Mounting Bracket for Front Panel [Requires MB-63].
MB-72 Carry Handle.
OPC-581 Front Panel Separation Cable 11 ft (3.5 m).
OPC-587 Front Panel Separation Cable 16 ft (5.0 m).
OPC-589 Mic adapter cable (8 pin to modular).
OPC-599 7+8 to 13 Pin Accessory Cable Adapter..
PS-85 Power Supply 13.8 VDC 20 Amp.
RMK-706 Save with this remote kit that includes: MB-62, MB-63 and OPC-581.
SP-10 External Mobile Speaker.
SM-  8 Desk Mic with Up-Down Buttons. [Requires OPC-589]
SM-20 Desk Mic with Up-Down Buttons. [Requires OPC-589]
UT-102 Voice Synthesizer announces frequency and mode.
SM-706MkIIG Service manual (paper format).
SMCD-706G Service manual (on computer CD).
