DK7ZB- Moxons with Aluminium Tubes |
|

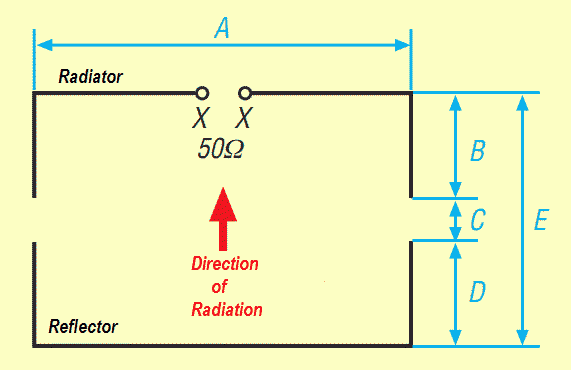

The scheme of the Moxons built with Aluminium tubes |
|
| The beams are constructed with tapered elements. The taper lengths should be maintained for good results. A tuning is possible by shifting the radiator and the reflector by the same lengths. Stacking of two Moxons is possible, but the mounting of the higher Moxon should be 1 m above but with a rotation of 90°. If you mount two Moxons in the same plane you will get a severe detuning of the Moxon with the higher frequency! |
 |
The dimensions for the Moxon-Beams Look for the tapering in the tables below! |
 |
The dimensions for the 50-MHz-Band
|
|
The 50-MHz-Moxon, built by Lutz, DK8UH |
Gain = 4,1 dBd F/B = 30 dB
|
|

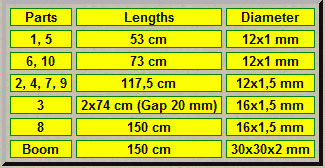

10-m-Band |

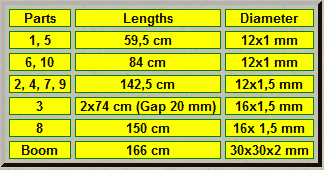

12-m-Band |
|
|
|
 |
 |

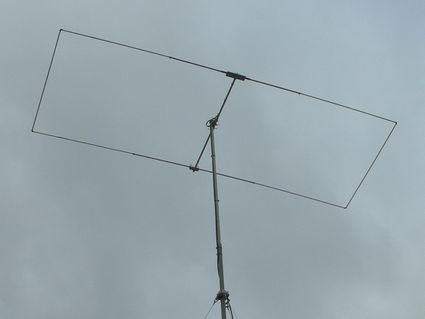

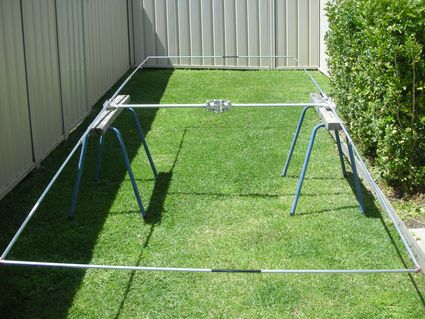

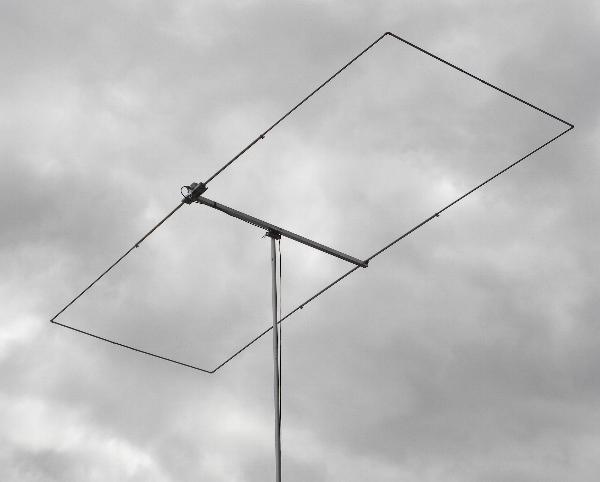

The 10-m-Moxon built by Brad, VK2QO |
|

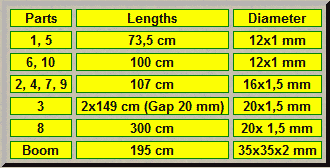

15-m-Band |
 |
The given lengths are from center to center of the directed edges. I use copper fittings with 12 mm. Coat the edges with a varnish against corrosion! |
 |
