by DK7ZB

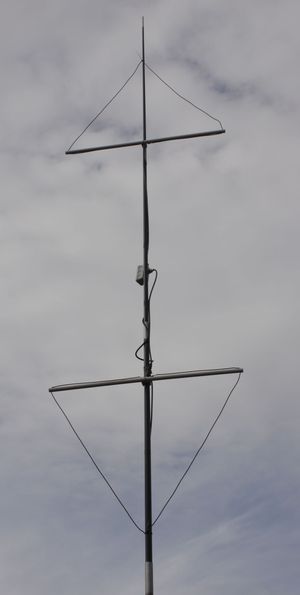

The support is made of two PVC-Pipes with 16 mm Diameter, the wire is 1,5 mm2 copper with PVC-Insulation. Circumference of the Loops is 2100 mm. The stacking is made with two half-wave cables RG59 B/U with 69 cm length. Important: The screen and inner wire of the coax must be on the same side in the two antennas. Stacking distance beween the two horizontal parts is 1000 mm.
