Feeding DJ9BV Style Yagi Antennas

(C) DL4MEA 08/1998

07.08.1998    creation
11.01.1999    changed pictures to jpg due to lower file size

D: Diese Bilder zeigen die von mir für die Speisung meiner Antennen anhand des Beispiels der 70cm BV-OPT.

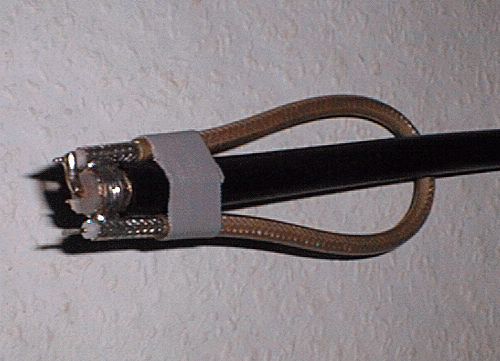

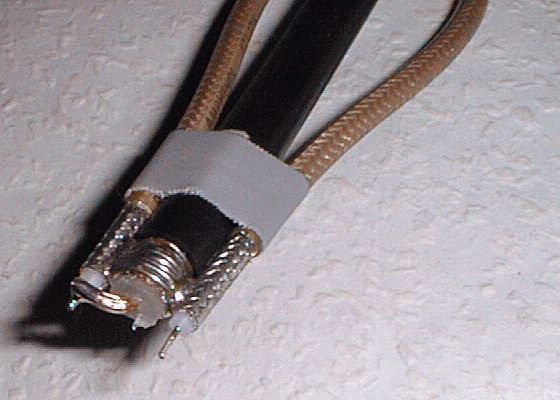

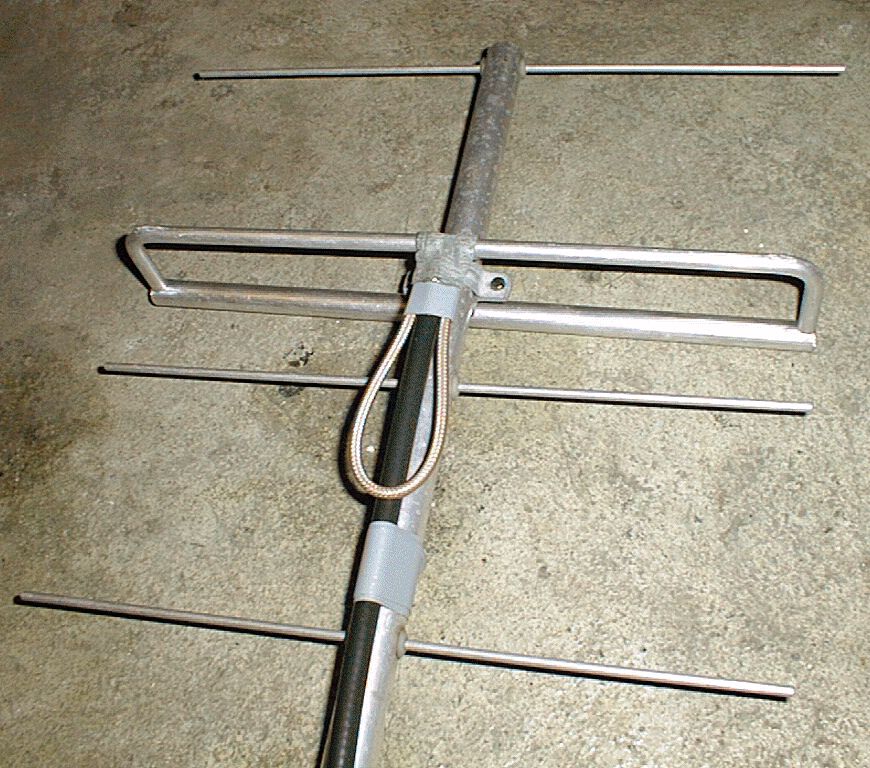

E: These pictures show the feeding circuit of all of my antennas. The picutures were taken on my 70cm BV-OPT, but they are similar on all other yagis.




(click on the pictures to get them in higher resolution)
