Vous disiez logarithmique ?

You said logarithmic ?

by Robert L.E. Billon, F3WM

Last update
2010-11-02

Quand on réalise une application audio, un potentiomètre logarithmique peut s'avérer nécessaire. La loi de Murphy ne subissant aucune exception, vous constatez rapidement que vous n'en disposez ni dans vos tiroirs ni dans votre boîte à fouillis. Ce genre de composant a aussi une fâcheuse tendance à disparaître des catalogues. Ne désespérez pas, la solution est à portée de votre main, vous allez le simuler.

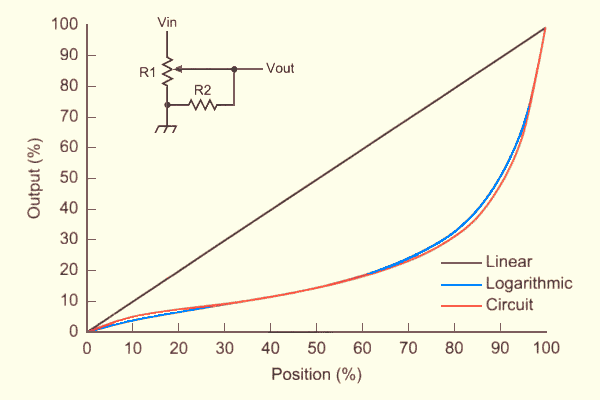

Comme le montre la figure le fait d'ajouter une résistance entre le bas du potentiomètre et le curseur procure une bonne approximation de la courbe théorique. On choisira de préférence des valeurs telles que R2 = R1/10 .

Et voilà... rien de plus simple.

When designing an audio application, a logarithmic potentiometer may be required. As the Murphy law admits no exception, you realize quickly that this component is not part of the content of your drawers or your junkbox. This type of component is also unfortunately going to disappear from the current components catalogs. Do not despair, the solution is at hand, you are going to simulate it.

As shown in the figure the fact of adding a resistor between the low end of the potentiometer and the cursor provides a good approximation of the theoric curve. The good values seem to be such as R2 = R1/10 .

Nothing is more simple.



File: logarithmic.html, Robert L.E. Billon, 2004-04-23 - Last update: 2010-11-02
