I16 - Simple block diagram of receivers

Attempt all the questions.
There is only one correct answer to each question.
Click to show all questions.
When you have completed the quiz press the back button to return to your last page.

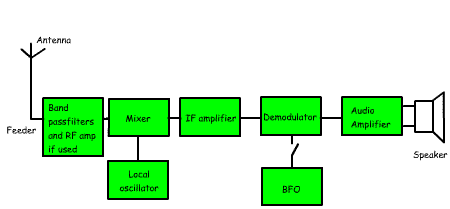

What type of receiver is this block diagram of?
1. A TRF
2. A superhet
3. A crystal diode
4. An double superhet

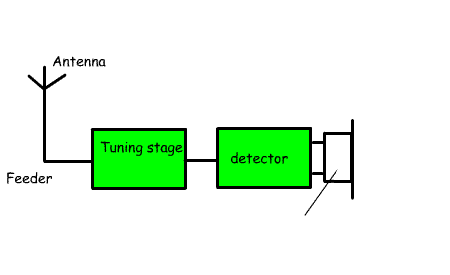

What type of receiver is this?
1. Crystal diode
2. TRF
3. Superhet
4. Double superhet
In a superhet receiver which block produces most gain?
1. RF amplifier
2. Mixer
3. IF amplifier
4. Audio amplifier
In a superhet receiver which of these blocks is responsible for selection of the required frequency?
1. The mixer
2. The audio amplifier
3. The BFO
4. The bandpass filters
At which points could the input for the AGC be taken?
1. The output from the IF amplifier
2. The output from the local oscillator
3. The output from the BFO
4. The output from the RF amplifier
