Installing dump1090-fa
wget https://flightaware.com/adsb/piaware/files/packages/pool/piaware/p/piaware-support/piaware-repository_7.1_all.deb
sudo dpkg -i piaware-repository_7.1_all.deb
sudo apt-get update
sudo apt-get install piaware
sudo piaware-config allow-auto-updates yes
sudo piaware-config allow-manual-updates yes
sudo apt-get install dump1090-fa
sudo reboot
To set your geographical position and range rings
sudo nano /etc/default/dump1090-fa
Modify the decoder options line
DECODER_OPTIONS="--lat 48.19 --lon -03.72 --max-range 360"
restart dump1090-fa
sudo service dump1090-fa start
Other commands
sudo service dump1090-fa stop
sudo service dump1090-fa start

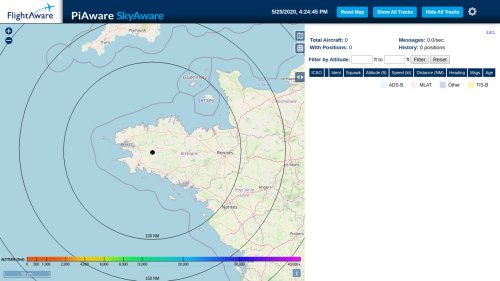

To view the map interface
https://192.168.1.77/dump1090-fa or 192.168.1.77:8080

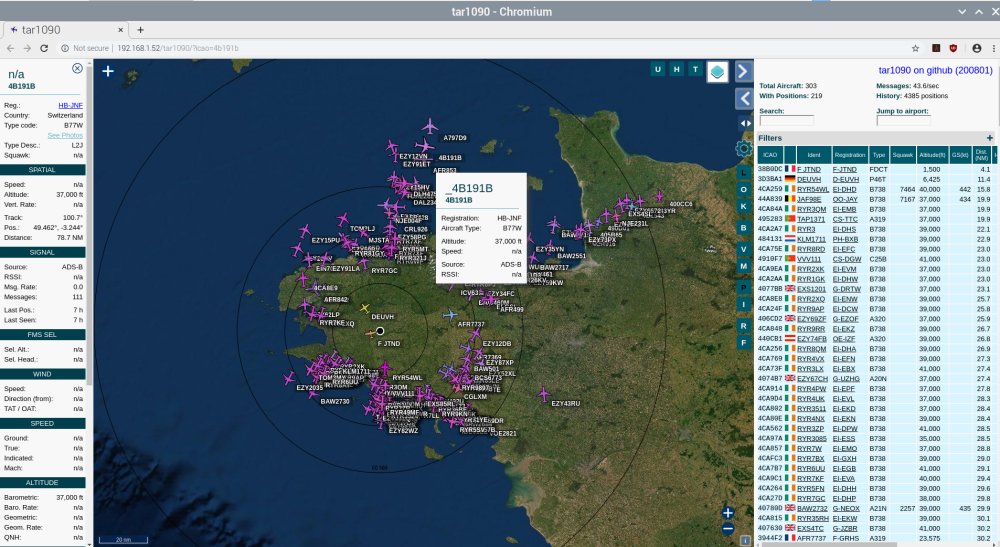

A new interface
-
dump1090/tar
sudo bash -c "$(wget -nv -O - https://raw.githubusercontent.com/wiedehopf/tar1090/master/install.sh)"
To view the map/interface
http://192.168.X.XX/tar1090
Links
https://github.com/wiedehopf/adsb-scripts/wiki/Automatic-installation-for-dump1090-fa
https://github.com/wiedehopf/tar1090
