MICROPHONE CONNECTION INFO.
IF YOU HAVE ANY MICROPHONE INFORMATION YOU WOULD LIKE TO ADD
TO HELP OTHER RADIO AMATEURS-PLEASE E-MAIL ME.
WARNING !
While every effort has been made to check this information for errors, I accept no responsiblity for any
problems that may result from using this information.
KENWOOD MC30-MC35 MICROPHONE.

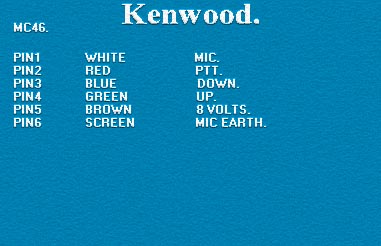

KENWOOD MC46 MICROPHONE.
KENWOOD MC60 MICROPHONE.
KENWOOD TH22A SPEAKER/MIC.
KENWOOD TH78A SPEAKER/MIC.
KENWOOD MODELS.
TS120S-120V-700G-700S-130S-130V-520S-530S-820S-830S-
TR2300-TR2200-TR7200-TR7400A-TR7500
PIN1 MIC
PIN2 PTT
PIN3 PTT/EARTH
PIN4 SCREEN AND EARTH
7 PIN REMOTE PLUG/SOCKET.
TS120-130-140-180-430-440-450-530-570-680-690-830-870-940-950.
PIN1 SPEAKER OUT
PIN2 RELAY COMMON GROUND/EARTH
PIN3 PTT FOR FOOT SWITCH
PIN4 RELAY CLOSED ON TRANSMIT
PIN5 RELAY OPEN ON TRANSMIT
PIN6 ALC INPUT
PIN7 +12VOLTS ON TRANSMIT ( 10 Ma Max )
PLUG SHELL EARTH.
6 PIN ACC PLUG/SOCKET.
TS-450-690-570-850-870-950.
PIN1 SIGNAL GROUND/EARTH
PIN2 TRANSMIT DATA
PIN3 RECEIVE DATA
PIN4 CTS ENABLE TX
PIN5 RTS ENABLE RX
PIN6 N/C
SHELL EARTH
13 PIN ACC2 PLUG.
TS440-450-680-690-570-711-790-811-850-870-940-950
PIN1 N/C
PIN2 N/C
PIN3 RX AUDIO OUT
PIN4 SCREEN FOR PIN3
PIN5 SQUELCH CONTROL OR N/C
PIN6 S/METER OUTPUT
PIN7 N/C
PIN8 CHASSIS/GROUND
PIN9 PTT- STANDARD MIC INPUT IS MUTED
PIN10 N/C
PIN11 MIC INPUT
PIN12 SCREEN FOR PIN 11
PIN13 PTT- STANDARD MIC INPUT IS ACTIVE
SHELL EARTH
TR9000-9030-9130-9300-9500-7700-7730-7800-7850-7930-7950-8400
PIN1 MIC
PIN2 PTT
PIN3 DOWN
PIN6/CENTER EARTH
PIN4 UP
PIN5 NC + 8VOLT SOME MODELS
TR7600-TR7625
PIN1 MIC
PIN2 PTT
PIN3 N/C
PIN4 CHASSIS/GROUND
PIN5 MIC SCREEN
TS-50-60-140-430-440-450-570-660-670-780-930-430-670-711
TS-811-850-870-930-940-950-440-790-680-690
TR7900-7950-50-751-851
TM-201A-201B-401A-TM401B-211-221-231-241-321-331-421-431-441-521-531-541
TM-621-631-701-721-731-2530-2550-2570
TW4000-4100
PIN1 MIC
PIN7.8 SCREEN EARTH
PIN2 PTT
PIN3 DOWN
PIN4 UP
PIN5.6 NC + 8VOLT SOME MODELS
MODULAR MIC PLUG/SOCKET.
TM-251-255-261-451-455-461-641-642-732-733-741-742-941-942
TMG-707.
V7A.
JRC JST-135.
PIN1 MIC UP
PIN2 NC
PIN3 MIC DOWN
PIN4 + 9 VOLTS
PIN5 PTT EARTH
PIN6 PTT
PIN7 MIC EARTH
PIN8 MIC
YAESU- MD-1B8. MH-1B8 . Microphones.
YAESU- YM47. YM49. Microphones.
YEASU- YM50. Microphone.
YAESU- YM34.YM35.YM36.YM37.YM38 . Microphones
YAESU MODELS.
FT736-FT747GX-FT757GX-FT650-FT767-FT890-FT920-FT990-FT990D
FT480R-FT847-FT1000-FT1000D-FT1000MP
PIN1 MIC UP
PIN2 EARTH (+ 5VOLTS FT847-FT920-FT1000MP )
PIN3 DOWN
PIN4 FAST SCAN
PIN5 EARTH
PIN6 PTT
PIN7 SCREEN/EARTH
PIN8 MIC
YAESU FT221R.
PIN1 MIC SCREEN/EARTH
PIN2 MIC
PIN3 PTT
PIN4 EARTH
YAESU FT290R-FT730-FT790R
PIN1 MIC SCREEN/EARTH
PIN2 MIC
PIN3 PTT
PIN4 + 12VOLT ( + 5VOLT FT730 )
PIN5 SPEAKER
PIN6 UP
PIN7 DOWN
YAESU FT708R-FT208R HAND HELD.
PIN1 MIC ( white )
PIN2 SPEAKER ( black )
PIN3 PTT ( red )
PIN4 MIC SCREEN
PIN5 NC
PIN6 SPEAKER ( blue )
YAESU-FT100-FT90-FT8100 ( Modular Plug )
PIN1 MOD/MIC
PIN2 POWER/PTT
PIN3 + 9VOLT
PIN4 EARTH
PIN5 RX DATA
PIN6 TX DATA
YAESU FT100 SERIES DATA SOCKET CONNECTIONS.
YAESU-FT897 ( Modular Plug )
PIN1 DOWN
PIN2 UP
PIN3 + 5VOLT
PIN4 MIC EARTH
PIN5 MIC
PIN6 PTT
PIN7 GROUND
PIN8 FAST SCAN
ICOM MODELS.
IC7400-IC746-IC756PRO-IC7800
PIN1 MIC + DC VOLTS FOR ICOM ONLY MICROPHONE
PIN2 + 8VOLTS 10Ma TO AVOID DAMAGING THE REGULATOR DO NOT SHORT TO GROUND
PIN3 UP/DOWN
PIN4 SQUELCH
PIN5 PTT
PIN6 GROUND
PIN7 MIC SCREEN/EARTH
PIN8 AUDIO OUT
ICOM-IC706-IC706MK2 (Modular Plug )
PIN1 + 8VOLT
PIN2 UP/DOWN
PIN3 AUDIO OUT
PIN4 PTT
PIN5 MIC GROUND
PIN6 MIC
PIN7 GROUND/EARTH
PIN8 SQUELCH
ICOM-IC-271A.IC-271E.
PIN1 MIC
PIN2 REPEATER TONE
PIN3 UP/DOWN
PIN4 N/C
PIN5 PTT
PIN6 EARTH
PIN7 MIC SCREEN
PIN8 N/C
ICOM-IC251E-IC451E
PIN1 MIC ( white. connection at + 9VOLTS above earth )
PIN2 NC
PIN3 NC
PIN4 NC
PIN5 PTT ( red )
PIN6 PTT ( black )
PIN7 MIC SCREEN
PIN8 NC
ICOM SM20 MIC CONNECTIONS.
ICOM IC-HM12 MIC CONNECTIONS.
ICOM IC-HM15 CONNECTIONS.
ALINCO MODELS.
ALINCO DX70-DR150TE
PIN1 MIC
PIN2 PTT
PIN3 DOWN
PIN4 UP
PIN5 + 5VOLT
PIN6 AUDIO OUT ( remote DR150TE )
PIN7 MIC SCREEN/EARTH
PIN8 EARTH
ALINCO DR605 ( Modular Plug )
PIN1 + 5VOLT
PIN2 DOWN
PIN3 N/C
PIN4 PTT
PIN5 MIC EARTH
PIN6 MIC
PIN7 GROUND/EARTH
PIN8 UP
ALINCO 22T/E.
PIN1 MIC
PIN2 PTT
PIN3 DOWN
PIN4 UP
PIN5 + 8VOLT
PIN6 N/C
PIN7 MIC EARTH
PIN8 GROUND
ALINCO EMS-14. - ADONIS AM-508E. -WATSON AM308 MICROPHONES.
YELLOW MIC
SCREEN EARTH (ground)
GREY PTT ( + VOLTAGE FEED ON ADONIS D80 )
BLUE PTT EARTH ON WATSON 308.
PURPLE PTT EARTH (ground)
GREEN MIC UP
ORANGE COMMON (connect to ground)
WHITE MIC DOWN ( + VOLTS WATSON AM-308 )
BLACK MIC DOWN ON WATSON AM-308
RED + VOLTS FEED( PTT ON ADONIS D80 AND WATSON AM-308 )
( more to follow later.)
