HF Station Arrangement
» 8

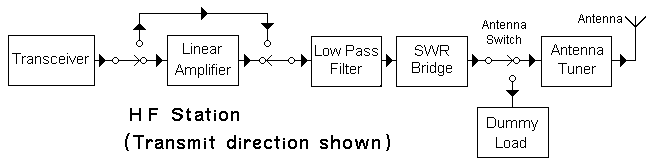

In the block diagram shown, the connection between the SWR bridge and the antenna switch is normally a:
a.
twisted pair cable
b.
coaxial cable
c.
quarter-wave matching section
d.
short length of balanced ladder-line
