HF-Linear Amplifier

VECTRONICS HF600-QSK

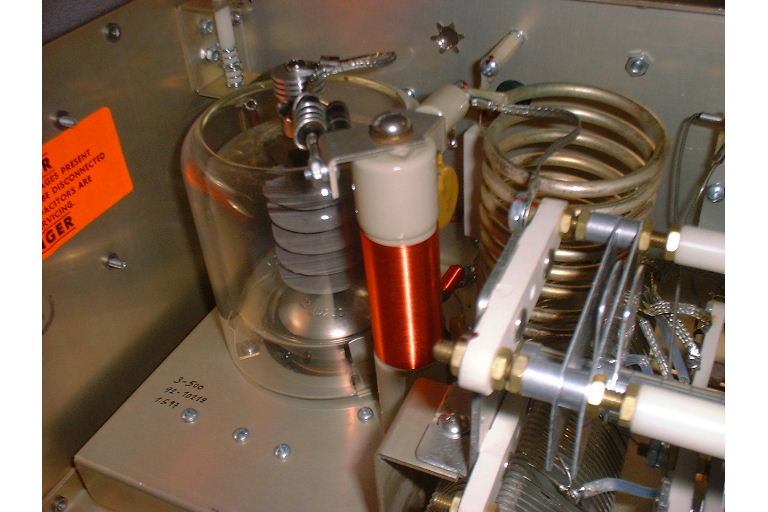

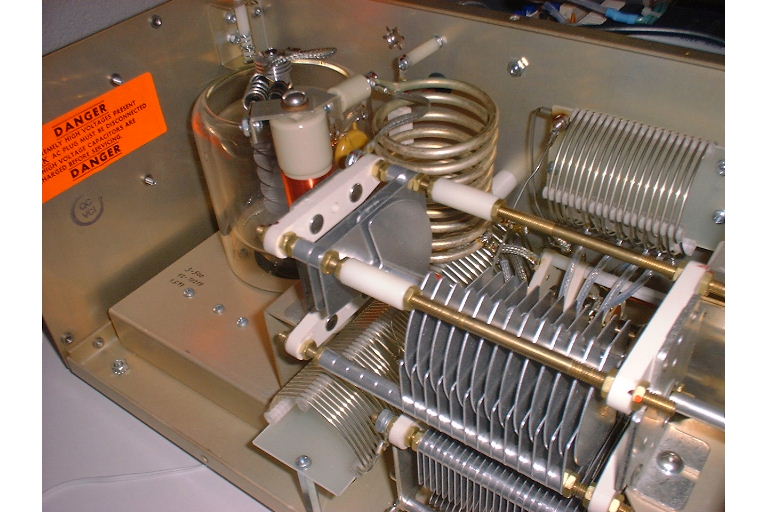

A rugged linear Amplifier with one 3-500Z Amperex tube. The circular cooling
is being established with a glas cylinder. The airflow around the tube will
ensure a proper cooling for long time operation.

Qsk600-1.jpg (83151 Byte)  Qsk600-8.jpg (91214 Byte) Qsk600-9.jpg (98781 Byte)Qsk600-4.jpg (88393 Byte)

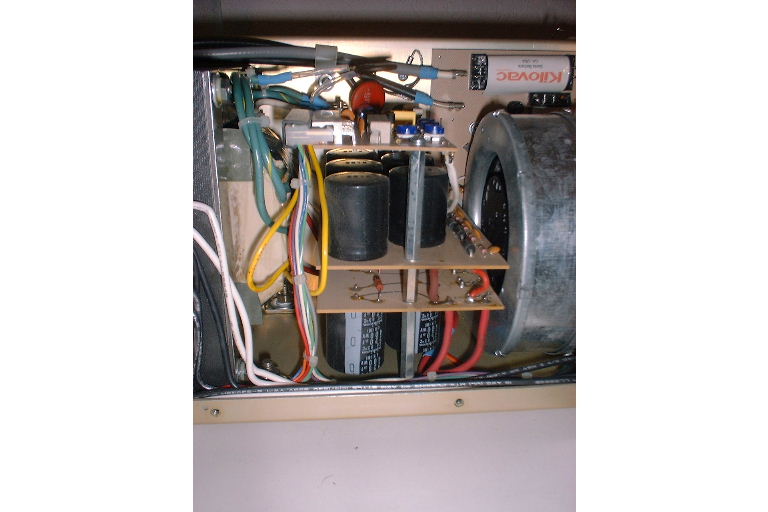

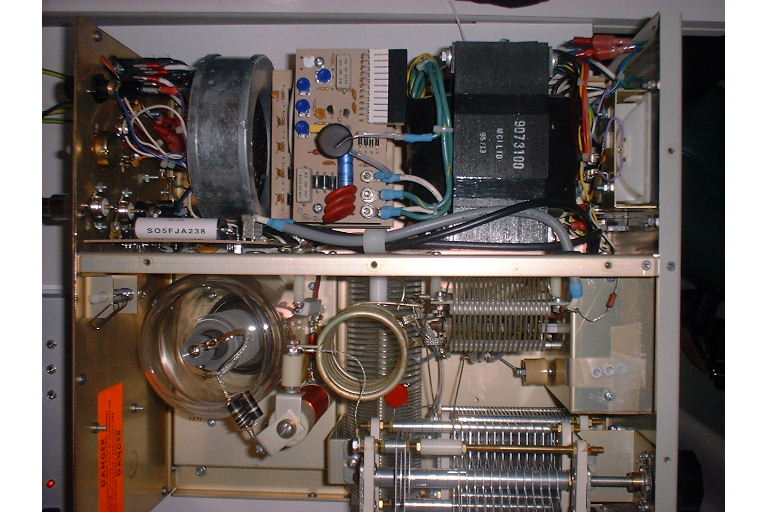

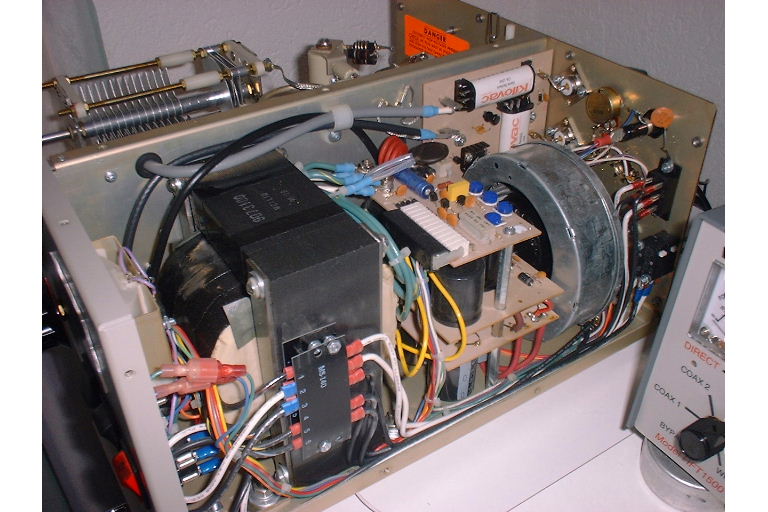

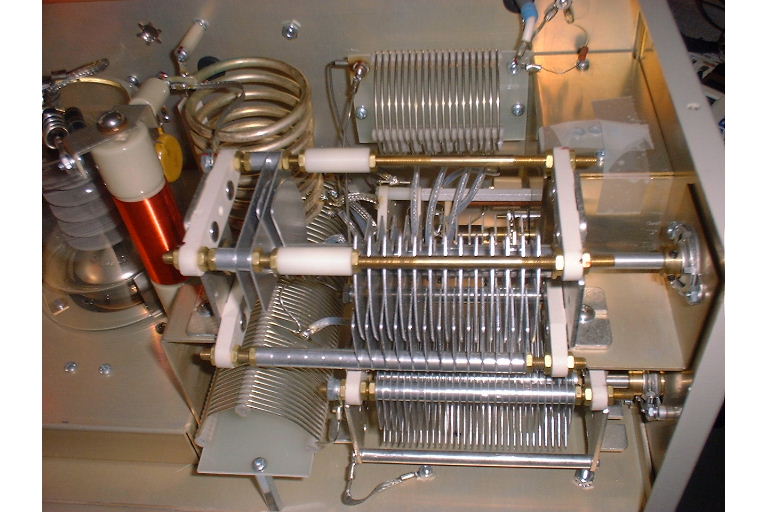

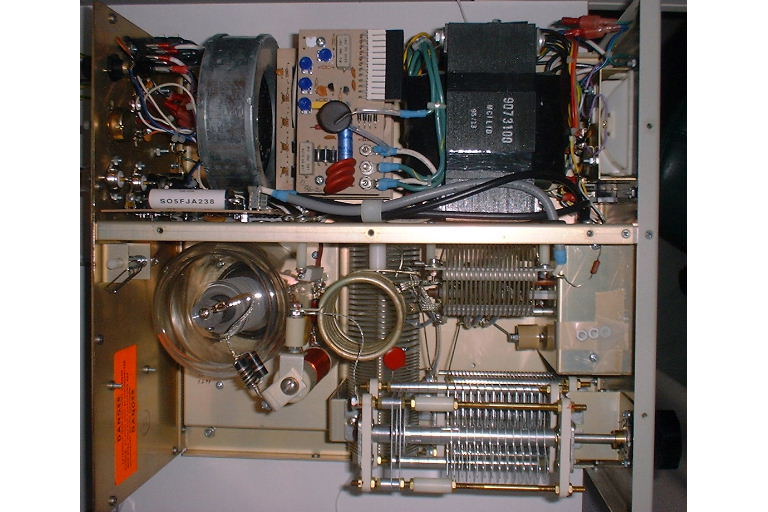

The assembly of this Vectronics linear amplifier was done very well,
high quality manufacturing work.


The power supply is simple very reliable developed


The ventilator for cooling generates almost no noise.
