COLLINS BALUN 1:1

Back

balun collins 1:1

collins balun 1:1



balun collins 1:1

collins balun 1:1

For a range of 3 - 28 Mhz, you can use 130 cm of coax cable for each side (A, B), make 7-8 turns on 11 cm diam.



balun collins 1:1 (simpler view)

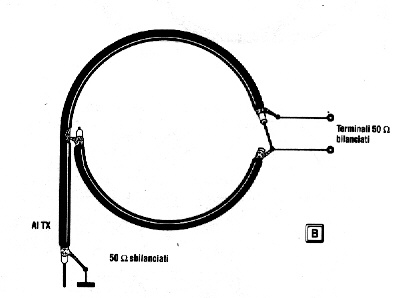

the same as above with only 1 turn (just to understand schematic)

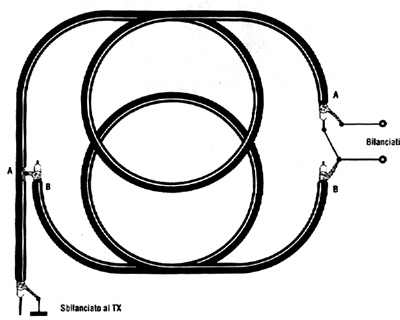

balun collins 1:1

collins balun made with teflon-cable

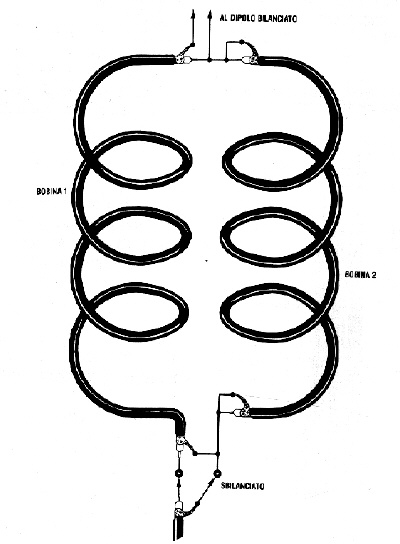

balun collins 1:1 (an other version)

an other version of collins balun 1:1
