This structure
is examinied from two points of view. The first, analyzed below, contains 64 feet of wire. The second analysis
below presents the structure with 30M of height.

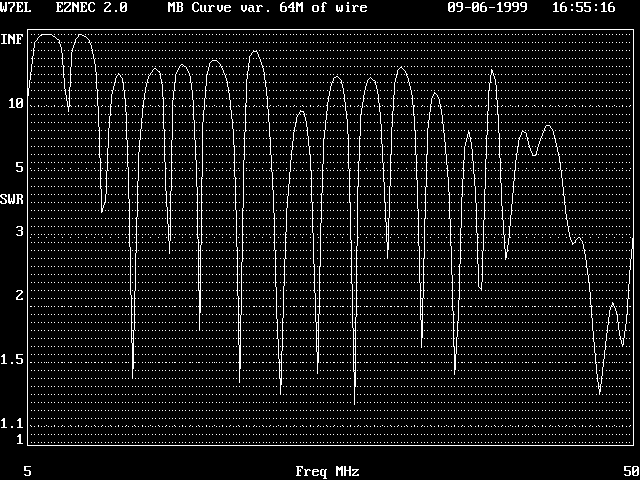

This
is the SWR normalized to 50 Ohms. The amonut of wire contained in the structure has been set equal to the Triadic
Koch Curve (64 meters).

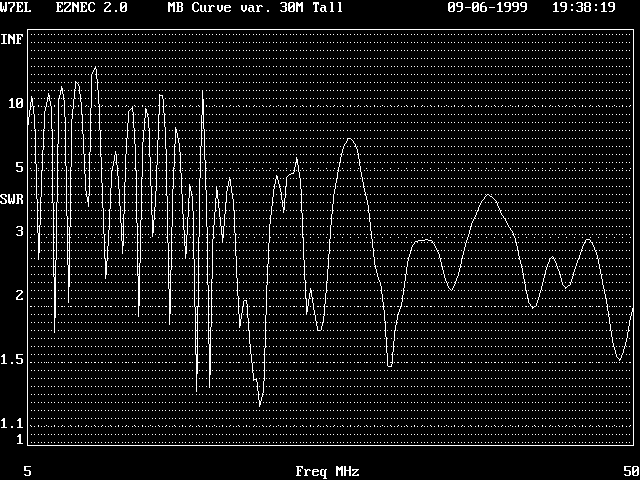

This
is the SWR normalized to 200 Ohms. The size of the structure has been increased in height equal to the Triadic
Koch Curve (30 meters).
|
