KB1NYT 220 Repeater

224.180MHz PL 67.0

Echolink Node 783892

Allstar Node 49445

Digital Connections (Private Node 1998)
YSF
US KB1NYT YSF Swansea, MA (77661)
Dstar
XLX041 (DCS041)
P25
kb1nyt.hopto.org:41000
TG 49445
NXDN
kb1nyt.hopto.org:41400
TG 49445
DMR
kb1nyt.hopto.org:62029
TG 6 (private server)

Repeater Photos

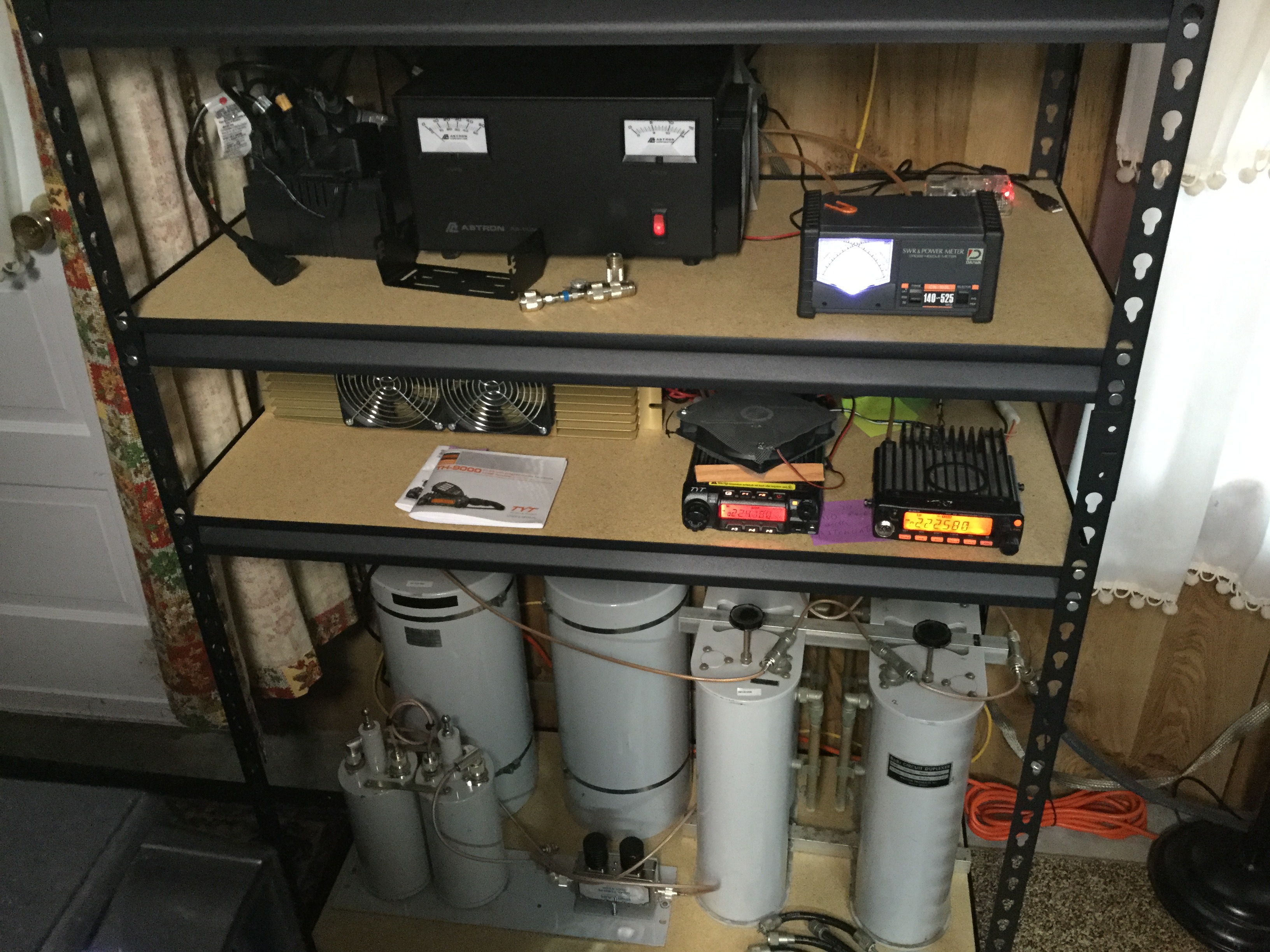

Repeater Rack

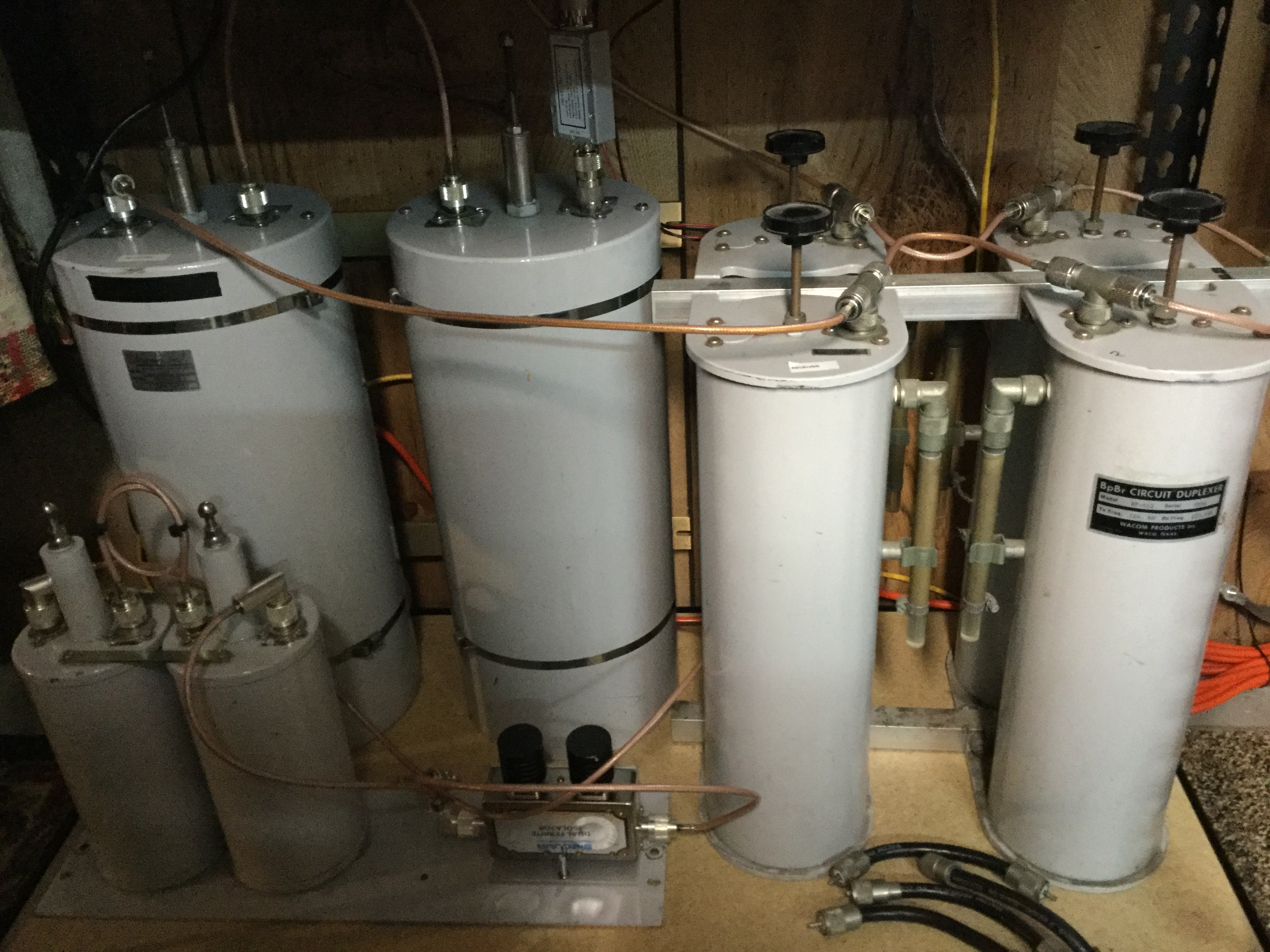

Cans

Radios and Amp

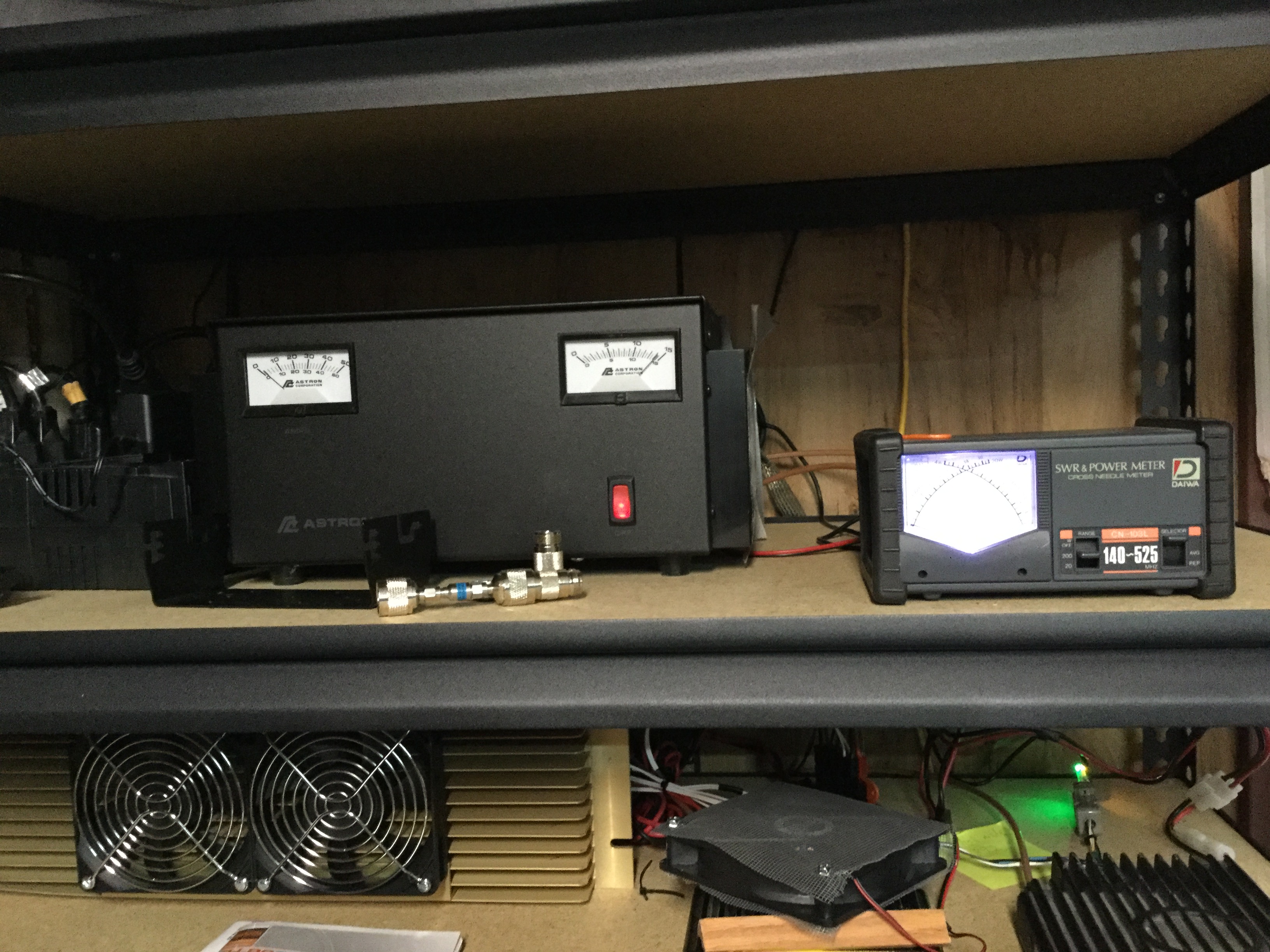

Power Supply

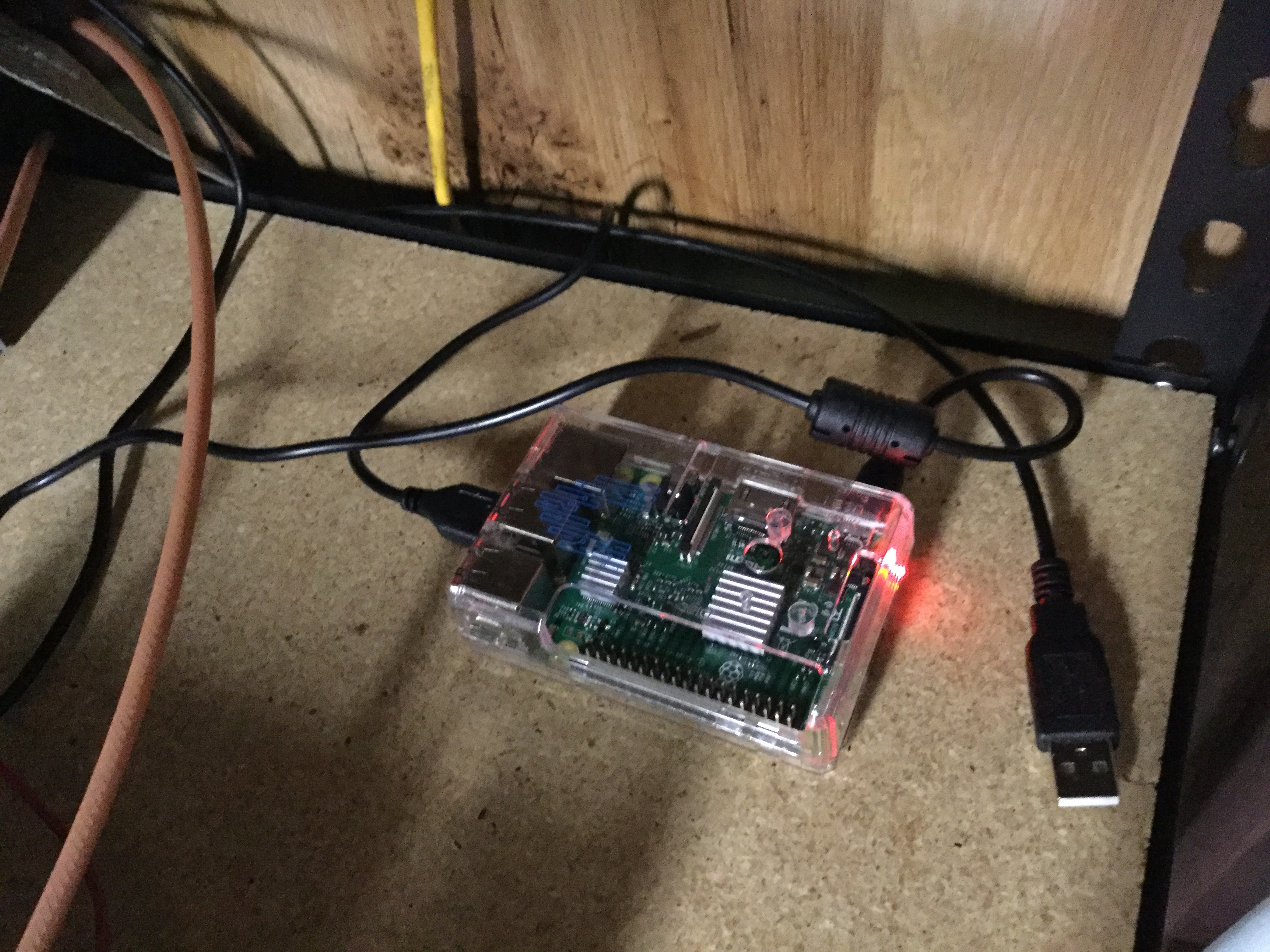

PI

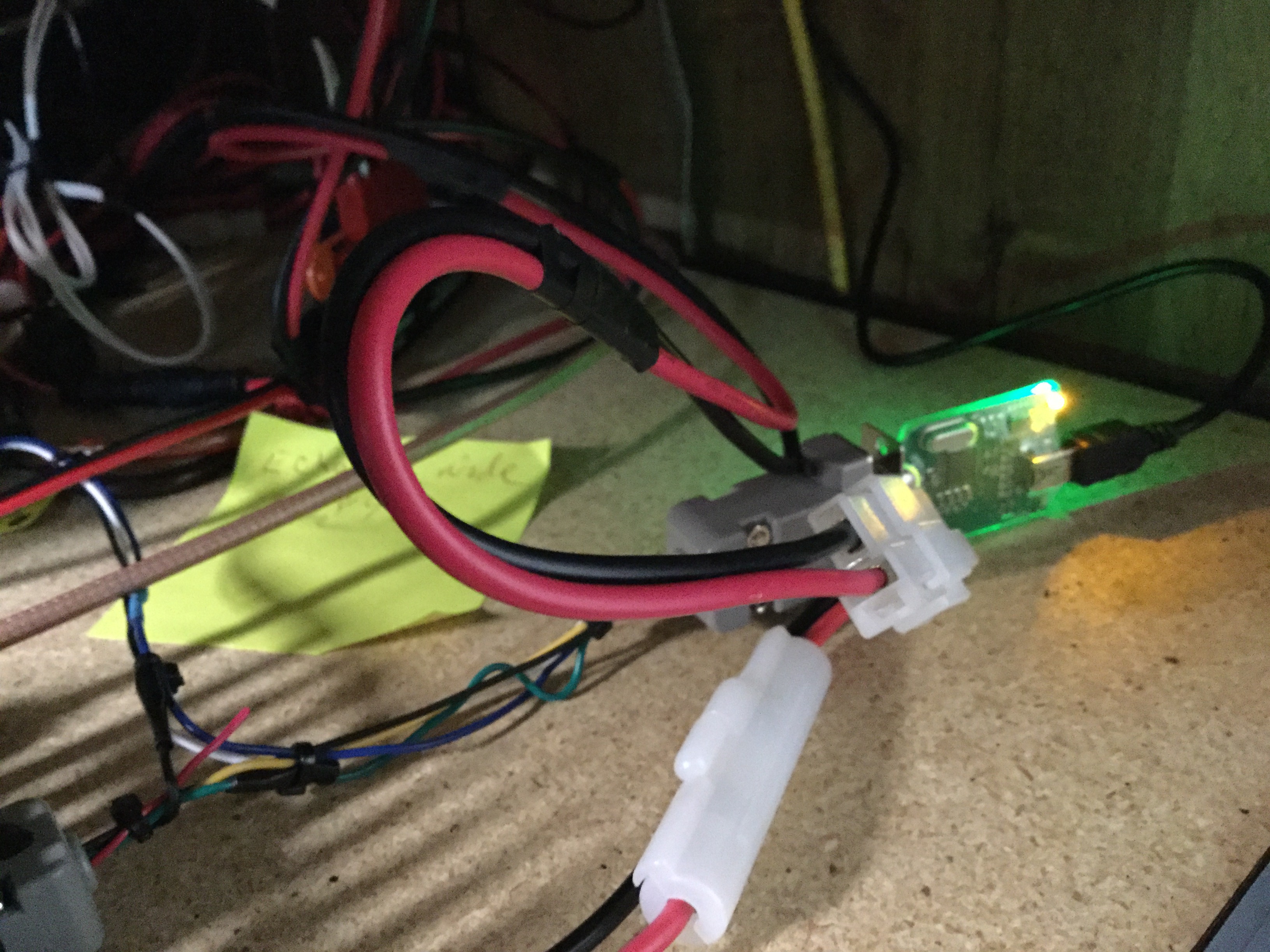

RIM-Alinco

Old Repeater Photos

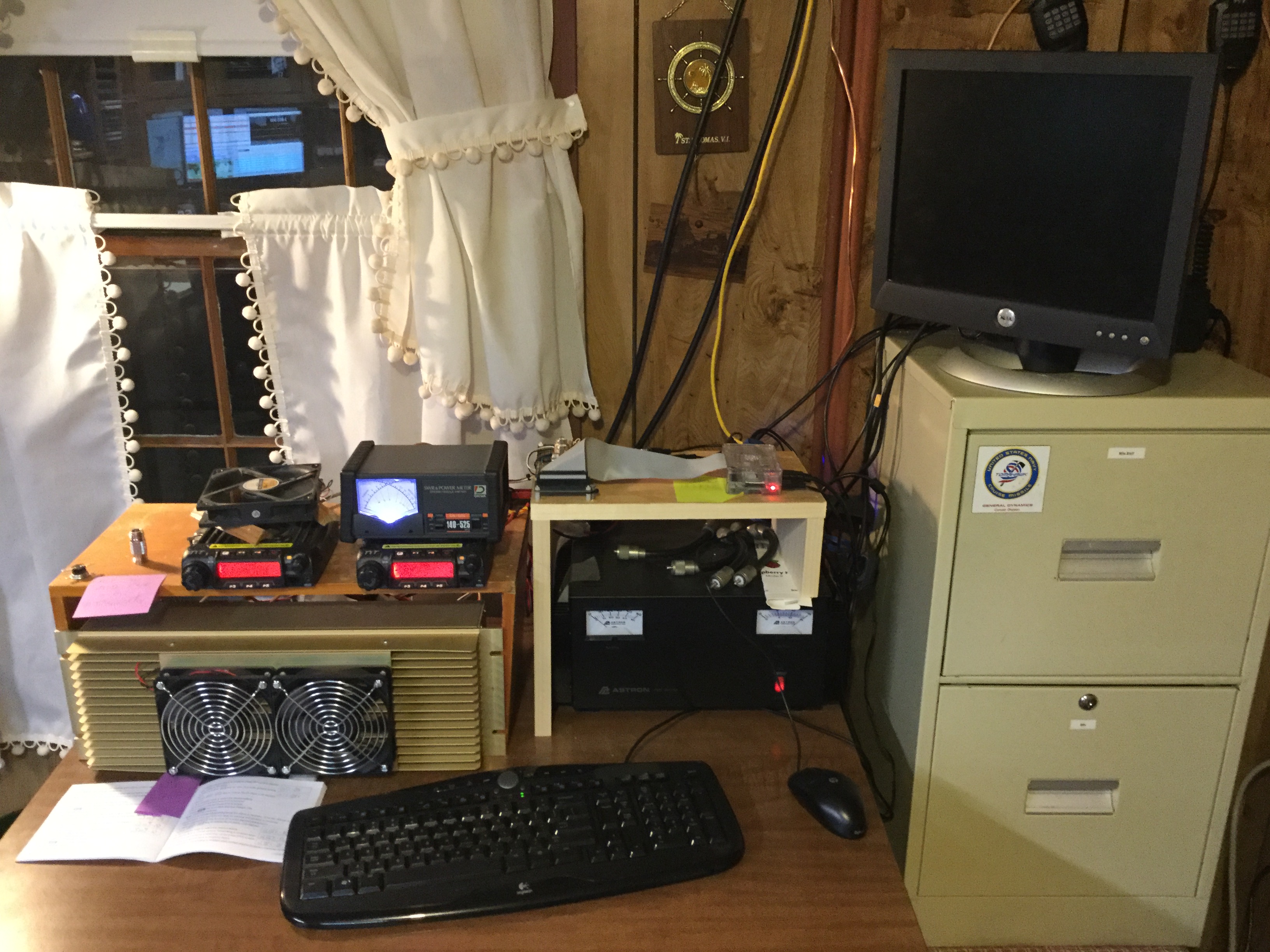

Repeater

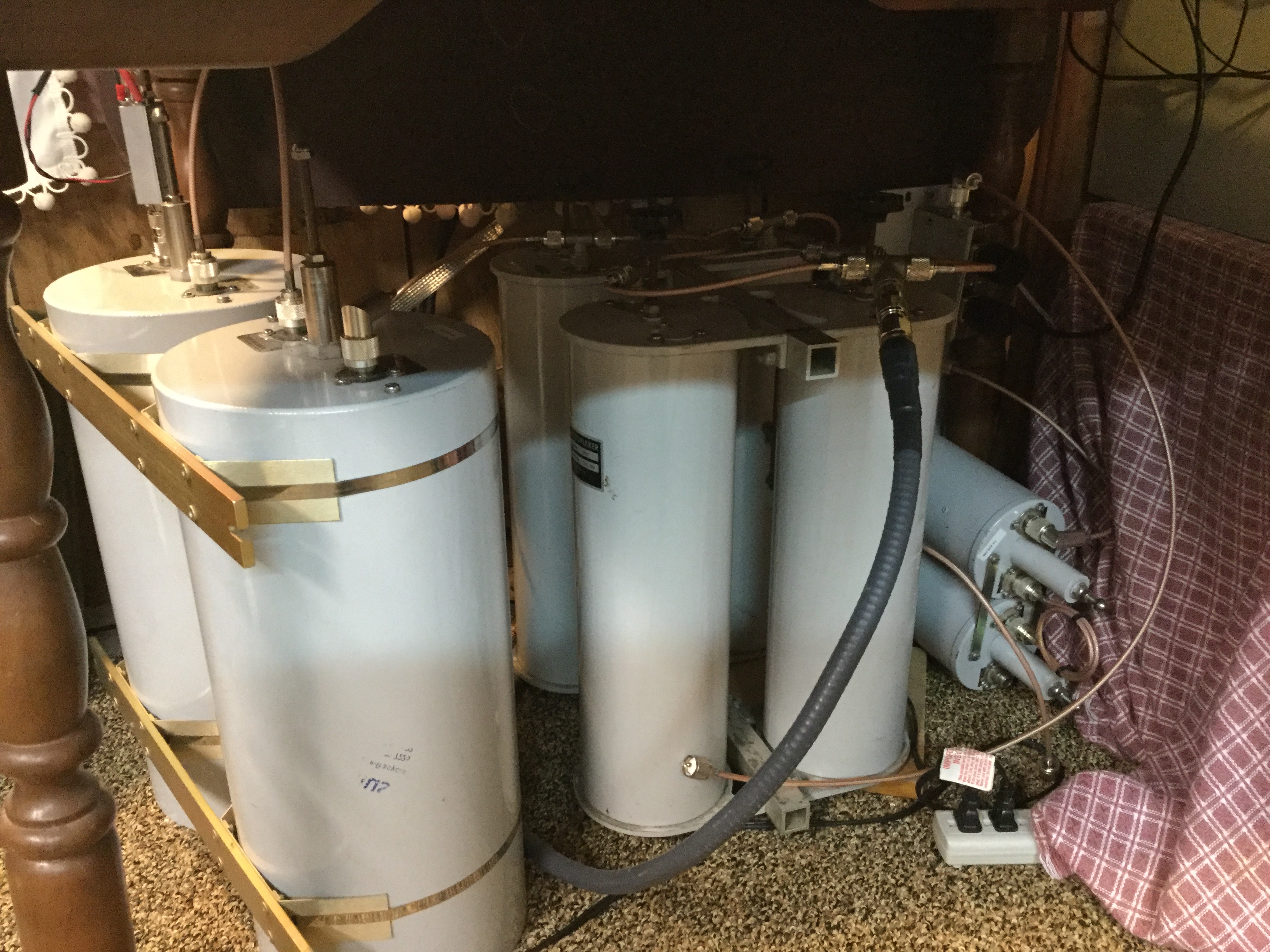

Cans

PI and Homemade Interface based on SVXLink

Repeater DTMF Commands

*1 - Link Disconnect
*2 - Link Connect(Monitor Only) *2[node]
*3 - Link Connect *3[node]
*33 - EchoLink Connect *33[6 digits pad leading zeros]
*4 - Remote Comand
*5 - Macros
*70 - System Status
*71 - Disconnect Permanently Connected Link = *71[node]
*72 - Connect Link Permanent Monitor = *72[node]
*73 - Connect Link Permanent Transceive = *73[node]
*75 - Play Full System Status
*76 - Disconnect All Links
*77 - Reconnect Previously Disconnected Links
*78 - Permanently Monitor Link
*80 - Link Status
*81 - System Info
*82 - 24 Hour Time
*99 - Phone PTT
*880 - AUTOSKY Enable
*881 - AUTOSKY Disable
*882 - AUTOSKY Update Message
*883 - AUTOSKY Say WX Alert
*884 - ARRL News
*885 - Amateur Radio News (ARN)
*921 - Parrot Enable
*922 - Parrot Disable
*923 - Parrot Flush
*925 - Parrot Once
*980 - App_rpt Version
If Echolink node is 6 digits pad with leading zeros to make 6 digits
