GENERAL
SPECIFICATIONS
|
Modes :
|
SSB (USB - LSB), CW, AM
|
Input power :
|
240W (About 100W Max at the
antenna)
|
Frequency
range :
|
3.5 - 4; 7 - 7.5; 14 -
14.5; 21 - 21.5; 28 - 30 Mcs. Bands
(Crystals optionally available for ranges 28 -
28.5; 29 - 29.5; 29.5 30
Mcs.)
Note from KB8QEU : The only 28 Mcs Band
crystal I have is 28 - 28.5 Mcs.)
|
Antenna
impedance :
|
50-100 ohms
|
Frequency
stability :
|
After warmup, within 100
cps/ every 30 minutes
|
Carrier
suppression :
|
-40 dB
|
Sideband
Suppression :
|
-50 dB at 1000 cps
|
Third order
intermodulation products :
|
-30 dB (P. E. P.)
|
A. F.
bandwidth :
|
300 - 2700 cps
|
Receiver
sensitivity :
|
0.5 uV input S/N 10 dB
|
Selectivity :
|
2.4 kc (-6 dB), 4 kc (-60
dB)
|
I. F.
interference ratio :
|
50 dB
|
Image ratio :
|
50 dB
|
Audio output :
|
1 watt at 10% distortion
|
Audio output
impedance :
|
8 ohms
|
Tubes and
simiconductors :
|
16 tubes, 15 diodes, 7
transistors
|
Dimentsions :
|
13 1/4" wide, 5 1/2" high,
11" deep
|
Weight :
|
17.5 lbs
|
|
|
Documentation :
|
Owner's manual (PDF)
|
Articles from the 7 3 Magazine :
|
First

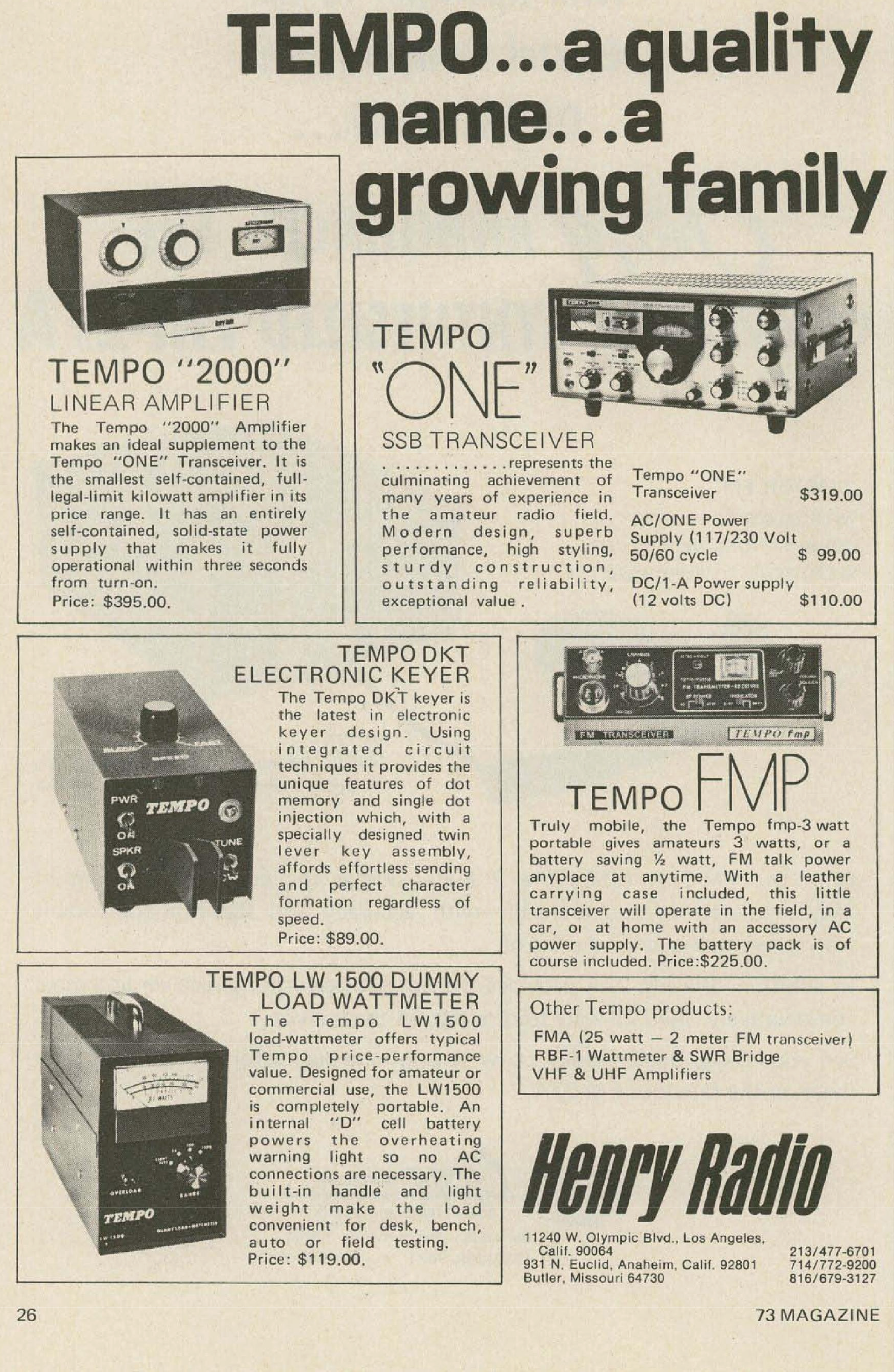

appearance in any publication : May 1972 (Click
for image)

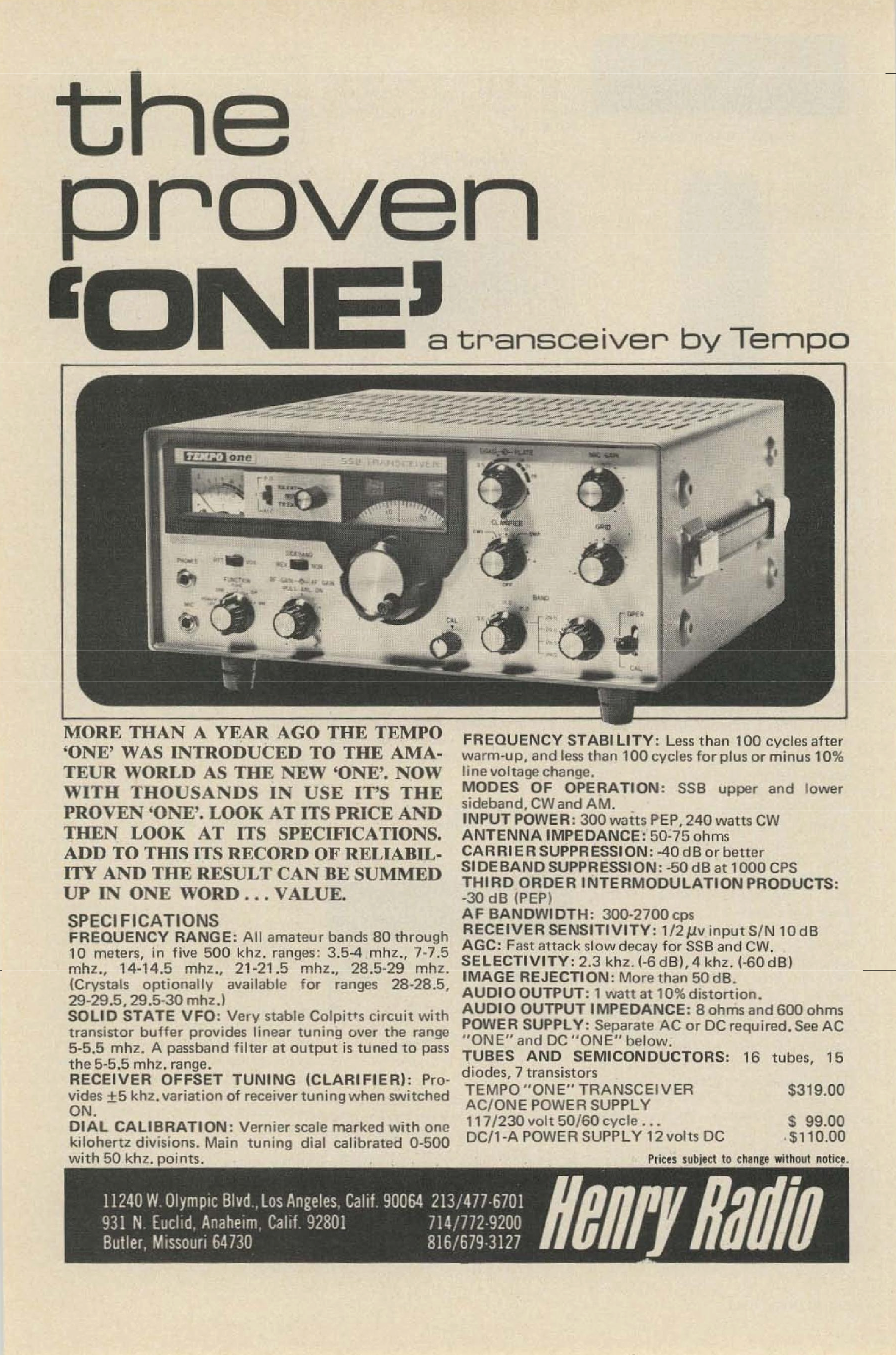

Second appearance in 7 3 Magazine : February
1973 (Click
here for image)
|
