021071-001 - 021071-010

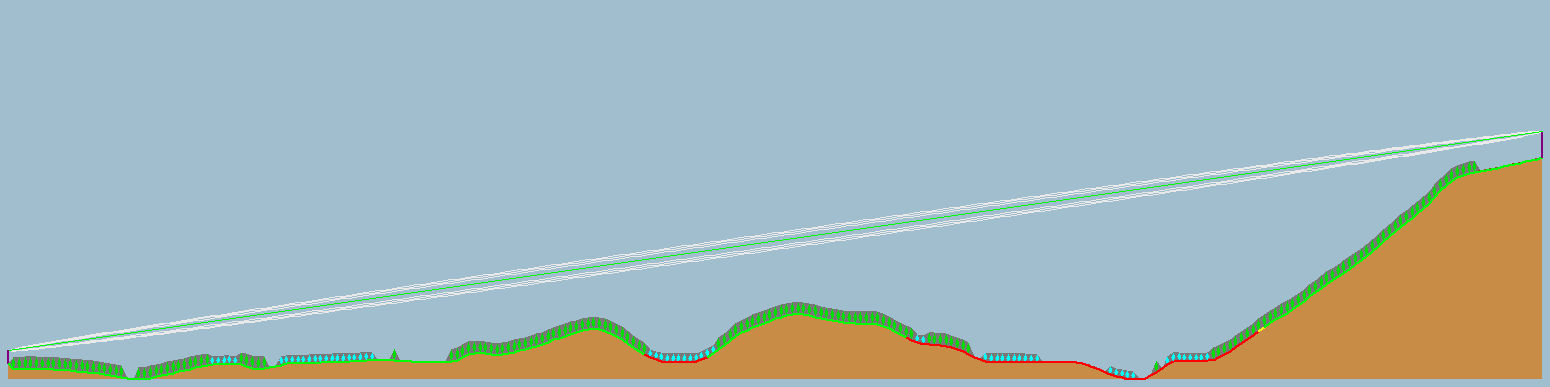

Click on the Link image and Map image to see them larger.
|
021071-001
Lancer
Latitude |
37� 39'
55.92"
37.66553333� |
N
|
Longitude |
82� 44'
10.44"
82.73636111� |
W
|
Ground elevation |
634.000
193.243 |
Ft
m |
Antenna height |
49.213
15.000 |
Ft
m |
Azimuth |
80.71 TN |
87.61 MG |
� |
Tilt |
5.59 |
� |
|
021071-010
(Sugar Loaf)
Latitude |
37� 40'
10.01"
37.66944722� |
N
|
Longitude |
82� 42'
21.80"
82.70605556� |
W
|
Ground elevation |
1386.000
442.453 |
Ft
m |
Antenna height |
149.638
45.000
|
Ft
m |
Azimuth |
260.73 TN |
267.65 MG |
� |
Tilt |
-5.61 |
� |
|
Radio system
TX power |
30.00 |
dBm |
TX line loss |
0.00 |
dB |
TX antenna gain |
23.00 |
dBi |
RX antenna gain |
23.00 |
dBi |
RX line loss |
0.00 |
dB |
RX sensitivity |
-113.02 |
dBm |
|
Propagation
Free space loss |
116.37 |
dB |
Obstuction loss |
-4.79 |
dB |
Forest loss |
0.00 |
dB |
Urban loss |
0.00 |
dB |
Statistical loss |
31.27 |
dB |
Total path loss |
142.85 |
dB |
|
Performance
Distance |
1.676
2.698 |
Mi
km |
Precision |
32.808
10.000 |
Ft
m |
Frequency |
5825.000 |
Mcs. |
Equivalent
Isotropically Radiated Power |
199.526 |
W |
System gain |
189.02 |
dB |
Required reliability |
99.000 |
% |
Received Signal |
-66.85 |
dBm |
Received Signal |
101.76 |
μV |
Fade Margin |
46.17 |
dB |
|
|
