021071-010 - 021195-010

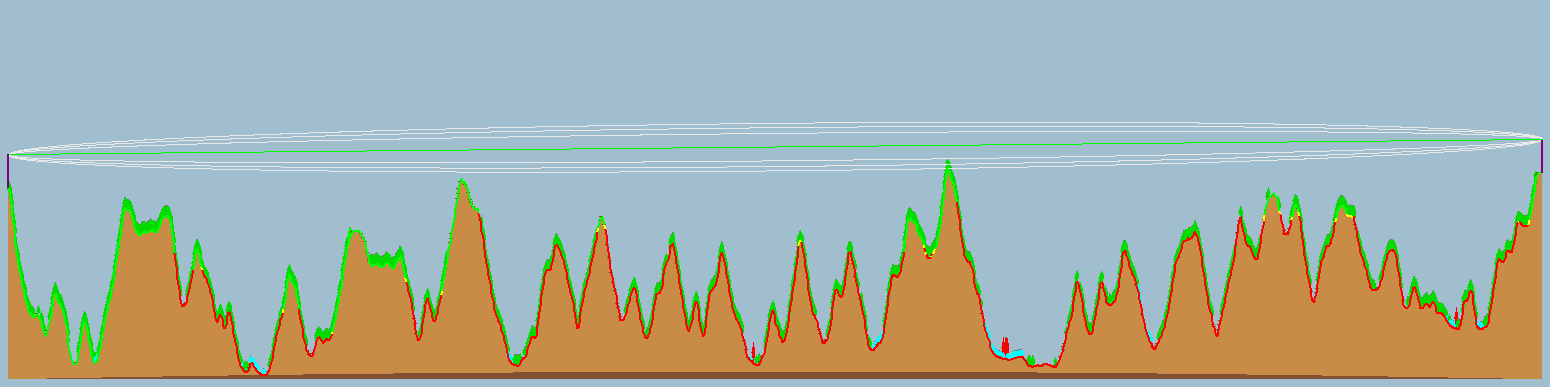

Click on the Link image and Map image to see them
larger.
|
021071-010 (Sugar Loaf)
Latitude |
37� 40'
10.01"
37.66944722� |
N
|
Longitude |
82� 42'
21.80"
82.70605556� |
W
|
Ground elevation |
1386.000
442.453 |
Ft
m |
Antenna height |
149.638
45.000
|
Ft
m |
Azimuth |
260.73 TN |
267.65 MG |
� |
Tilt |
-5.61 |
� |
|
021195-010
(Pikeville - EKB)
Latitude |
37� 27'
57.86"
37.46607222� |
N
|
Longitude |
82� 33'
02.25"
82.55062500� |
W
|
Ground elevation |
1522.000
463.800 |
Ft
m |
Antenna height |
147.638
45.000 |
Ft
m |
Azimuth |
328.84 TN |
335.83 MG |
� |
Tilt |
-0.16 |
� |
|
Radio
system
TX power |
30.00 |
dBm |
TX line loss |
0.00 |
dB |
TX antenna gain |
27.00 |
dBi |
RX antenna gain |
27.00 |
dBi |
RX line loss |
0.00 |
dB |
RX sensitivity |
-113.02 |
dBm |
|
Propagation
Free space loss |
136.15 |
dB |
Obstuction loss |
-0.83 |
dB |
Forest loss |
0.00 |
dB |
Urban loss |
0.00 |
dB |
Statistical loss |
30.50 |
dB |
Total path loss |
165.82 |
dB |
|
Performance
Distance |
16.430
26.441 |
Mi
km |
Precision |
43.307
13.200 |
Ft
m |
Frequency |
5825.000 |
Mcs.
|
Equivalent
Isotropically Radiated Power |
501.187 |
W |
System gain |
197.02 |
dB |
Required reliability |
99.000 |
% |
Received Signal |
-81.82 |
dBm |
Received Signal |
18.16 |
μV |
Fade Margin |
31.20 |
dB |
|
|
