This page is about how I made replacement coils for my grandfather's Heathkit GD-1 Grid Dip Oscillator that was passed down to me. A few years after his passing, my grandmother found it in a drawer and gave it to me.


Youtube Demonstration

EE times article on GD-1A GDO

It seemed difficult to find an original set of coils and I didn't feel like dealing with Ebay, so I decided to homebrew mine. For homemade replacment coils, I drew inspiration from these pages:
http://www.jeffavery.ca/hamradio/hamradio5b.html
[1] https://www.antiqueradios.com/forums/viewtopic.php?f=8&t=323715



The completed coils.

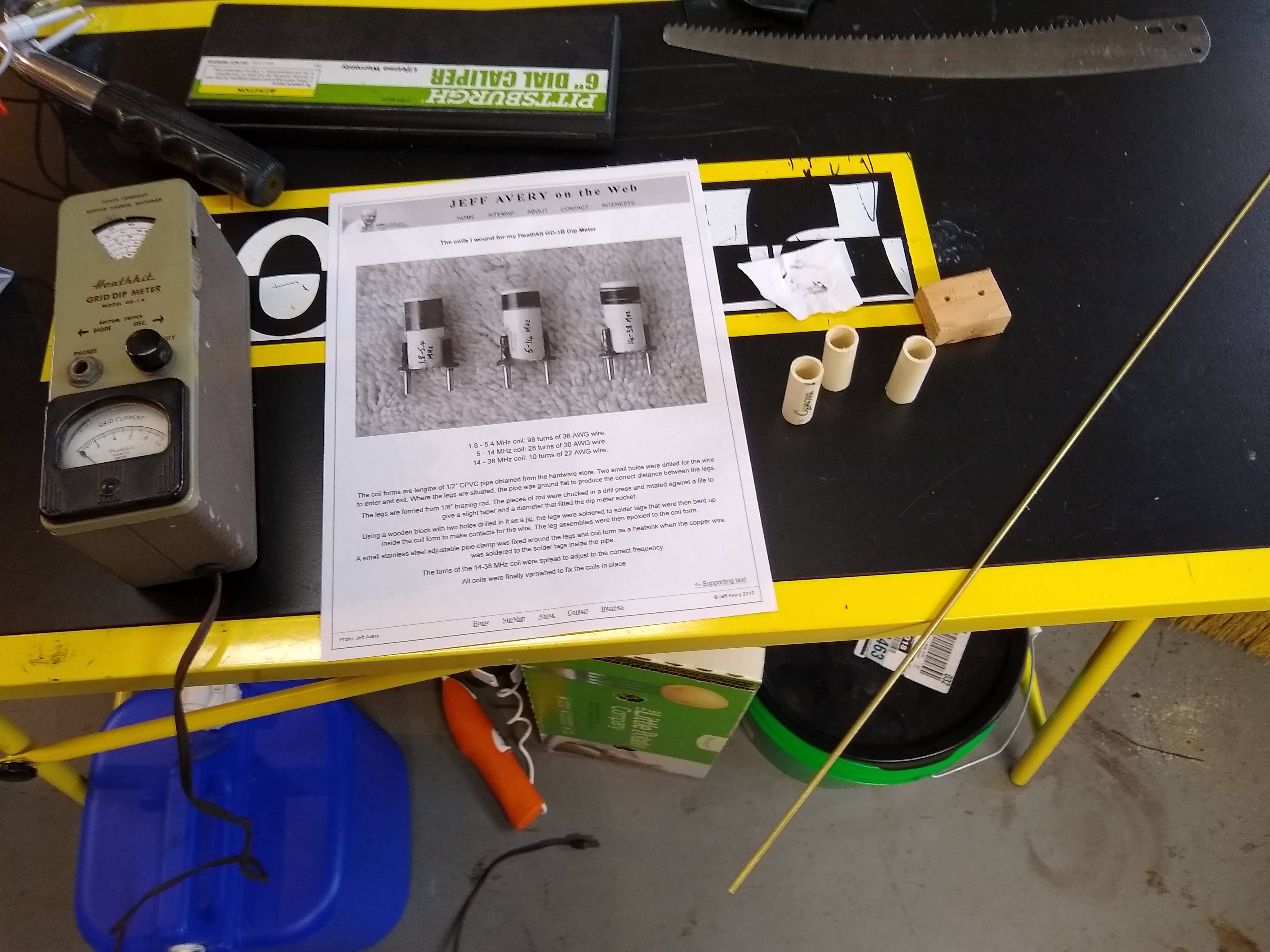

All the materials needed to construct the coils.


Filing a taper on the brass rods on my lathe to form the coil pins.

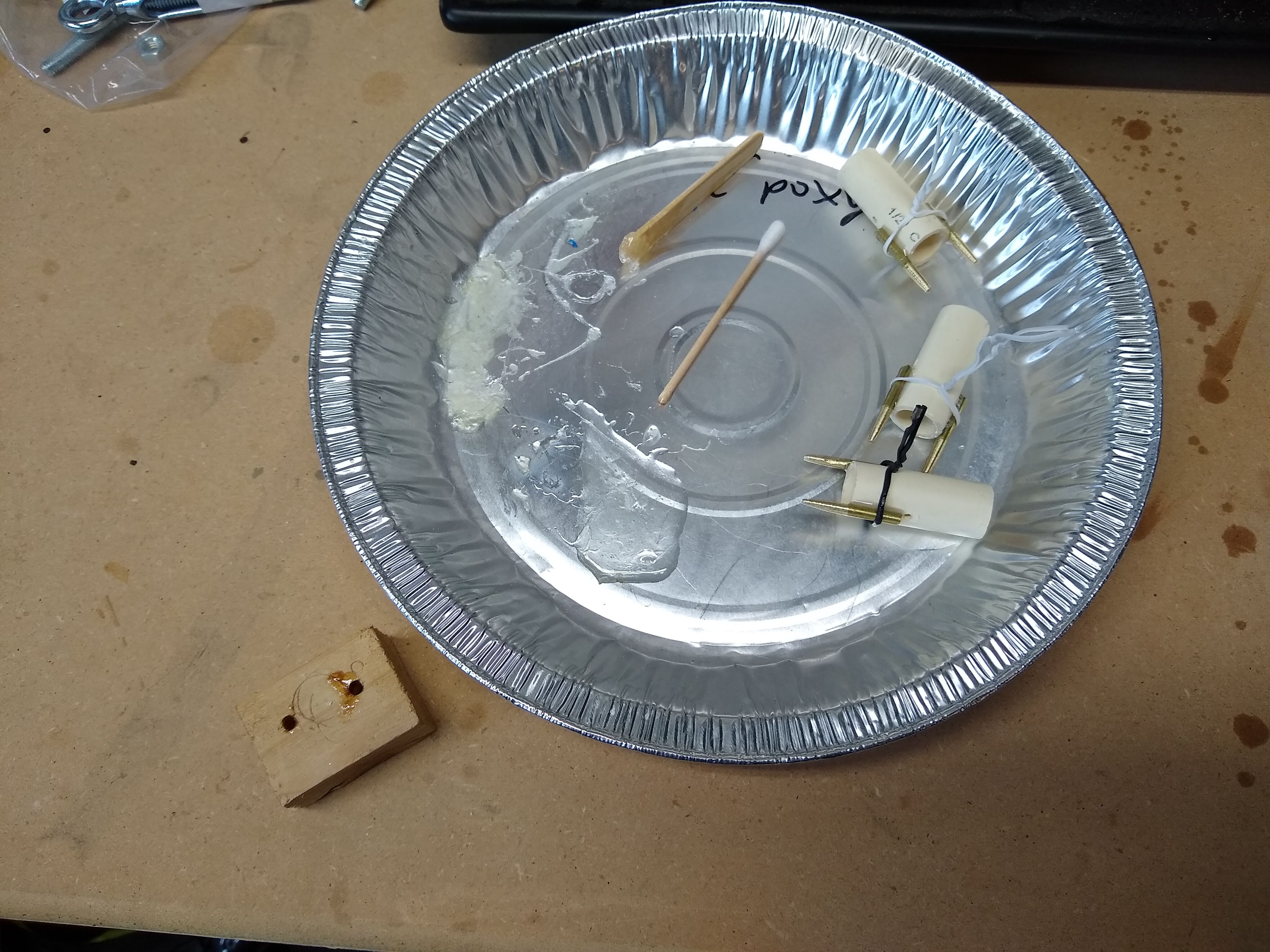

Setting the pins to the coil form with clear epoxy.


Winding the wire to the coil form.


A finished coil!
