A Homebrew Roof Mount for a Small Transmitting Loop
I had a good Small Transmitting Loop (STL) in my backyard for almost two years and it worked well enough. I finally decided I was tired of mowing around it and telling the kids to keep away from it, and I knew that the shed rooftop would be a good location for it.

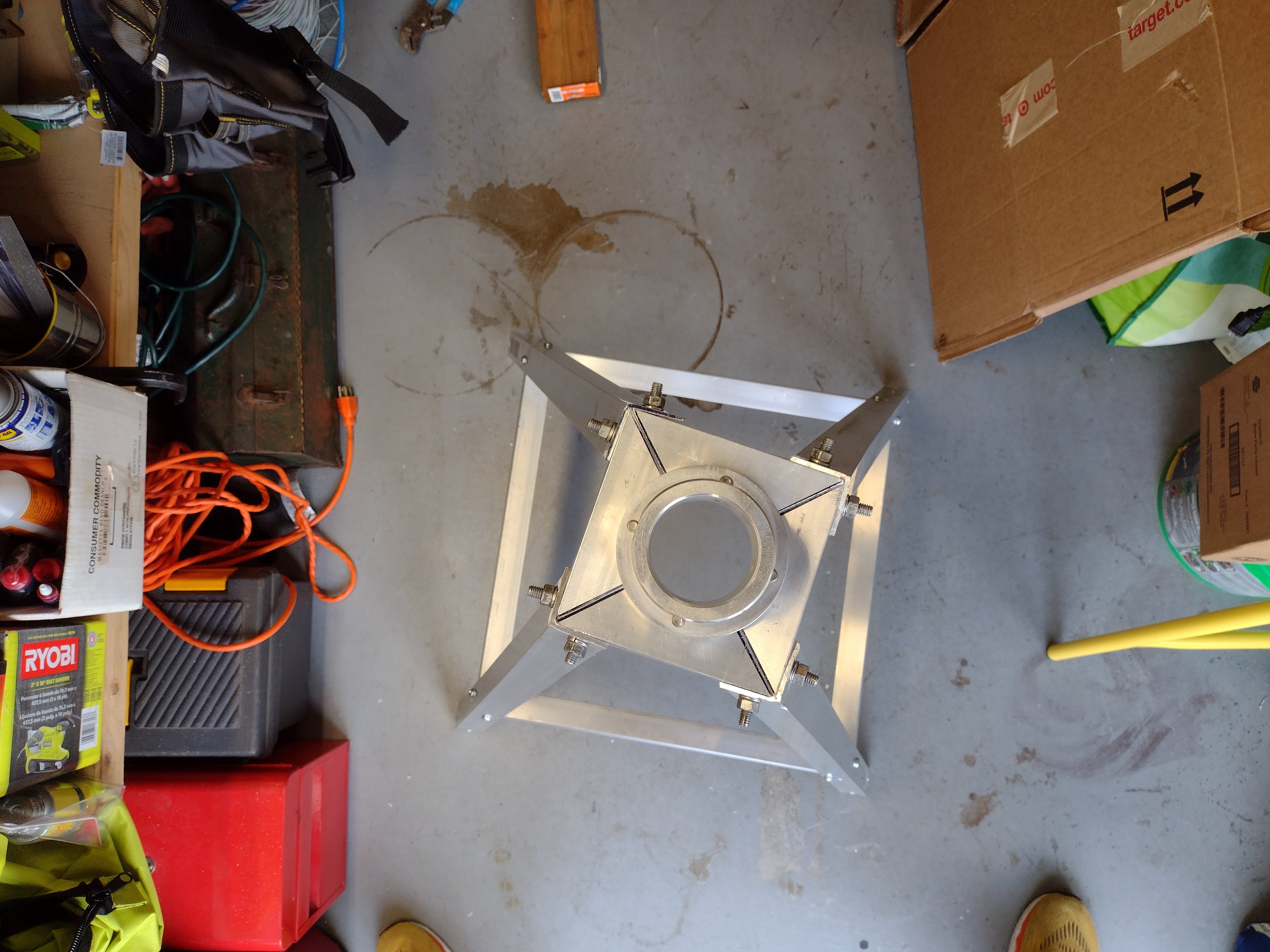

Assembly in the garage:

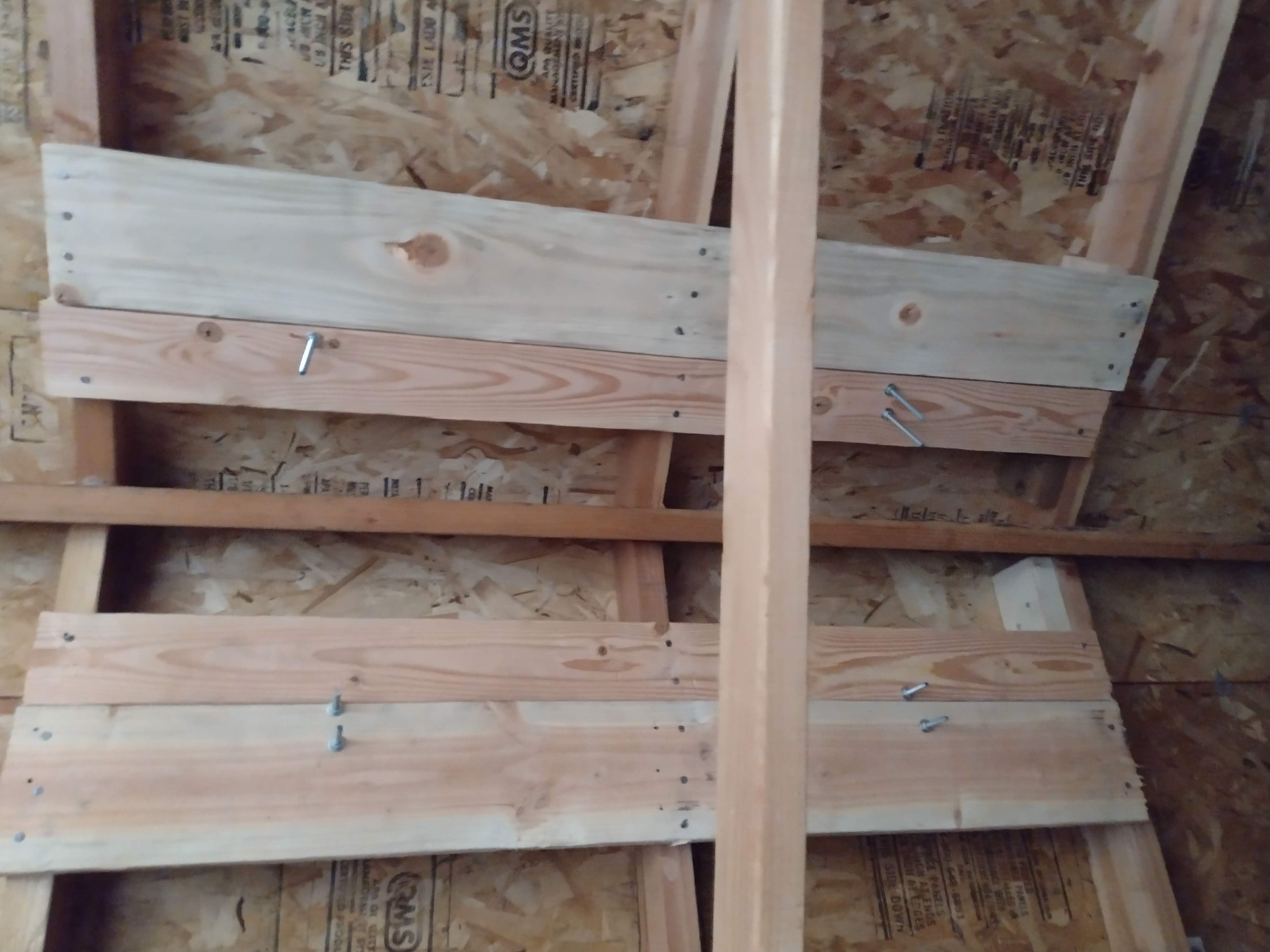

Shoring up the shed roof. I decided to add a couple rafters and some bracing. The legs will be secured using threaded rod, a standard recommendation in the ARRL antenna book.
Mounting. There's always some difficultly along the way, which for this project was an 1/8" drill bit broken off into the pressure treated wood. I was able to come back and add the remaining rod later.
| Item | QTY | Price/ea | Subtotal |
|---|---|---|---|
| 2x4x8' to strengthen roof | 2 | 8.25 | 16.5 |
| 2x6 for inside of tower base | 1 | 16 | 16 |
| 2x4x8' PT for top of roof | 1 | 13.18 | 13.18 |
| 1/8" x 1.5" x 24" alum. for mount | 1 | 12 | 12 |
| 1/8" x 1.5" x 36" alum. for mount | 4 | 18 | 72 |
| 1/8" x 1.5" x 36" alum. for braces | 2 | 18 | 36 |
| Bolts for tower 5/16 x 1 | 16 | 0.60 | 9.6 |
| 1/4" diameter x 12" threaded rod | 8 | ||
| 1/4" fender washers | 8 | ||
| 1/4" lock washers | 16 | 0.5 | |
| 1/4" lock nuts | 16 | 0.32 |
