Another experimental 900 MHz packet radio.  Should handle Manchester or G3RUH modulation from 38 kbps up to 115.2 kbps.

None of this has been built yet until I can figure out a few bugs.

Does NOT contain the serial (RS-232) encoding, as I have no idea how to do that.  Use the linux soundmodem stuff.

Schematics

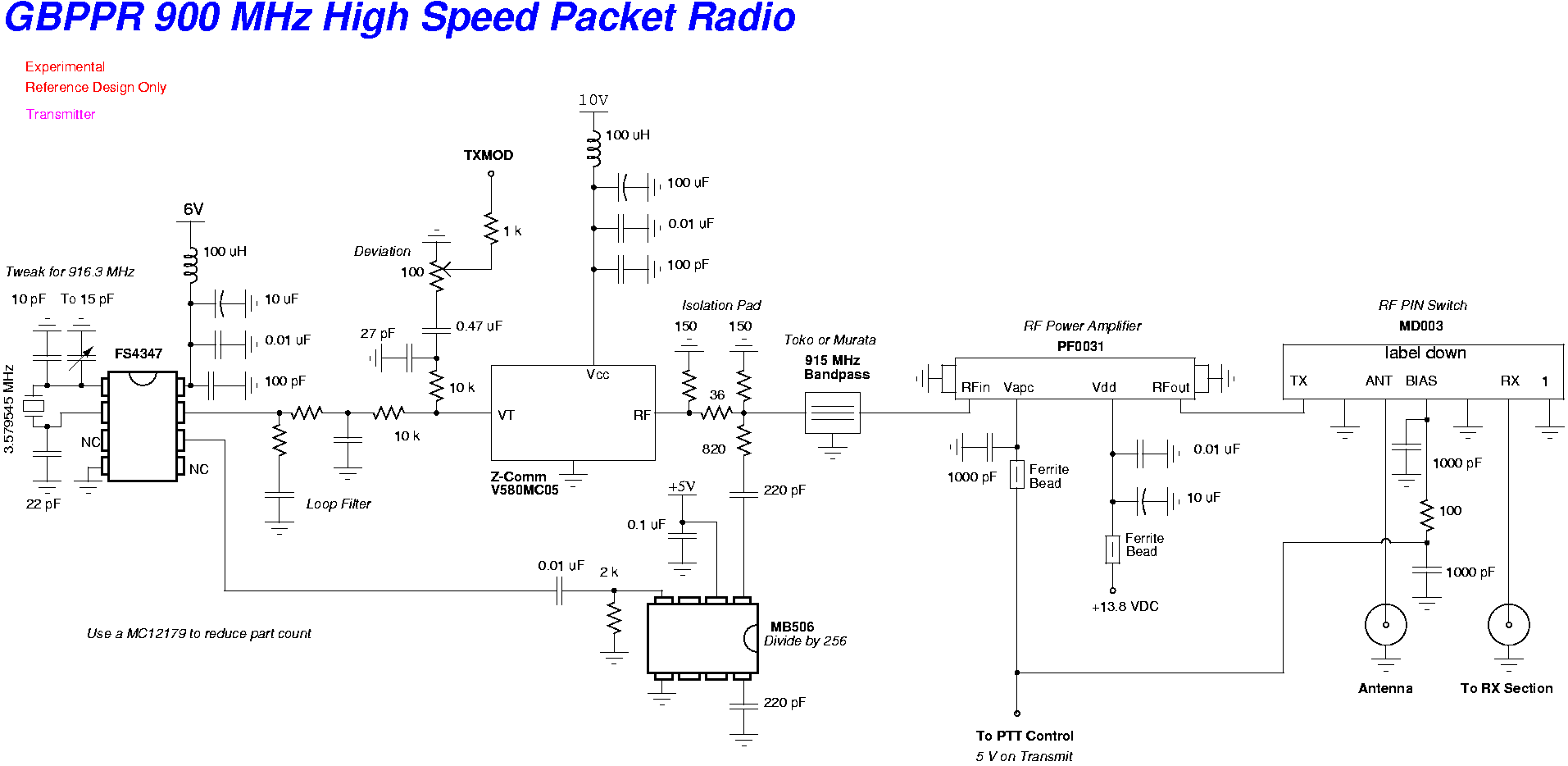

• GBPPR 900 MHz High Speed Packet Radio - Transmit Section  (49k PNG)
• GBPPR 900 MHz High Speed Packet Radio - Receive Section  (63k PNG)

Datasheets

• Fujitsu MB506 Prescaler  (65k PDF)
• Z-Comm V580MC05 VCO  (168k PDF)

Notes

• N6GN's 900 MHz Power Amplifier Schematic
• WJ AG101 70 MHz IF Amplifier Application Note  (149k PDF)
• Soundcard Modem PTT
