Amateur Radio Digital Mode Experimenters

NM5SH

DMR Repeater Information Page

NM5SH currently operates two DMR repeaters in the Albuquerque, NM metro area.
Control Operators:
Bob, W9YA
Mark, K5LXP
Albuquerque Area Active DMR Repeaters
Callsign
 Frequency
 CC
 Notes
NM5SH 443.650 1 NM Digital ; ABQ Metro
NM5SH 442.525
 1
 NM Digital ; ABQ Metro, Rio Rancho
N5QD
 443.200
 1
 N5QD
N5GU
 444.600
 1
 N5GU
N5GU-EM 444.625 1
 N5GU
WA5IHL
 442.250 1
 Arizona TRBO Net
KA8JMW
 442.900
 7
 Rocky Mountain Ham
WR7HLN-SC
 443.300
 1
 Mac Pass Repeater Group "MPRG"
WR7HLN-WM
 443.550
 1
 Mac Pass Repeater Group "MPRG"

Radio Codeplug Files

*NOTE* The codeplugs shown below have had the user ID reset.  Enter your DMR ID into the general settings when you program these codeplugs into your radio.  Don't have a DMR ID?  Get one HERE.
Generic Albuquerque Area MD-380 Codeplug-2019 Zone containing the above ABQ repeater list, and an FM repeater zone.
Generic Albuquerque Area Codeplug-2024 Open GD-77 Codeplug for Albuquerque Metro
For GD-77/ D-77S, DM-1801, DM-1801A, RD-5R, MD-9600 and Open MD-UV380/UV390/Retevis RT3S radios








"Main" DMR Resource Sites
RadioID.net
 DMR USER / REPEATER Registration
DMR-MARC Motorola Amateur Radio Club Worldwide Network.
Brandmeister Worldwide infrastructure network of amateur radio digital voice systems.
Brandmeister Help Page Configuring Repeaters and Hotspots
Repeaterbook The Worldwide Repeater Directory.
Open GD77
 Open GD77 Radio Forum, Links, Firmware, Software
GB3GF
 MD380, GD-77 CSV Codeplug Conversion Utilities


General DMR Information
editcp An excellent MD380-390-Alinco-RT3 codeplug editor, firmware & user's database
upgrader that works in both Windows AND Linux.
MD380 Tools
 TYT MD380 firmware replacement, highly recommended.
dmrconfig
 Simple codeplug tool for Anytone/Btech/TYT/Retevis/Baofeng/Radioddity radios.
GD77 Quick Start
 Open GD-77 Quick Start by W9YA
JumboSpot Info page that covers several products including the "chinaspot" hotspots.
Pi-Star EXCELLENT source of info for the user of this unique software, including links.
PiStar
Radio Notes/PiStar
ClearNode
AllStar, EchoLink, DMR, P25, YSF, FCS & NXDN
DVSwitch
 Discuss DMRlink, DMRmonitor, HBlink, DVSwitch and DMRDongle.
DMR Net List
 Listing of DMR Nets
DMR Radio Info
 Miklor DMR Information Links

NM5SH Repeater Details

Frequency: TX 443.650/RX 448.650
Color Code: 1
DMR ID: 313514

Default Brandmeister Talkgroups:

  • TS1=Brandmeister PTT (User Select)
  • TS1=98977 (Open GD77)
  • TS2=02, N5GU Cluster
  • TS2=3135, New Mexico Statewide
  • TS2=31350, New Mexico TAC
  • TS2=313509, Albuquerque Metro
  • TS2=Brandmeister PTT (User Select)

Brandmeister Repeater Page

Hardware:
Bridgecom BCR-40U/50V FM Repeater
MMDVM Pi-Hat Digital Mode Modem
Motorola T1500A Duplexer  --  PLOT
Comet GP-6 Colinear Antenna - LDF50-50A Hardline

Location:  Northwest Albuquerque, NM
Overlooking the Petroglyph National Monument
Latitude 35.161949  Longitude -106.724503

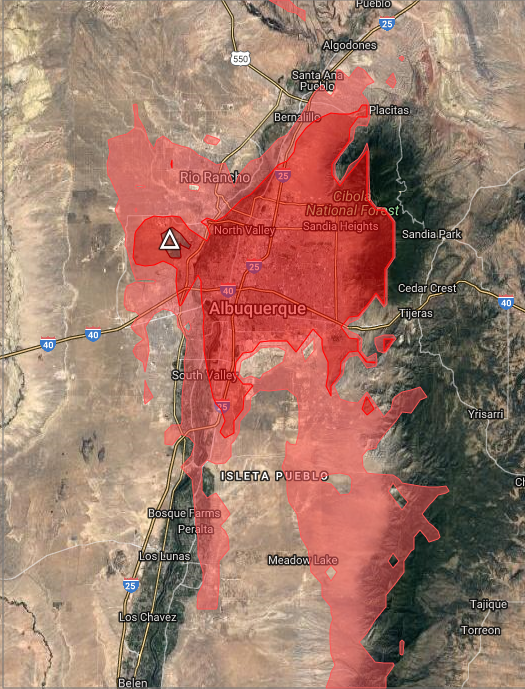

Coverage Map

Frequency: TX 442.525/RX 447.525
Color Code: 1
DMR ID: 313072

Default Brandmeister Talkgroups:

  • TS1=Brandmeister PTT (User Select)
  • TS2=02, N5GU Cluster
  • TS2=3135, New Mexico Statewide
  • TS2=31350, New Mexico TAC
  • TS2=313509, Albuquerque Metro
  • TS2=Brandmeister PTT (User Select)

Brandmeister Repeater Page

Hardware:
RX: Motorola CDM1550, TX: Maxon TM-8402
MMDVM Pi-Hat Digital Mode Modem

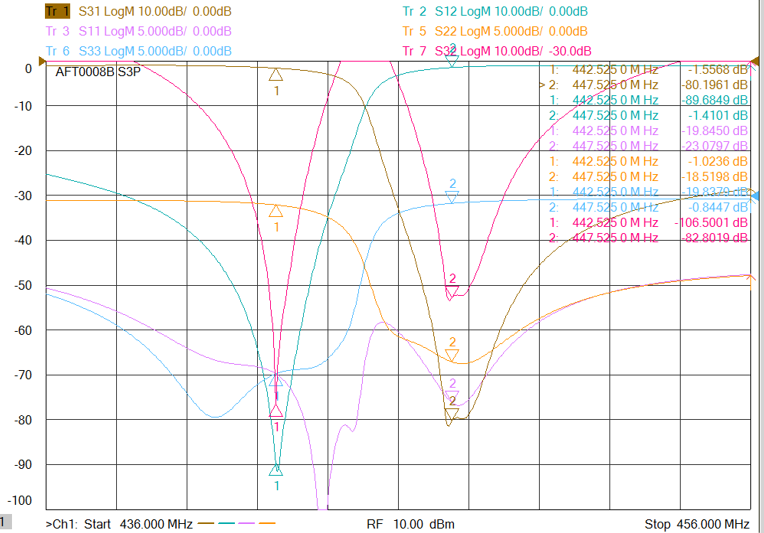

BridgeCom Mobile Duplexer  --  PLOT
Fong DBJ-UHF Antenna - LMR-400 Feedline

Location: Southwest Rio Rancho, NM
Rio Puerco Societal Isolation Region
Latitude 35.240398 Longitude -106.770102

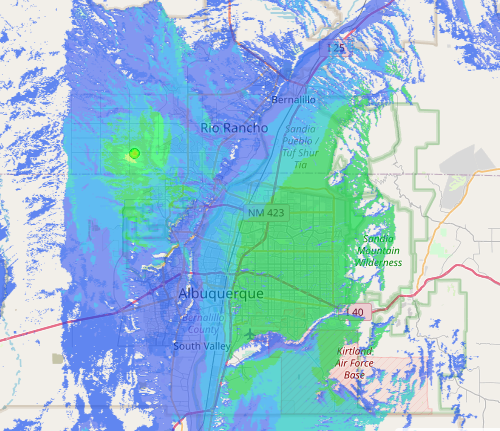

Coverage Map


About NM5SH:
The NM5SH group was created in the 2014 timeframe to learn and promote high speed data over commodity wifi router hardware using "HSMM", later Broadband Hamnet (BBHN). After interest in this mode waned due to a number of factors, the group transitioned to the use and deployment of open source DMR radios and repeaters.



This web page was created 100% Microsoft free.
