Simple or High Tech -- have Fun !! OE3MZC    OE3YCB

Typical Ham Radio Station consists of antennas, transceivers for different frequencies, computer, and some analyzer equipment. Often you will find Power Amplifiers, up to legal power limits.

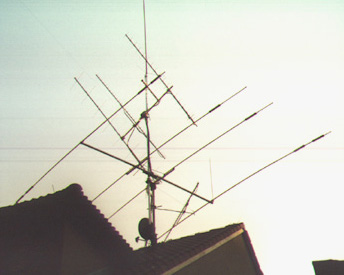

HF and Satellite antennas of OE3MZC In Europe large antenna towers are more difficult to errect, due to environmental restrictions. It is essential to have a very effective antenna system to cover all bands and operation modes you want to be active. In my case it is a 4 Element beam antenna covering 20m,17m,15m,12m,10m bands with abt. 7dbd gain. For satellite operation ( OSCAR10 ) and SSB-DX cross yagis for 144mc and 435mc offer horizontal and vertical polarisation and 10 to 16 dbd gain. Azimuth and elevation rotators turn the yagis in ervery position.
Sample Station Equipment:     (left to right)
SCS Pactor Controller,MFJ 16010 antenna tuner, DCF77 timer, Kenpro Roator, Datong NF filter, remote antenna switch SSB, Kenwood TS 850S Hf-TRX, Yaesu elevation rotator, Infrared headphone, ECS-NiCd charger, Diamond SWR meter, FT290R VHF allmode TRX, 144Mc-PA- 180Watts, Yaesu FT790R UHF TRX, 430Mc-PA-140Watts, ATV-1280Mc-TRX,Sat-RX, Packet Radio Laptop PC and a Keyer...

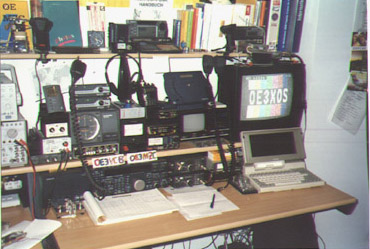

Station equipment of OE3MZC for HF,VHF,UHF and ATV
a versatile solution Diamond X7000

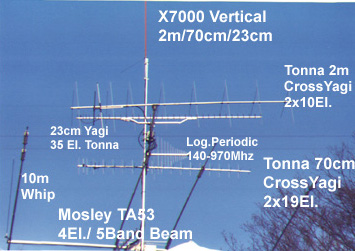

Tonna 144Mc 2x10el Yagi 10dbd
Tonna 435Mc 2x19el Yagi 16dbd
Tonna 1270Mc 35el horiz.-Yagi 18dbd
140-970mc Log Periodic  8dbd
Mosley TA53 ,4el. Beam 14-30Mc 7dbd
turn radius 4,5m
Elevation rotator, azimuth rotator
long wire antenna 1,8-30Mc Smart Tuner

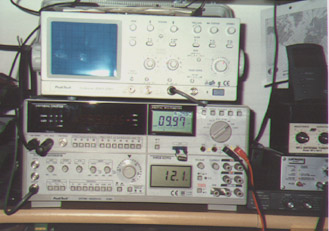

Peaktech Oscilloscope  2020Gn 20Mhz

Peaktech System 4100A
Frequency counter 0-1,3Ghz
Functiongenerator 0-2Mhz
Multimeter V,A,Cap,Logic
Power Supply 0-30Volt



Scope & Function Generator
