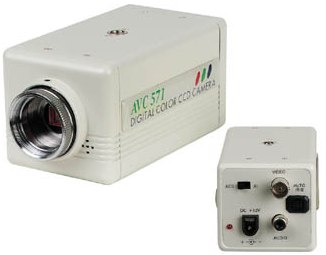

AVC 571 Digital color ccd camera AV571

AVC 571

Model AVC571

Features

  • 1/3" colour CCD camera
  • auto iris control
  • audio output

Specifications

  • Pick-Up element : 1/3" SONY colour CCD image sensor
  • number of pixels : 512(H) x 582(V) -PAL-
  • resolution : 400 TV lines
  • min. illumination : 1.0Lux / F2.0
  • S/N ratio : > 46dB (AGC off)
  • electronic shutter : 1/50 to 1/100000 sec.
  • auto iris : AI (video type for using with auto iris lens) / AES (auto electronic shutter) switchable
  • BLC function : auto detect
  • white balance : auto
  • microphone : high sensitivity
  • load impedance : 75ohm
  • lens : no lens
  • power source : DC 12V ± 10%
  • current consumption : 250mA
  • dimensions : 95 x 56 x 52mm
  • weight : 270g

8.0 mm F1.6 usually or Sony TV lens 1:1.8 16 mm
