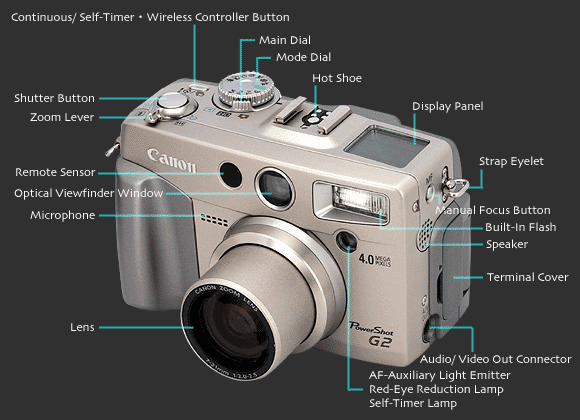

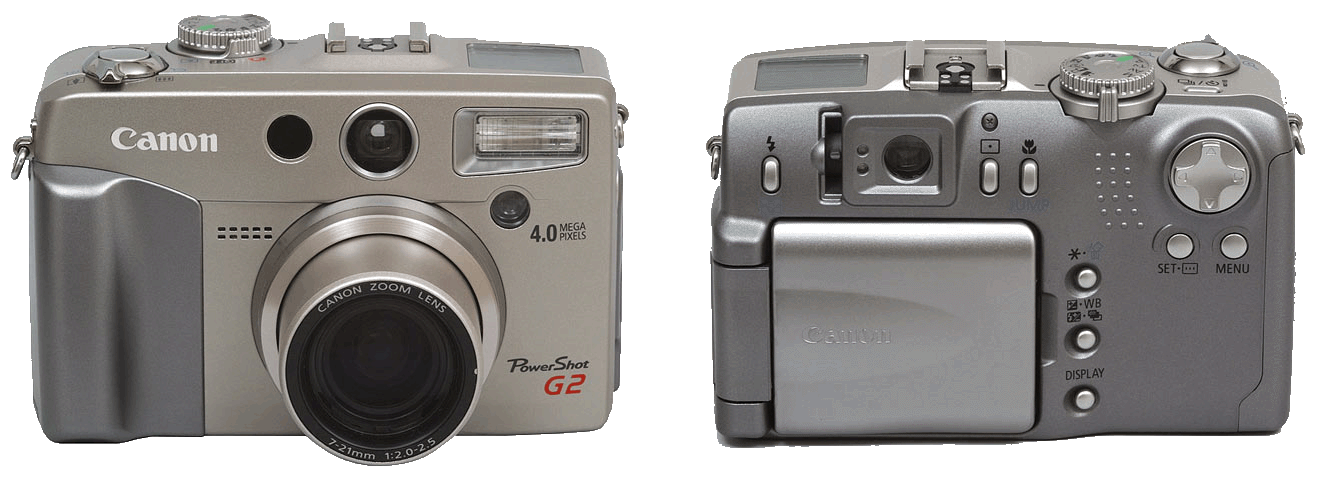

PowerShot Canon G2

Camera effective pixels :

Approx. 4-million-pixels

Image sensor :

1/1.8 inch CCD Approx. 4.1-million-pixels (total)

Lens :

7 (W) - 21 (T) mm (35mm film equivalent : 34 - 102 mm)
F2.0 (W) - F2.5 (T)

Digital zoom :

Up to approx. 3.6 times (Up to approximately 11 times in combination with the optical zoom)

Optical viewfinder :

Real-image optical zoom viewfinder
Field of view approx. 84 %

LCD monitor :

1.8 inch, low-temperature polycrystalline silicon TFT color LCD
Field of view 100 %

Autofocus method :

TTL autofocus (continuous or single)
Focus lock and Manual focus are available

Focusing points :

Switchable (Center or 3 selectable positions)

Focusing range :
(from tip of the lens barrel)

Normal AF :	70 cm - infinity (2.3 ft. (T) - infinity)
Macro AF :	6 cm (W)/ 20 cm (T) - 70 cm (2.4 in. (W)/ 7.9 in. (T) - 2.3 ft.)
Manual focus :	6 cm (W)/ 20 cm (T) - infinity (2.4 in. (W)/ 7.9 in. (T) - infinity)

Shutter :

Mechanical shutter + electronic shutter

Shutter speeds :

15 - 1/1000 sec.
15 sec. shutter is available in Shutter-Priority mode or Manual mode
High-speed shutter setting of 1/1000 sec. is available only at F8 aperture setting
Slow shutter speeds of 1.3 sec. or more operates with noise reduction

Light metering method :

Evaluation, Center-weighted averaging or Spot (Center or AF Point)

Exposure control method :

Program AE, Shutter-priority AE, Aperture-priority AE or Manual exposure control
AE lock is available

Exposure compensation :

+- 2.0EV (in 1/3-stop increments)
Auto exposure bracketing (AEB) is available

Sensitivity
(equivalent film speed) :

Auto, ISO 50, ISO 100, ISO 200 and ISO 400 equivalent
(In Auto mode, camera automatically adjusts sensitivity in the range of ISO 50 to ISO 100 equivalent)

White balance :

TTL auto white balance, pre-set white balance (available settings: Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H or Flash) or Custom white balance

Built-in flash :

Operating modes :	Red-eye reduction auto, Auto, Red-eye reduction On, On or Off
Flash range :	70 cm - 4.5 m (2.3 ft. - 14.8 ft.) (W) 70 cm - 3.6 m (2.3 ft. - 11.8 ft.) (T) (When sensitivity is set to ISO 100 equivalent)

Terminals for external flash :

Sync-terminals at accessory shoe
Use of following external flashes is recommended :
Canon Speedlite 220EX, 380EX, 420EX, 550EX and Macro Ring Lite MR-14EX

Flash exposure compensation :

+- 2.0EV (in 1/3-stop increments), FE lock selectable

Shooting modes :

Auto
Creative zone :	Program, Shutter speed priority, Aperture priority and Manual
Image zone :	Pan-focus, Portrait, Landscape, Night scene, Color Effect, Stitch Assist and Movie

Continuous shooting :

	Approx. 1.5 image/sec.
	Approx. 2.5 image/sec.

(Large/ Fine mode with LCD viewfinder off)

Self-timer :

Activates shutter after a 10-sec. delay

Wireless control :

Shooting and playback are available (wireless controller is included in the camera kit)
When shooting, images is captured 2 seconds after shutter button pressed

PC-connected shooting :

Available (Exclusive software program is included in the camera kit)

Storage media :

CompactFlashTM (CF) card (Type I and Type II)

File format :

Design rule for Camera File system, DPOF-compliant

Image recording format :

Still images :	JPEG or RAW
Movies :	AVI (Image data: Motion JPEG, Audio data: WAVE [monaural])

JPEG compression mode :

Super fine, Fine or Normal

Number of recording pixels :

Still images :

Large :	2272 x 1704 pixels
Medium 1 :	1600 x 1200 pixels
Medium 2 :	1024 x 768 pixels
Small :	640 x 480 pixels

Movies :

320 x 240 pixels (approx 30 sec.)*

160 x 120 pixels (approx 120 sec.)*

Approx. 15 frames/second
* The figures in brackets represent the maximum length of one movie clip.

Playback modes :

Single/ Index (9 thumbnail images), Magnified (approx. 3x or 6x on build-in LCD monitor), Slide show or image output to direct printer (CP-10)

Languages :

12 languages available for menus and messages (English, German, French, Dutch, Danish, Finnish, Italian, Norwegian, Swedish, Spanish, Chinese and Japanese)

Interface :

Universal Serial Bus (USB), Audio/Video Output (NTSC or PAL selectable, monaural audio)

Power Source :

Rechargeable Lithium-ion battery (type: BP-511)
(included in the camera kit/ optional)
Rechargeable Lithium-ion battery (type: BP-512)
(optional)
AC adapter
(included in the camera kit)
Car battery adapter
(Optional Charge Adapter/ Car Battery Cable Kit CR-560 is required)

Operating temperatures :

0 - 40 degrees C (32 - 104 degrees F)

Operating humidity :

10 - 90 %

Dimensions (w x h x d) :

120.9 x 76.6 x 63.8 mm (4.8 x 3.0 x 2.5 in.)
excluding protrusions

Weight :

Approx. 425 g (15 oz.) (camera body only)

Type :	Rechargeable lithium ion cell
Nominal voltage :	7.4 V
Nominal capacity :	1100 mAh
Charge cycles :	Approx. 300
Operating temperatures :	0 - 40 degrees C (32 - 104 degrees F)
Dimensions (w x h x d) :	38 x 55 x 21 mm (1.5 x 2.2 x 0.8 in.)
Weight :	Approx. 70 g (2.5 oz.)

Input voltage :	AC 100-240 V (50/60 Hz) 60 VA (100 V) - 75 VA (240 V)
Rated output :	9.5 V / 2.7 A
Operating temperatures :	0 - 40 degrees C (32 - 104 degrees F)
Dimensions (w x h x d) :	57 x 28 x 104 mm (2.2 x 1.1 x 4.1 in.)
Weight :	Approx. 180 g (6.3 oz.)

Power supply :	Lithium button battery CR2025
Operating temperatures :	0 - 40 degrees C (32 - 104 degrees F)
Dimensions (w x h x d) :	35 x 6.5 x 56.6 mm (1.4 x 0.3 x 2.2 in.)
Weight :	Approx. 10 g (0.4 oz.)
