Technical
Specifications & Features:

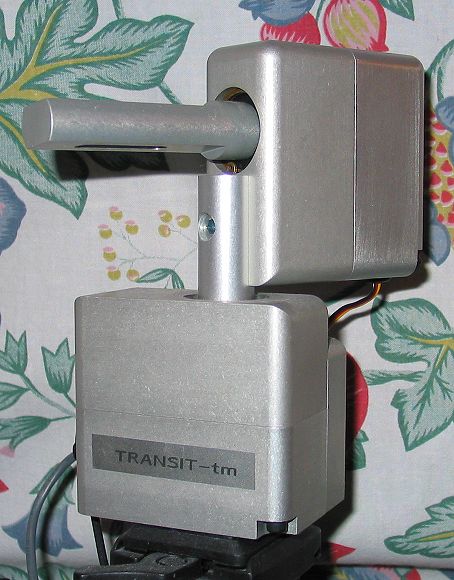

Transit offers maximum control speed of 240+
degrees/second; on-the-fly speed and position changes;
pan range of just under 180 degrees, (field of view is
camera dependent). Tilt range varies between 120 - to
nearly 180 degree range, depending on optics and camera
size. There are 2 versions of Transit RCM: the Standard
Version with maximum weight accommodation of 1.5 lbs (.65
kg); and the Heavy Duty Version with maximum weight
accommodation of 4.5 lbs (2.0 kg). The Robotic Camera
Mount works with our award-winning Webcam32 Software,
and you can also get sample Java and HTML/CGI-script
remote control scripts from our website
- Remotely controllable via RS-232/422/485
terminal, computer interface, or various web
interfaces
- Up to 8 Transits can be controlled by single
serial channel
- Closed-loop servo control for fast and accurate
camera positioning
- Controls for motorized zoom, focus and iris
- Small form factor
- Simple ASCII command set for program control
- Two versions - Standard Version with Maximum
Rated Payload of 1.5 lbs (.65kg); Heavy Duty
Version with Maximum Rated Payload of 4.5 lbs
(2.0kg)
- Maximum Speed: over 240 degrees/second
- Acceleration/Deceleration: on-the-fly position
changes
- Pan Range: Nearly 180 degrees (field-of-view
depends upon optics)
- Tilt Range: Nearly 180 degrees (may be limited by
camera size) size)
- CGI example code for web developers posted on
Product Support section of this website
Software command set(abridged):
- Set serial port to 9600 baud, 8 bit, no parity, 1
stop bit
- Position Pan Motor: 'A' followed by ASCII '0' to
'127' followed by <cr>
- Position Tilt Motor: 'B' followed by ASCII '0' to
'127' followed by <cr>
- ..... example A1<cr>B1<cr> points a
camera up and fully counterclockwise (relative to
overhead angle) axis), while
A127<cr>B127<cr> points the camera
down and fully clockwise.
A64<cr>B64<cr> will approximately
center the unit
- Set acceleration / deceleration: 'D' followed by
ASCII 1-127. (1 is fastest). Speeds 1, 2, and 3
are recommended for normal usage, while anything
higher than 3 can be used for quiet motion, or
for heavier cameras.
Physical / Electrical
- Weight: 1.5 lbs (0.7kg)
(Shipping weight 4 lbs.)
- Dimensions: 5.75" wide x 6.75" high x
2.06" deep
- Camera mounting: Hole for 1/4-20 standard screw
- Pan-tilt unit mounting: Bottom 1/4-20 mounting
hole
- Power: 5VDC input @ 3.0A - included
- Outputs: 1 x RJ11 RS232C (for Robotic's Compass
MVP), 3 x 0-5VDC @ 50ma each for zoom, focus and
iris motor controls
- (note: zoom, focus and iris motor controls may
require optional wiring harness, interface
circuitry and separate power)
Specifications subject to change without notice.
Order Robotic Camera Mount Online Now Only
£249.00:
|
|
Can you recommend a
camera with the Robotic Camera Mount?
There isn't a camera on the marketplace that we've come
across that does not work with the Robotic Camera Mount.
In general, you should look at specifications for light
sensitivity and horizontal resolution to match to your
application, but as long as the camera can be mounted
with a 1/4"-20 bolt, it should be compatible.
With which operating systems is Robotic Camera
Mount compatible?
Robotic Camera Mount has been successfully tested on
Windows 95/98/NT WinXP and Linux operating systems. Given
the simple nature of the serial interface and command
set, Robotic Camera Mount should be compatible with any
operating system.
What software comes with Robotic Camera Mount?
Robotic Camera Mount comes with award-winning, Webcam32
software. Created in 1996, Webcam32 is the most mature,
robust and continually evolving webcam software on the
market. To learn more about Webcam32, visit the
"Webcam32" page on this site.
How far from my computer can I place Robotic Camera
Mount?
We've tested distances as far as 100ft using shielded
twisted pair for the serial connection and good quality
shielded video cable for the camera feed.
Is Robotic Camera Mount weatherproof?
Robotic Camera Mount is not weatherproof as shipped, but
we've used it very successfully outdoors with a
weatherproof dome.
What temperature/humidity ranges are recommended?
Robotic Camera Mount should operate without difficulty in
temperatures up to 90°F (32°C) with 0-90% humidity. In
more extreme conditions, Robotic Camera Mount's
limitations should match the limitations of the supporte
|
