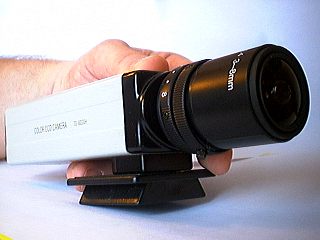

TS-6020-12 SONY Hyper HAD CCD



TS-6020-12 specification
Model TS-6020(DC+12V) / TS-6020L
(ACV Line Lock
Scanning system NTSC PAL
Image sensor (device) SONY Interline transfer Hyper HAD CCD
Image size 1/3" (approx. 4.8mm x 3.6mm)
Picture element Effective 510(H)x492V 500(H)x582V
Optical black Horizontal 3:in front.40 in black
elements Vertical 12:in front.2:in black
Chip size 6.0mm(H)x4.96mm(V)
Synchronizing system AC Voltage: LINE LOCK SyncDC
+12V: Internal Sync
Interlace 2:1 Interlace
Horizontal Resolution 420 TV Line
Aperture correction H aperture V aperture
Video output level 1.0V(p.p) (75ohms.composite)
Video S/N ratio More than 50dB(AGC off)
Minimum illumination 0.5Lx(F 1.2) AGC ON
White balance ATW large range:2400 K to 11000K
Electronic iris ON/OFF, manual switching
Back Light Compensaton Active Histogram plus windows weight BLC
Gamma 1
Camera mount ¼"-20 UNC (top/bottom selectable)
Light control Electronic iris (indoor use) or optional auto iris lens
Auto Exposure (AE) system Auto electronic iris.1/50(1/60).
1/100,000 sec.
Electron ic iris rangs
(incondescent lighting)
2 Lx to 100,000 Lx...(F1.2)
2.7 Lx to 130,000 Lx...(F1.4)
Video irin output Video+12V DC(Max.50mA)Video



  signal(hi.Z)GND
Audio Output(Optional) 150mV Vp.p/10Kohm RCA Connector
Auto iris Sockets Video iris Pin1: + V Pin2:VIDEO Pin3.Gnd Pin 4 Gnd
DC iris Pin1:Black Pin2:Red Pine3:Green Pin4:Yellow
Environmental conditions
Operating temperature
Temperature:10°C to+50°C,Hunidity:
within 90%RH
Storage temprature Temperature:20°C to+70°C,Hunidity:
within 70%RH
Lens mount

Optional:

CS/C mount(C mount using adaptor supplies)

objektiivi 1/3'', varifocal 3.5 - 8 mm, F1.4, manual iris

Power requirement TS-6020L:AC110V/230V/60Hz.AC230V/50Hz
TS-6020DC+12V
Power consumption (approx.) 2.3W
Dimensions (approx.) 128(L)x50(W)x43(H)mm
Weight (approx.) 300g
