A-LINK IPC1 IP-CAMERA WLAN
Specification
Product specification :
• Image Sensor:
- Image sensor: 1/4 Color CMOS Sensor
- Resolution: 640x480
- Minimum illumination: 0.5 LUX
• Lens:
- Lens type: Board lens
- Aperture: 2.6
- Focus Length: 4.6mm
- View angle(diagonal): 60degree
• Image Processing:
- Compression: MJPEG
- Auto exposure control
- Auto white balance
- Auto gain control
- Image resolution:
- VGA (640x480)
- QVGA (320x240)
- QQVGA (160x120)
• System:
- Network prosessor: ARM9
- System ROM: 4Mb flash
- System RAM: 16Mb SDRAM
- Power: DC 5V
- Power consumption: 6 watt Max.
- Operation temp: 0~45C
- Storage temp: -15~60C
• Communication:
- Ethernet: 1pcs RJ45 port 10/100Mb
- Wireless: 802.11b/g with external antenna(SMA)
- Supported protocols:
- TCP/IP, DHCP, FTP, HTTP, UPnP, SMTP, DNS,
DDNS, ICMP, PPPoE, UDP, NTP
• LED and Button:
- Power LED
- Link/act. LED
- Reset button: Push and hold 5 sec.
• Camera Features:
- System management: Web based, Application soft.
- User levels: Guest, General, Administrator
- Setup Wizard
- Image setting: Brightness, Sharpness, Saturation
- Support upside down and mirror
- Digital zoom: 3x
- Frame rate setting: 1-25fps / Auto
- Compression setting:
- Lowest, Low, Normal, High, Highest
- IP setting:
- Static, DHCP, PPPoE
- Email support:
- SMTP mail, scheduling, two destination Emails
- Time management:
- Manual, server and NTP
- Event management:
- Triggered by Motion detection or
according to schedule,
Image Upload/Send over Email, FTP
- FTP Upload: Scheduling
- Motion detection: 2 scalable windows
- IP Filter
- Wireless security:
- WEP 64 / 128 bit
- WPA (TKIP)
- WPA2
- LED control: Normal / Off
- Browser support:
- IE 6.0 or above
- Firefox (limitations)
- Safari (limitations)
• Software Features:
- Operating system support (software) :
- Windows 2000, XP and Vista
- View channel: 16 CHs / Cameras
- Record
- Playback
- Motion detection
- IPFinder: auto search IP address of camera in LAN
• Safety :
- CE, FCC, WEEE, RoHS

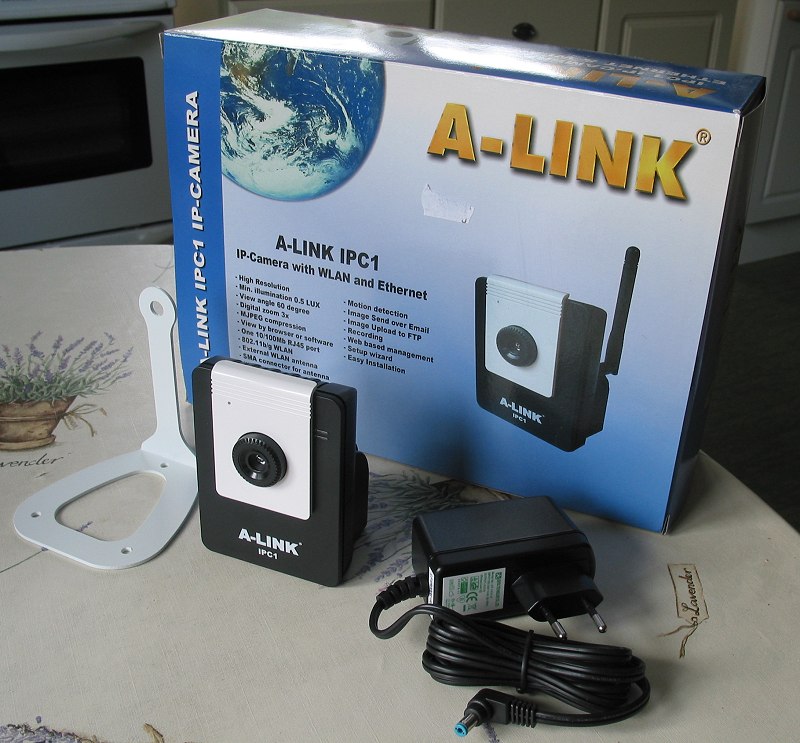

• Retail package contains :
- IP-Camera
- Antenna
- Camera station
- Application software CD
- Installation guides
• Ean / Order code :
- 64 18949 023037
A-LINK is a registered trademark of A-LINK.
http://www.a-link.com IPC1 specs UK 28.04.08
