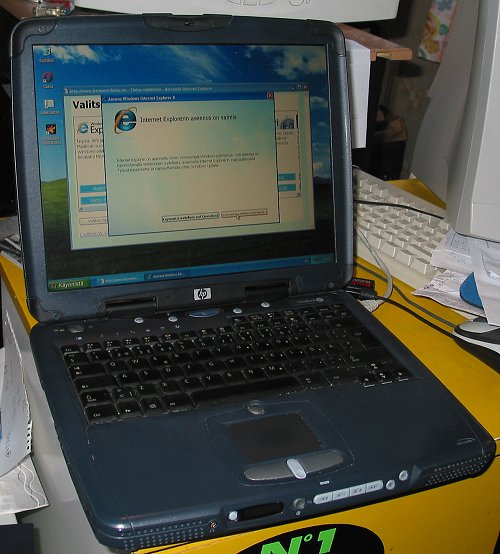

Omnibook XE3-GC (model F2116WT) Pentium III 700 Mhz

14.1 Display CPU Pentium PIII 700 Mhz

eli Lubuntu 14.04.1

manual pdf

Hardware specifications
Dimensions 13.03"x10.72"x1.59” (331x272.3x40.5mm) for 12.1"–14.1"
13.03"x10.72"x1.65" (331x272.3x42.0mm) for 15"
Weight 6.5lbs (3.0kg) with 12.1” TFT LCD/LiIon battery/FDD/CD-ROM/64MB/HDD
CPU Intel PIII/Celeron uPGA2 with SpeedStep (PIII only)
100MHz FSB
Chip Set Intel 440ZXM-100
Main Memory 100MHz SDRAM (PC100)
Maximum memory upgrade to 256MB by two 128MB SODIMM (144-pin/3.3V)
modules in two 1.25” slots
Hard Disk Drive 9.5mm, 2.5" HDD
PCI Bus Master Enhanced IDE
Supports Ultra DMA/33
Floppy Disk
12.7mm, 1.44MB (3-mode)
CD-ROM/DVD 12.7mm, 24X CD-ROM or 8X DVD
Display 800x600 SVGA TFT 12.1” LCD
1024x768 XGA TFT 13” LCD
1024x768 XGA TFT 14.1” LCD
1024 x768 XGA TFT 15” LCD
Video chip S3 Savage/IX
– Integrated 4MB SGRAM
– Supports AGP 2X mode
– 128-bit, single-cycle 3D architecture
– Simultaneous LCD/CRT, LCD/CRT/TV capability
– Optimized hardware motion compensation
– New high-performance 128-bit 2D engine
– Integrated single-channel 110MHz LVDS interface
– Integrated NTSC/PAL TV encoder

PCMCIA TI 1420 (two slots)
HPC card 95 supporting one type III or two type II sockets
PCI power management compliant
ACPI 2.0 compliant
PCI local bus specification Rev. 2.2 compliant
3.3V core logic with universal PCI interface compatible with 3.3V and 5V PCI
signaling environments
No ZV support
Keyboard NS 87570 K/B controller
– 87/88/90 keys with 101/102 key emulation
– Supports Windows keys and Application key
– Standard pitch, 3.0mm travel length
– Spill-proof
Pointing Device 2-button design with on/off and scroll up/down buttons
CCR enabled for Chinese localization only
Audio ESS Allegro (1988)
– Integrated AC’97 CODEC
– HSP modem interface via MC’97 link
– Supports wake up on ring.
Modem CODEC ESS 2828 on mini-PCI slot
CD Player OZ-163 controller
Supports CD-play while system is off
Battery LiIon: 9 cells, 5400mAh/11.1V, 18650 size
NiMH: 9 cells, 4000mAh/10.8V, 17670 size
2.2 hrs charging time
Smart pack, SM bus
AC Adapter 60-65W universal AC adapter
90-264V AC, 47-63Hz
I/O Ports Serial port: 9 pins (RS232), 16550 compatible
High-speed bidirectional parallel port: 25 pins, EPP/ECP capability
VGA port: 15 pins with hot plug/unplug CRT detect
PS/2: 6 pins, for keyboard, keypad or PS/2 mouse (Y adapter compatible)
Microphone-in, headphone-out jacks
Internal microphone
Docking port: supports optional simple port replicator
One FIR port
Two USB ports
DC-in jack
Two Polk Audio stereo speakers
Composite TV-out

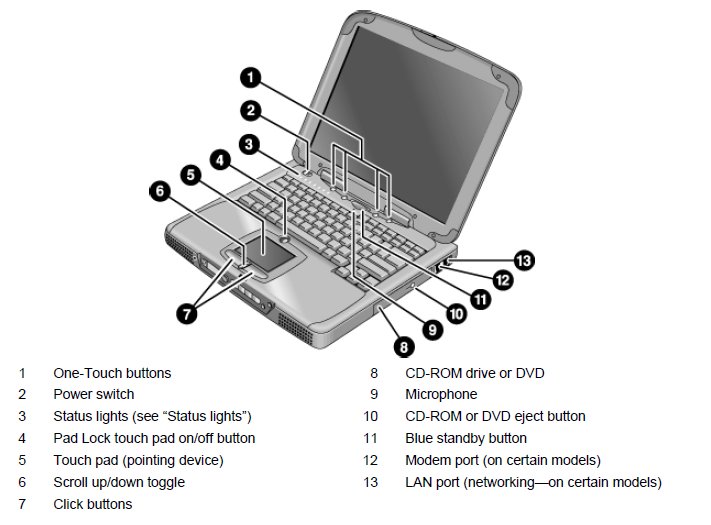

Controls Power switch
Lid switch
Reset off button
Sleep button
4 user-programmable One-Touch buttons
CD-Player on/off switch
CD-Player buttons: Previous, Play/Pause, Stop/Eject, Next, Volume-Up,
Pad Lock touch pad on/off button
Scroll up/down toggle
Status panel mode button
Status LEDs Caps/Num/Scroll lock LEDs (green)
Pad Lock touch pad on/off LED (amber)
Power status LED (dual color): power on green; standby amber
Battery charging LED: charging amber; fully charged green; abnormal red
HDD, FDD, CD-ROM activity LEDs (green)
LCD dot matrix display (with 2 backlight LEDs)
– When the unit is on, the display shows: power status, battery charging
status, date, or time
– When the unit is off and in CD-Player mode, the display shows, in addition:
sleep status, track number, and time elapsed
Backlight LEDs (green) for CD-Player buttons
CD-Player on/off LED (green)
2 LEDs on RJ-45 connector
Options 32/64/128MB PC-100 SODIMM: 3.3V, 144-pin, SDRAM
