Period O/B
|
:
|
28th of
September 2005 & 29th of September 2005.
|
|
Function O/B
|
:
|
Update DP FMEA.
|

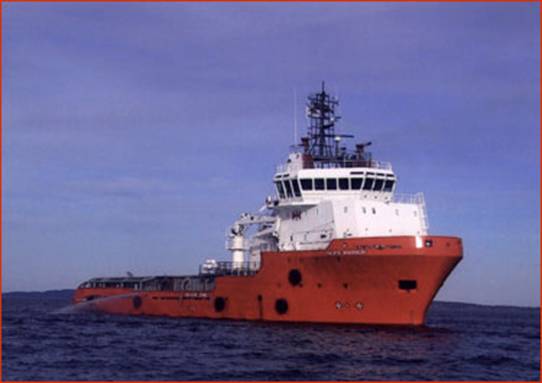

OSV Pacific Warrior left the dock of Lissabon in October,
2005.
The
Basic Function of this Vessel : Offshore Support.
Main Area of Operations : Equatorial Guinea, West
Africa.

|
|
General Specifications
|
Type of Vessel
|
Offshore Support / Anchor Handling Tug
|
|
|
Nationality (flag) / Port of Registry
|
Singapore
|
|
Official Number
|
389096
|
|
Callsign
|
S6GS6
|
|
IMO Number
|
9250012
|
|
Classification DNV
|
DNV +1A1, AUTO, E0, SF, DP, TUG, no
ice, DK(+), HL(2.5)
|
|
Built
|
Aker Brevik Construction Yard A/S,
Norway,
As built : 12th March
2003, Hull Number 22
|
|
Gross Tonnage
|
2327
|
MT
|
|
Net Tonnage
|
751
|
MT
|
|
Summer Displacement
|
4422
|
MT
|
|
Summer Dead Weight
|
2397
|
MT
|
|
Length Overall
|
68.95
|
m
|
|
Length Between Perpendiculars
|
62.64
|
m
|
|
Moulded Breadth
|
15.50
|
m
|
|
Maximum Moulded Draft
|
5.99
|
m
|
|
Moulded Design Draft
|
5.00
|
m
|
|
Depth Main Deck
|
7.00
|
m
|
|
Maximum speed
|
15.5
kts
|
|
|
Service speed
|
10.9
kts
|
|
Deck Surface
|
468 m2
|
|
|
Deck Load
|
800 m/T
|
|
Bollard Pull
min
|
120.00 tns
|
|
MMSI Number
|
563148000
|
|
|
Sat-C
|
456314810
|
|
2 x Bergen Diesel Main Engine
Type BRM-9
|
2 x 3975 kW / 5400 BHP @ 750 RPM
|
|
|
2 x Shaft
Generator
Type AVK DSG74L2-4W
|
2 x 1280 kW / 1600 kVA @ 1800 RPM
|
|
2 x Caterpillar
Auxiliary Engine
Type 3406
|
2 x 320 kW @ 1800 RPM
|
|
|
1 x Caterpillar
Emergency Generator
Type 3304
|
1 x 65 kW @ 1800 RPM
|
|
|
2 x Bow Tunnel Thruster,
make Ulstein / Rolls-Royce,
type 150TV
|
2 x 590 kW
|
|
|
2 x Stern Tunnel Thruster,
Make Ulstein / Rolls-Royce,
type 150TV
|
2 x 590 kW
|
|
Gearbox
|
2 x Ulstein 1500 AGSC KP/500ND
|
|
Main Propellers 2 x 4 bladed CPP
|
Blade diameter : 3700 mm
|
|
Rudders
(Operated by Tenfjord Stearing Gear)
|
2 x Ulstein, high lift flap
|
|
Alstom Dynamic Positioning
|
1 x Sonardyne USBL HPR (a part of
PME),
2 x DGPS & 1 x Cyscan MkII
Fanbeam
|
|
|
