Period O/B
|
:
|
3rd of
October 2005 - 21st of October 2005.
|
|
Function O/B
|
:
|
Witness DP FMEA
Trials.
|

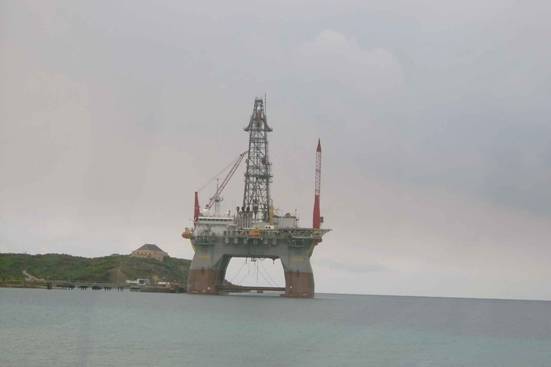

During the DP FMEA Trials, SSDV Pride Portland was
located at the anchorage of Vitória in Brazil.
The
Basic Function of this Vessel : Drilling.
Main Area of Operations : Offshore Vitória,
Brazil.
|
|
General Specifications
|
Type of Vessel
|
Drilling Unit
|
|
|
Nationality (flag)
|
Bahamas
|
|
Port of Registry
|
Nassau
|
|
Official Number
|
99000066
|
|
Callsign
|
C6FV7
|
|
IMO Number
|
8764341
|
|
Classification DP AAA – IMO Class 3
(Lloyds Register of Shipping)
|
O.U. + 100A1, +LMC, UMS, DP
(AAA), PC, Drill, OIWS, Semi Submersible, Self Propelled Drilling Vessel
|
|
Builder
|
Halter Marine Pascagoula Inc. of
U.S.A.,
Design DeHoop Megathyst Class,
YOB 2004
|
|
Hull Number
|
1829
|
|
Length Overall Underwater Pontoons
|
76.00
|
m
|
|
Breadth Overall Underwater Pontoons
|
54.60
|
m
|
|
Length Overall Main Deck Box
|
73.30
|
m
|
|
Breadth Overall Main Deck Box
|
48.60
|
m
|
|
Depth Overall Main Deck Box
|
7.40
|
m
|
|
Depth of Underwater Pontoons
|
9.00
|
m
|
|
Width of Single Pontoon
|
14.40
|
m
|
|
Height from top of Underwater Pontoons to
U/S Deck Box
|
16.95
|
m
|
|
Light Transit Draught
|
7.75
|
m
|
|
Operational Draught
|
18.95
|
m
|
|
Scantling Draught
|
20.95
|
m
|
|
Survival Draught
|
13.15
|
m
|
|
Maximum Drilling Depth
|
25,000
|
ft
|
|
Water Depth
|
1,700
|
m
|
|
Air Draught (Keel to Crown)
|
97.23
|
m
|
|
Derrick Height
|
49.70
|
m
|
|
MMSI
|
311491000
|
|
|
AAIC
|
BE02
|
|
Inmarsat-C Tlx
|
431149110
|
|
Pedestal Crane
|
2 x Huisman – SWL 40T
|
|
|
Accomodations
|
115 persons
|
|
|
6 x Main Diesel Engine,
make Caterpillar 3612
DITA, type VEE
|
6 x 3300 kW / 4460 hp @ 900 RPM
each
|
|
|
6 x Main Generator, make Leroy Somer,
type LSA 51 AL 18/8p
|
6 x 4715 kVA / 6600V / 60 Hz
|
|
8 x Lips CPP Azimuth Thruster, L-type,
1500-250 NU, 4-blade
propellers
|
8 x 1600 kW [el. driven] @ 250
RPM
|
|
|
Kongsberg Simrad Dynamic Positioning
|
SDP 21 (+ 1 x SDP 11 backup)
|
|
|
VMS
|
Alstom design
|
|
|
Acoustic Reference Systems
|
2 x HiPap 500
|
|
DGPS Reference
|
3 Units + Inmarsat-B / Spotbeam & IALA diff.
|
|
Light Weight Taut Wire
|
1 x Mk VIII @ max. operating
depth 300 meter
|
|
