SSDV PRIDE RIO DE JANEIRO – C6FV5





Period O/B

:

18th of April 2005 – 25th of April 2005.

Function O/B

:

DP FMEA Surveyor.

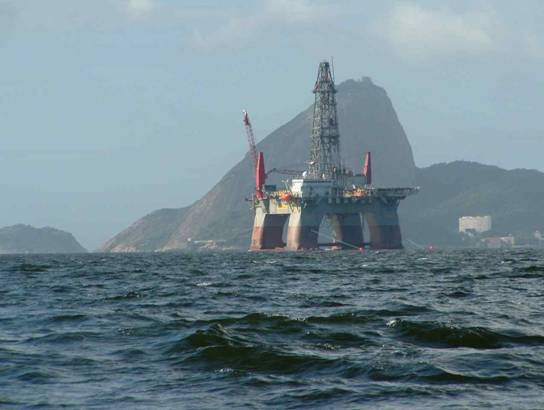

SSDV Pride Rio de Janeiro left the port of Rio de Janeiro for the Annual DP FMEA Trial

on April 18th, 2005 and did return in the port of Rio de Janeiro on April 25th, 2005.



The Basic Function of this Vessel : Drilling.



Main Area of Operations : Offshore Brazil.





General Specifications



Nationality (flag)

Bahamas



Port of Registry

Nassau

Callsign

C6FV5

IMO Number

8764339

Classification DP AAA – IMO Class 3
(Lloyds Register of Shipping)

O.U. + 100A1, +LMC, UMS, DP (AAA), PC, Drill, OIWS, Semi Submersible, Self Propelled Drilling Vessel

Design

De Hoop, Megathyst Class

Year built

2001



Gross Tonnage

   14559

MT

Net Tonnage

     4367

MT

Displacement (at transit draft)

   14139

MT

Displacement (at survival draft)

   17630

MT

Displacement (at operational draft)

   21233

MT

Variable Deck Load

     3859

MT



Waterdepth

     4921

ft

Operational Draft

         68.7

ft

Drilling Depth

  20,000

ft



Hull size

 249 x 179 x 85



Moon Pool size

   16 x  21



Length Overall

       76.00

m

Breadth Moulded

       48.60

m

Height water->wheelhouse @ transit draft

       29.65

m

Height water->wheelhouse @ survival draft

       25.20

m

Height water->wheelhouse @ operational draft

       19.40

m

Height water->main deck @ transit draft

       24.65

m

Height water->main deck @ survival draft

       20.20

m

Height water->main deck @ operational draft

       14.40

m



Distance wheelhouse->horizon at transit draft

       12

Nm

Distance wheelhouse->horizon at survival draft

       11

Nm

Distance wheelhouse->horizon at
operational draft

         9.7

Nm

Distance main deck->horizon at transit draft

       11

Nm

Distance main deck->horizon at survival draft

       10

Nm

Distance main deck->horizon at
operational draft

         8.4

Nm



Crane

2 x Huisman – SWL 40T





Accomodations

115 persons





6 x Diesel / Electric Caterpillar, type D-3612

3300 kW @ 900 RPM each





8 x Lips CPP Azimuth Thrusters, L-type,

1500-250 NU, 4-blade propellers, 250 RPM

1600 kW each





MMSI

311489000



Inmarsat-C        Tlx

431148910



Kongsberg Simrad Dynamic Positioning

SDP 21 (+ 2 x HiPap 500 & 3 x DGPS)
