DSV ACERGY OSPREY – ELVE9





Period O/B

:

8th of March 2006 - 12th of March 2006.

Function O/B

:

Witness Annual DP FMEA Trial & Update FMEA.

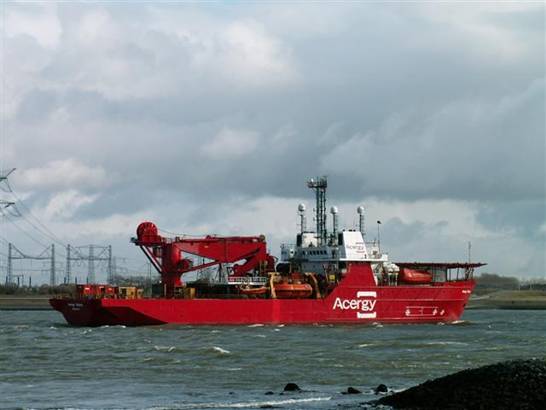

DSV Acergy Osprey left the port of Cork on the 12th of March 2006.

The Basic Function of this Vessel : Diving and Construction Support.



Main Area of Operations : North Sea.





General Specifications



Type of Vessel

Diving and Construction Support



Nationality (flag)

Liberia

Port of Registry

Monrovia

Callsign

ELVE9

IMO Number

8213392

Classification DNV

(Hull & Machinery)

+1A1, DSV, ISF & IIISF DYNPOS AUTRO, SF,

E0 (ERN 99.99.99)

Built

La Seyne Sur Mer, France, 1984



Gross Registered Tonnage

  6254

T

Net Tonnage

  1877

T

Moulded Deadweight

  3104.1

T



Length Overall

  101.70

m

Length between Perpendiculars

    90.14

m

Moulded Breadth (Beam)

    19.60

m

Breadth (Incl. Sponsoons)

    21.62

m

Depth to 2nd forecastle Deck

    10.70

m

Depth to Main Deck

      8.00

m

Maximum Draft

      5.75

m



Clear Deck Space

Approx. 1100m2



Reinforced Deck Space to carry 5T/m2

900 m2



MMSI Number

636010844





6 x Crepelle Main Engine  (6 x 1290 kW)

      Type 8SN3LF

Generator Output: 1500 KVA / 1200 kW each,

660 V / 60 Hz



1 x Emergency Engine, Moteur “Poyaud”

      Diesel, SSCM 17700 Surgeres, France

      Type 12520 S25/E

Output Power 370 kW @ 1800 rpm



1 x Emergency Alternator,

      Type APM 51 B4, Tropicalise

Output Power 437 KVA / 450V / 60 Hz @

1800 rpm.   IP23



1 x Bow Tunnel Thruster

      Fixed pitch, variable rpm

590 kW



2 x Aquamaster Bow Azimuth Thruster

      Retractable, fixed pitch, variable rpm

1100 kW each

1 x Stern Tunnel Thruster

      Fixed pitch, variable rpm

590 kW

2 x Lips Stern Azimuth Thruster

      Fixed pitch, variable rpm

1620 kW each



Dynamic Positioning

Kongsberg Simrad Class III, SDP521 + SDP11

Acoustics

HiPap 500 & HiPap 350



Fanbeam

MDL Mk4

Taut Wires

LWTW Bandak Mk 12a & MPTW
