Period O/B
|
:
|
6th of
February 2006 - 10th of February 2006.
|
|
Function O/B
|
:
|
Witness Annual DP
FMEA Trial & IMCA CMI / MSI.
|

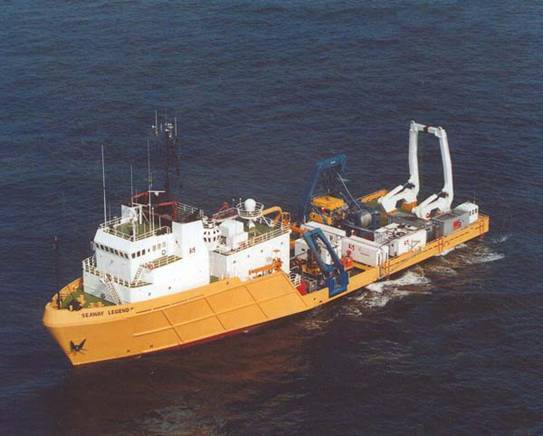

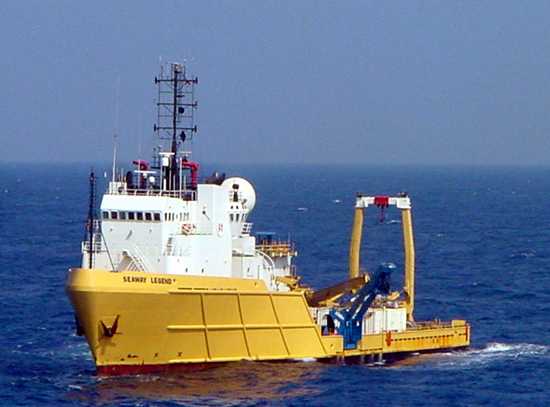

OSV Acergy Legend left the port of Lagos on the 10th
of February 2006.
The
Basic Function of this Vessel : Offshore Support.
Main Area of Operations : Nigeria, West
Africa.
|
|
General Specifications
|
Type of Vessel
|
Submersible ROV & Diving Support
|
|
|
Nationality (flag)
|
U.S.A.
|
|
Port of Registry
|
New Orleans
|
|
Callsign
|
WCY8548
|
|
IMO Number
|
8502925
|
|
Classification ABS
|
+A1 Towing Services, Ice Class C,
AMS,
DPS-2
|
|
Built
|
Larose, L.A., 1985, Hull Number
130
|
|
Gross Registered Tonnage
|
497
|
T
|
|
Net Tonnage
|
338
|
T
|
|
Maximum Displacement
|
2708
|
Long Tons
|
|
Lightship Displacement
|
2025
|
Long Tons
|
|
Length Overall
|
72.50
|
m
|
|
Moulded Breadth (Beam)
|
18.90
|
m
|
|
Moulded Depth to Main Deck
|
5.00
|
m
|
|
Operating Draft
|
4.11
|
m
|
|
3 x EMD Main
Engine
Electro Motive T2001
Type 16-645-E7B
|
3070 SHP / 2290 kW each @ max.
900 rpm
|
|
|
3 x Eisenwerke Reintjes Reduction Gear
Type WGV 562
|
4019:1
|
|
3 x Main Propeller
|
Fixed Pitch @ maximum 224 rpm
|
|
2 x Caterpillar
Diesel Engine
Type 3408
|
2 x 334 kW @ 1800 rpm
|
|
|
2 x Detroit
Diesel Engine
|
2 x 334 kW @ 1800 rpm
|
|
4 x Kato
Brushless Generator
Type 23384, Model A233840001
|
4 x 300 kW / 375 kVA / 480 V /
451 A / 60 Hz
|
|
3 x Caterpillar Diesel Engine
Type 3512-D1
|
1189 HP / 887 kW each @ max. 1800
rpm
|
|
|
3 x Eurodrive Azimuth Thruster
Type diesel-driven Gill-Jet
|
6.5 T Force each
|
|
1 x Brunvoll Tunnel Thruster
Type CPP / Fixed Speed
|
Electric motor : 480V / 60 Hz /
441 kW
|
|
|
Dynamic Positioning
|
|
|
|
Acoustics
|
|
|
DGPS
|
|
|
Fanbeam
|
|
|
