Period O/B
|
:
|
9th of
April 2006 & 10th of April 2006.
|
|
Function O/B
|
:
|
Witness Annual DP
FMEA Trial 2006.
|

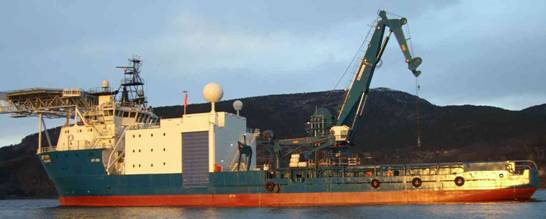

RSV Geosund was located in the port of Leirvik on the
10th of April 2006.
The
Basic Function of this Vessel : ROV Support.
Main Area of Operations : Offshore, Norway.
|
|
General Specifications
|
Type of Vessel
|
ROV Support
|
|
|
Nationality (flag)
|
Isle of Man
|
|
Port of Registry
|
Douglas
|
|
Callsign
|
ZNIN4
|
|
IMO Number
|
9232694
|
|
Classification DNV
|
+1A1, SF, E0, Dk(+), HL(2,8), Oil
rec, LFL,
DYNPOS-AUTR
|
|
Built
|
Simek Skipsverft AS, Flekkefjord,
Norway, 2001, Design type UT 745, Hull Number 98
|
|
Gross Registered Tonnage
|
3606
|
T
|
|
Net Tonnage
|
1543
|
T
|
|
Deadweight
|
4410
|
T
|
|
Length Overall
|
98.50
|
m
|
|
Length between Perpendiculars
|
89.85
|
m
|
|
Moulded Breadth (Beam)
|
18.80
|
m
|
|
Moulded Depth to Main Deck
|
7.60
|
m
|
|
Summer Draft
|
6.20
|
m
|
|
Maximum speed
|
15.0
kts
|
|
|
Service speed
|
13.0 kts
|
|
2 x Rolls Royce
Bergen Marine
Main Diesel Engine, type BRM-9
|
2 x 3975 kW @ 750 / 625 rpm
|
|
|
2 x Main Gear
box
Type Ulstein 1500 AGS
|
2 x PTO (Main Propeller &
Shaft Generator)
|
|
2 x Shaft
Generator
|
2 x 3000 KVA / 440 V @ 60 Hz
|
|
2 x Caterpillar
Auxiliary Diesel Engine
Type CAT-3412
|
2 x 620 kW @ 1800 rpm
|
|
|
2 x Caterpillar
Auxiliary Generator
|
2 x 738 KVA / 440 V @ 60 Hz
|
|
1 x Caterpillar
Emergency Diesel Engine,
Type 3304
|
1 x 77 kW @ 1800 rpm
|
|
|
1 x Caterpillar
Emergency Generator
|
1 x 131 KVA / 440V / 60 Hz
|
|
2 x Ulstein 4-bladed CPP
|
2 x 1600 AGCS-KP29
|
|
|
2 x Ulstein Stern Tunnel Thruster
Type 150-TV
|
736 kW each
|
|
1 x Ulstein Compass Azimuth Thruster
Retractable, type TCNS
73/50-180
|
|
|
2 x Ulstein CPP Bow Tunnel Thruster
Type 375-TV, variable
speed
|
883 kW each
|
|
Dynamic Positioning
|
Kongsberg Simrad SDP 21
|
|
|
Acoustics
|
HiPap 500
|
|
DGPS
|
Seatex-DPS 200 / Seapath 200
|
|
Fanbeam
|
MDL Mk4
|
|
