Period O/B
|
:
|
19th of
September 2006 – 24th of October 2006.
|
|
Function O/B
|
:
|
Witness DP FMEA
Proving Trial.
|

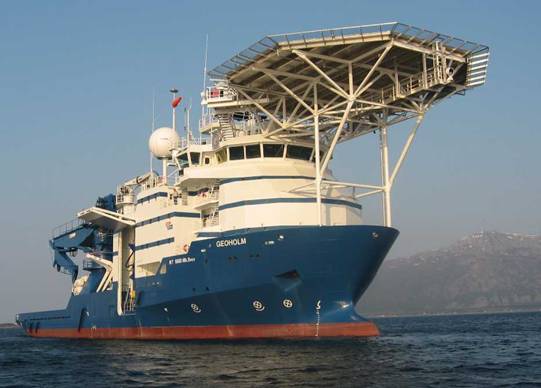

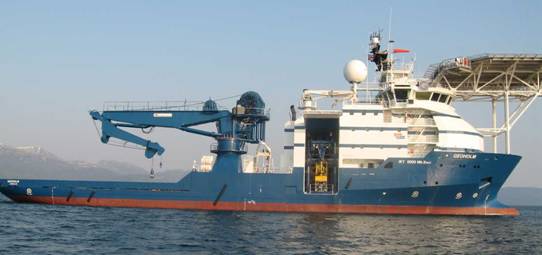

SCRV Geoholm was partly located offshore Bergen in
Norway during the Trial activities &
partly
located offshore Dundee in Scotland.
The
Basic Function of this Vessel : Supply, Construction
& ROV Vessel.
Main Area of Operations : Offshore Egypt.
|
|
General Specifications
|
Type of Vessel
|
Supply, Construction & ROV
|
|
|
Nationality (flag)
|
Isle of Man
|
|
Port of Registry
|
Douglas
|
|
Callsign
|
MLRT9
|
|
IMO Number
|
9339129
|
|
Classification DNV
|
+1A1, SF, E0, DK+, DYNPOS-AUTR, CLEAN,
HELDK-SH, COMF-V (3)
|
|
Built
|
2006, Søviknes, Norway, Hull
Number 145
|
|
Gross Registered Tonnage
|
4,454
|
T
|
|
Net Tonnage
|
1,336
|
T
|
|
Deadweight
|
3,215
|
T ~ 3,319 T 1 meter after trim
|
|
Displacement
|
4,150
|
T
|
|
Length Overall
|
85.65
|
m
|
|
Length between Perpendiculars
|
78.00
|
m
|
|
Moulded Breadth
|
19.70
|
m
|
|
Moulded Depth
|
7.45
|
m
|
|
Summer Draft
|
6.20
|
m
|
|
Maximum Draft Midships
|
6.80
|
m
|
|
Maximum Speed
|
15.5 kts
|
|
|
Service Speed (eco)
|
12.0 kts
|
|
4 x Wärtsilä Main
Diesel Engine
Type 9L20
|
4 x 1530 kW @ 900 rpm
|
|
|
4 x Siemens
Main Generator
|
60 Hz
|
|
2 x Caterpillar
Auxiliary Diesel Engine
Type 3512
|
|
|
|
2 x Leroy Somer
Auxiliary Generator
Type NRW 52 2 S55 / 4P
|
|
|
1 x John Deere Emergency
Diesel Engine
Type 6068TFM50
|
|
|
|
1 x Newage Stamford
Emergency Generator
Type UC.M274H1
|
|
|
1 x KaMeWa Ulstein
Bow Tunnel Thruster,
FPP, Variable Speed,
Type TT 2200 DPN FP
|
|
|
|
1 x Aquamaster Bow Azimuth Thruster,
FPP,
Variable Speed,
Vertical Retractable,
Type UL 1201 / 4940
|
|
|
1 x Ulstein Bow Azimuth Thruster - VROS,
CPP, Variable Speed,
Swing-Up Retractable,
Type TCNS 73 / 50 – 180
11065
|
|
|
2 x Aquamaster Contaz 15, type 2200 CRP
Azimuth Thruster, Main
Propulsion,
FPP, Variable Speed,
Contra-Rotating
Propeller
|
|
|
Dynamic Positioning
|
|
|
|
VMS
|
|
|
Acoustics
|
|
|
DGPS
|
|
|
Fanbeam
|
|
|
