Period O/B
|
:
|
31st of
March 2006 - 2nd of April 2006.
|
|
Function O/B
|
:
|
Witness Annual DP
FMEA Trial & Update FMEA.
|

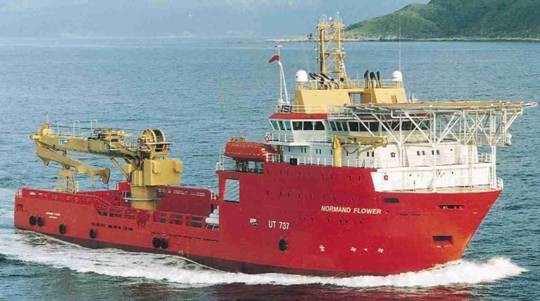

SFSV Normand Flower left the port of Skudeneshavn on
the 2nd of April 2006.
The
Basic Function of this Vessel : Sub-sea Field
Support.
Main Area of Operations : Offshore, Norway.
|
|
General Specifications
|
Type of Vessel
|
Multipurpose Sub-sea Field Support
|
|
|
Nationality (flag)
|
Isle of Man
|
|
Port of Registry
|
Douglas
|
|
Callsign
|
VQCW9
|
|
IMO Number
|
9249489
|
|
Classification DNV
|
+A101, SF, E0, Dk(+), HL(2,5), OILREC,
HELDK-SH, DYNPOS AUTRO
|
|
Built
|
Sřviknes Verft AS, September 2002,
Hull Number 135
|
|
Gross Registered Tonnage
|
5402
|
T
|
|
Net Tonnage
|
1656
|
T
|
|
Deadweight at draught 6,3m midships
|
4115
|
T
|
|
Length Overall
|
93.10
|
m
|
|
Length between Perpendiculars
|
81.95
|
m
|
|
Moulded Breadth
|
21.00
|
m
|
|
Depth to Main Deck
|
8.20
|
m
|
|
Design Draft
|
6.00
|
m
|
|
Maximum Draft midships
|
6.30
|
m
|
|
Trial speed @ draft 4.5 m
|
14.6
kts
|
|
|
4 x Ulstein
Bergen Main Engine
Type C-25:33L9A
|
4 x 2610 kW @ 900 rpm
|
|
|
4 x ABB Main
Generator
Type AMG 630L8
|
4 x 2480 kWe / 3175 kVA / 690V / 60 Hz
|
|
2 x Volvo Penta
Auxiliary Diesel Engine
Type Nogva Cummins KTA50-D(M1)
|
2 x 1291 kW @ 1800 rpm
|
|
|
2 x Stamford
Newage Auxiliary Alternator
Type HC.M734F
|
2 x 1365 kVA / 690V / 60 Hz @ 1800 rpm
|
|
1 x Stamford
Harbour Generator
Type HC.M534C1
(Engine = Scania D1-14-TS)
|
1 x 438 kVA / 690V / 60 Hz @ 1800 rpm
|
|
|
1 x John Deere
Emergency Generator
Type 6068TFM50
|
1 x 120 kVA
|
|
|
2 x Rolls Royce Bow Tunnel Thruster
Type 250 TV-SS, CPP,
variable rpm
|
2 x 883 kW
|
|
|
1 x Rolls Royce Bow Azimuth Thruster
Retractable, CPP,
variable rpm
Type TCNS 73/50-180
|
1 x 883 kW
|
|
2 x ABB Stern Azimuth Thruster
Fixed pitch, variable rpm
Type Compact Azipod
|
|
|
Dynamic Positioning
|
|
|
|
Acoustics
|
|
|
DGPS
|
|
|
Fanbeam
|
|
|
Radius
|
|
|
