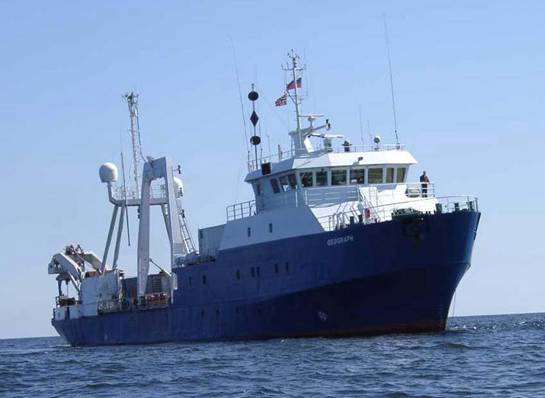

SRSV GEOGRAPH – JXPY3





Period O/B

:

27th – 29th of April 2006 & 19th of May 2006.

Function O/B

:

Full FMEA Study & Witness DP FMEA Verification Trial 2006.


SRSV Geograph was in the port of Bergen during the DP FMEA Verification Trial.

The Basic Function of this Vessel : Survey & ROV Support.



Main Area of Operations : Offshore & Survey areas.





General Specifications



Type of Vessel

Multi-purpose Survey & ROV Support



Nationality (flag)

NIS

Port of Registry

Bergen

Callsign

JXPY3

IMO Number

7208455

Classification DNV



+1A1, ICE-C, DYNPOS-AUT (not in class)

Built

Martin Jansen GmbH & Co. KG, Leer, Germany, 1972, Hull Number 102



Gross Registered Tonnage

  1035

T

Net Tonnage

    311

T

Deadweight

  1008

T



Length Overall

 57.91

m

Length between Perpendiculars

 53.76

m

Moulded Breadth (Beam)

 10.24

m

Moulded Depth to Main Deck

   6.35

m

Operational / Summer Draft

   3.99

m



Maximum speed

 11.0  kts



Service speed

 10.0  kts



MMSI Number

258107000





1 x B & W Alpha Main Diesel Engine

      Type 10 V 23 LU

1 x 920 kW / 1250 hp @ 800 rpm

With 2 x Brown Boveri BBC Turbo Charger



1 x Main Gear box

      Type 23V022

1 x PTO (Main Propeller) via shaft



2 x Cummins Auxiliary Engine

      Type NT-855-G6 Big Cam.3

2 x 295 kW @ 1800 rpm



2 x Stamford Auxiliary Generator

2 x 375 KVA / 276 kW / 440 V / 60 Hz



1 x Cummins Auxiliary Engine,

     Type KTA50-D(M1)

1 x 1397 kW / 1900 hp @ 1800 rpm



1 x Stamford Auxiliary Generator

     Type HCN734F1

1 x 1575 KVA / 1260 kW / 440V / 60 Hz



1 x Ulstein Main Propeller

Controllable Pitch @ 345 rpm



1 x Ulstein CPP Stern Tunnel Thruster

      El. Motor ABB, type MOO 315 M4FC

1 x 450 hp

El.Motor: 300kW/440V/[email protected] rpm

1 x Ulstein CPP Bow Tunnel Thruster

      El. Motor Nebb, Model VEPP 355 M4

1 x 600 hp

El.Motor: 355kW/440V/60Hz/[email protected] rpm



Dynamic Positioning

Kongsberg Simrad SDP 600



Joystick System

Simrad Robertson SJS 500

Acoustics

1 x HiPap 500

DGPS

1 x Trimble DSM132 & 1 x Raytheon NAV 398
